CDI 605/00 set
Below is a collection of pictures from the following item:
Type | CDI 605/00 |
Serial | 00461 |
12NC | 9022 626 05009 |
Prod. | AH02 9326 000026 |
Board | Mini-MMC |

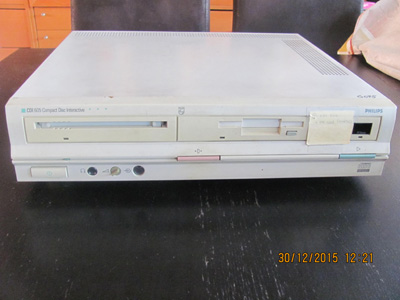

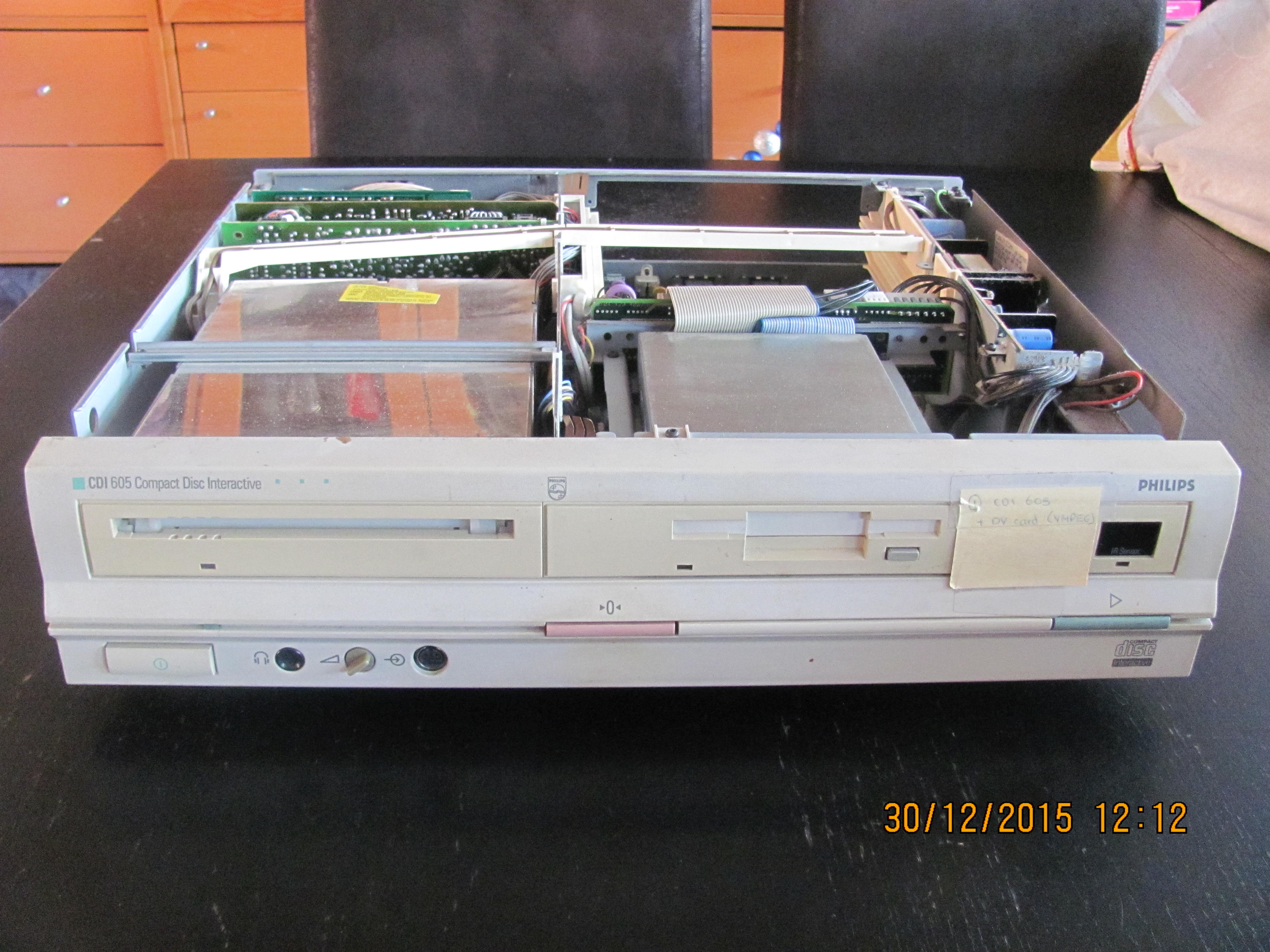

Front side view.

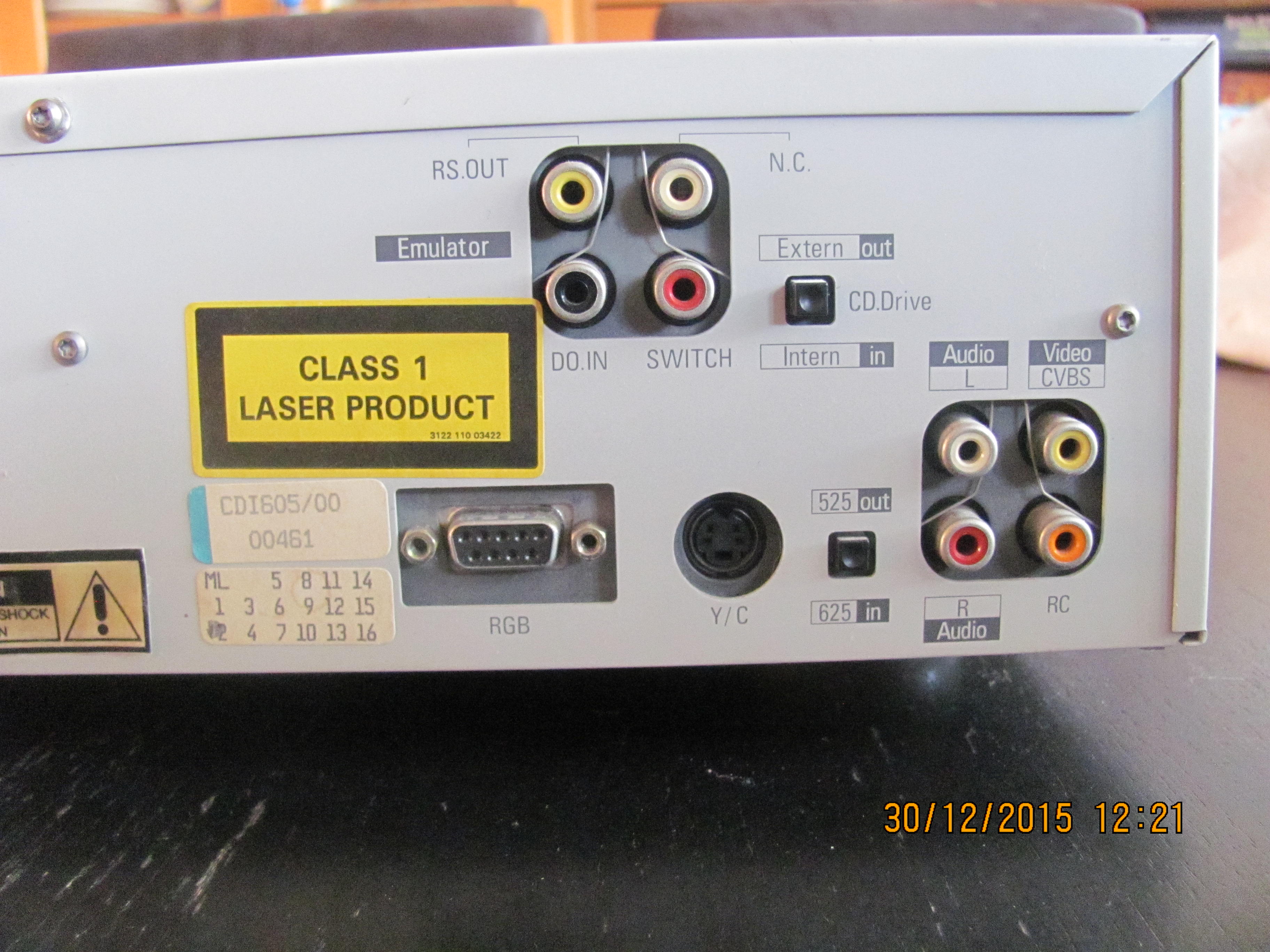

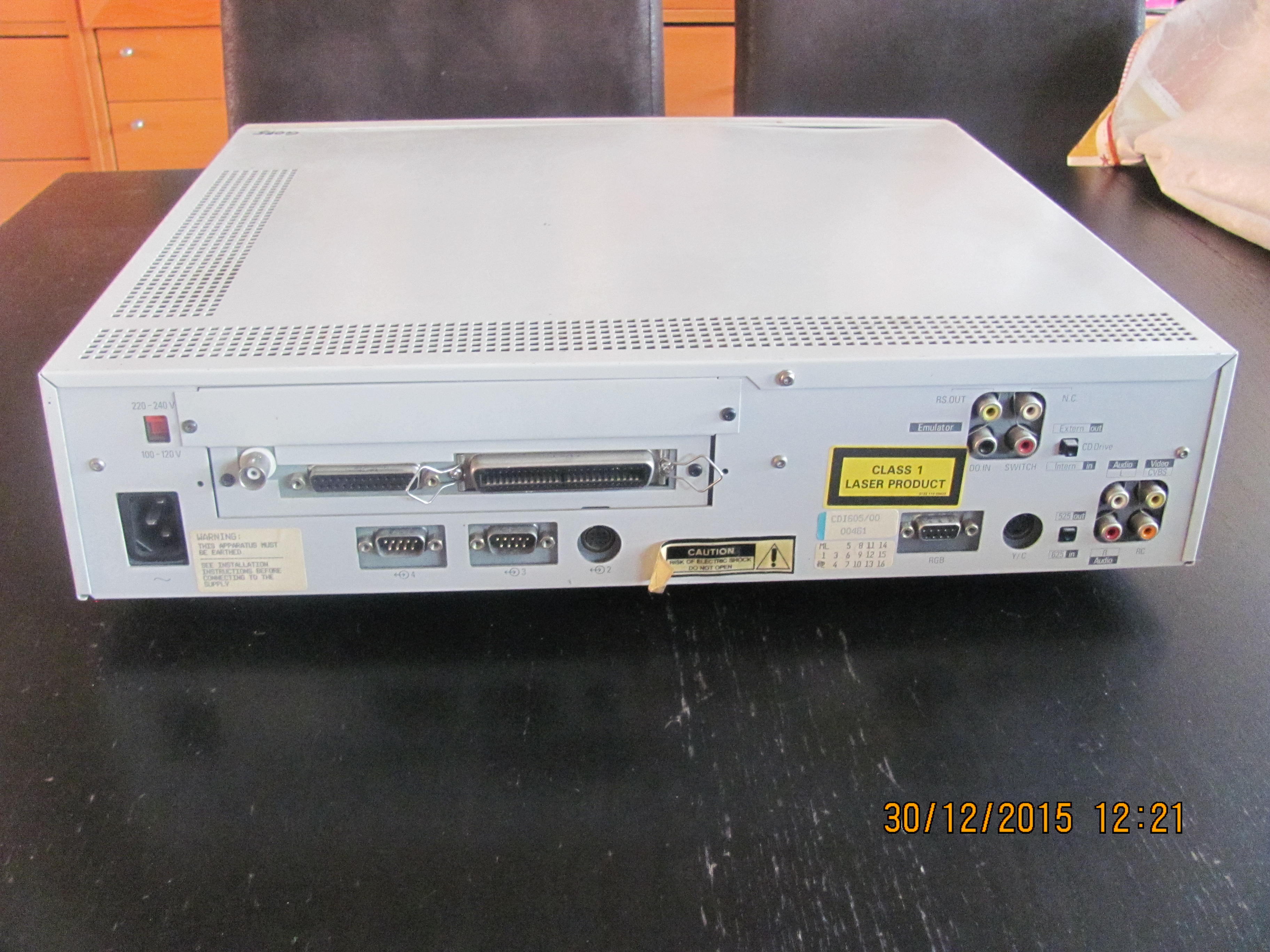

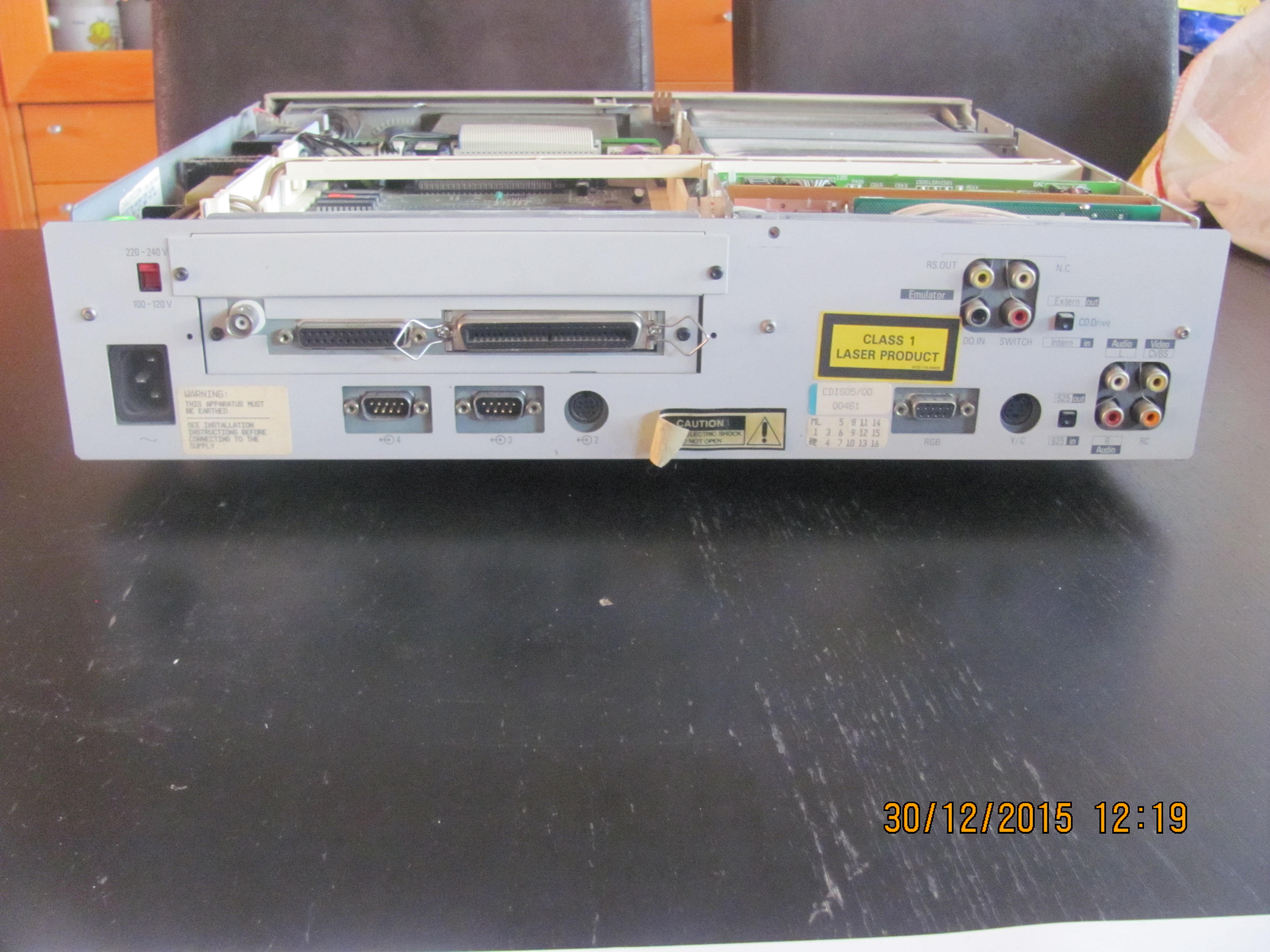

Back side view.

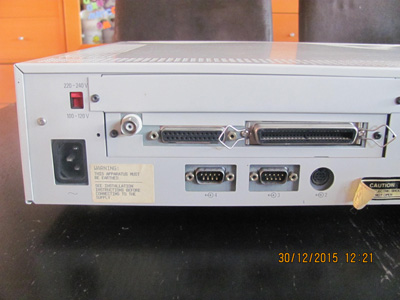

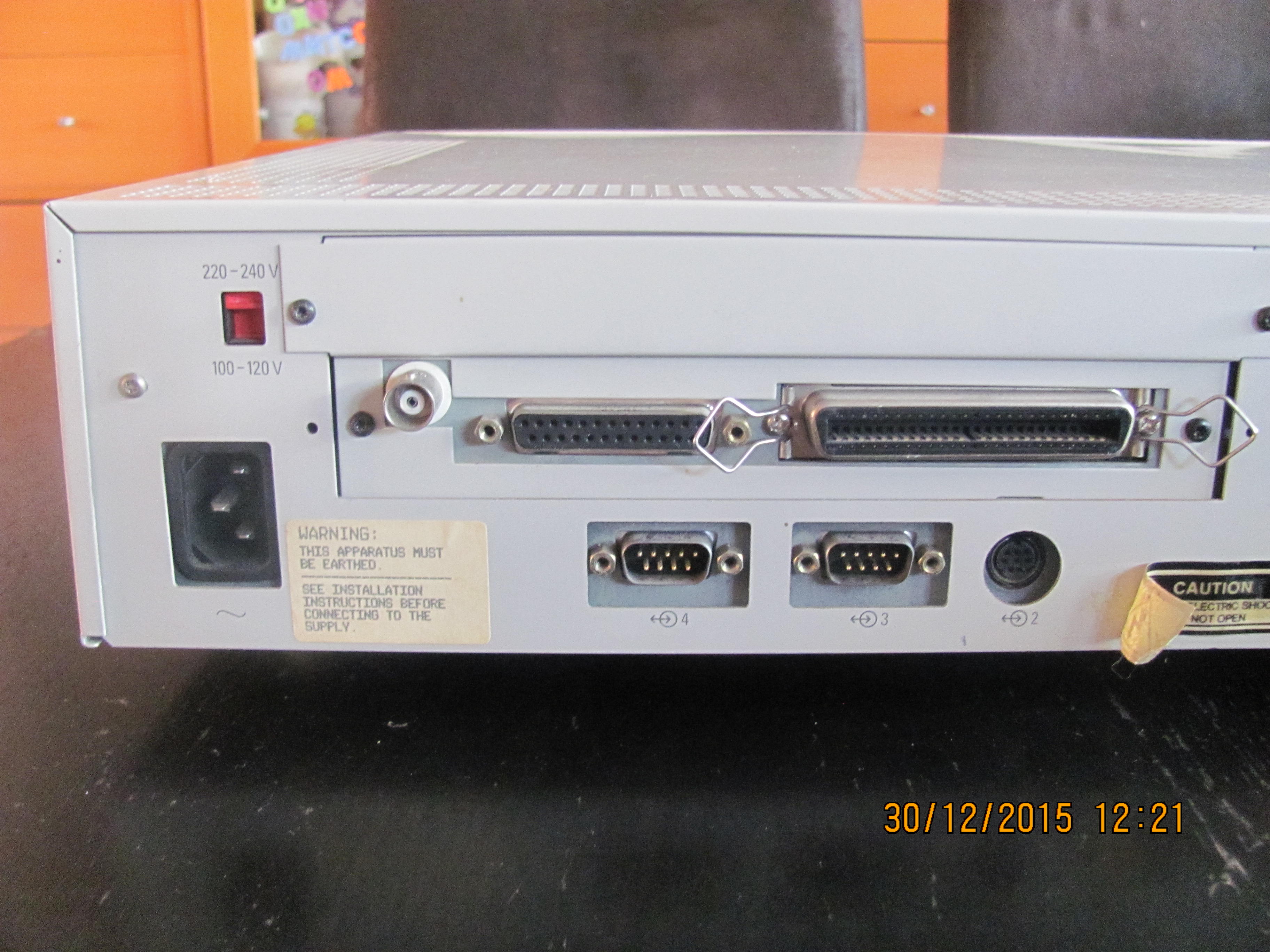

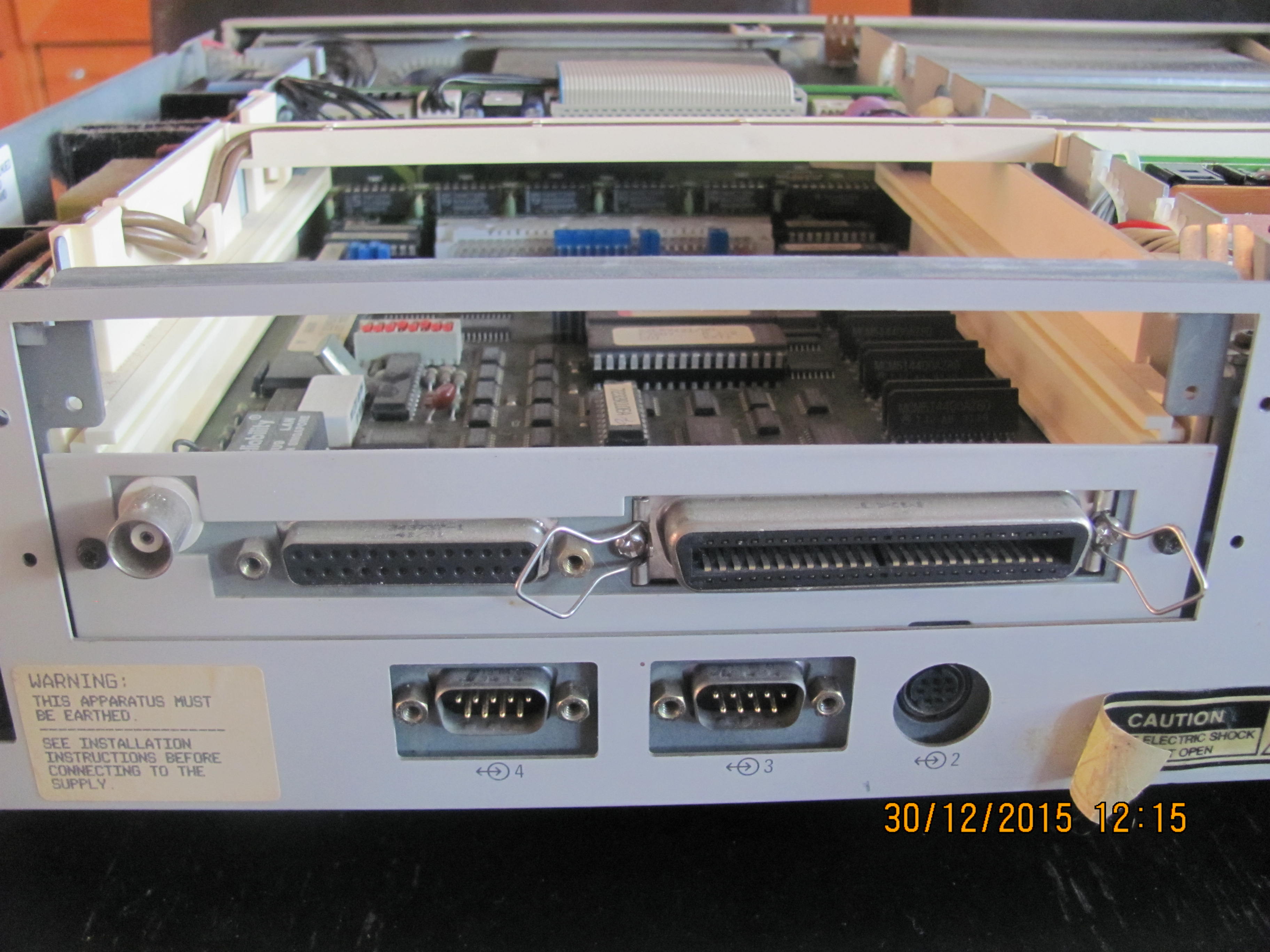

Left closup of back side view.

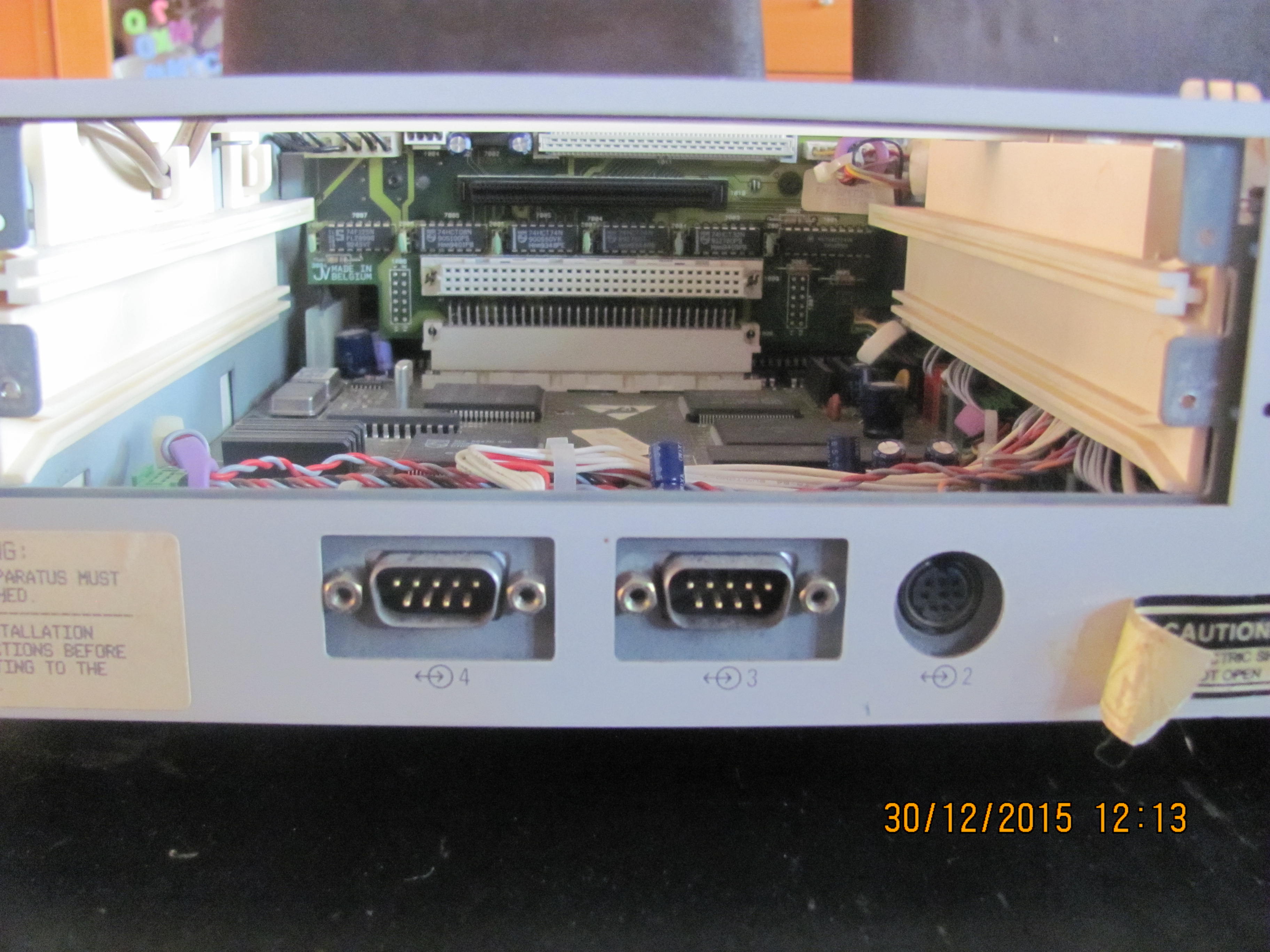

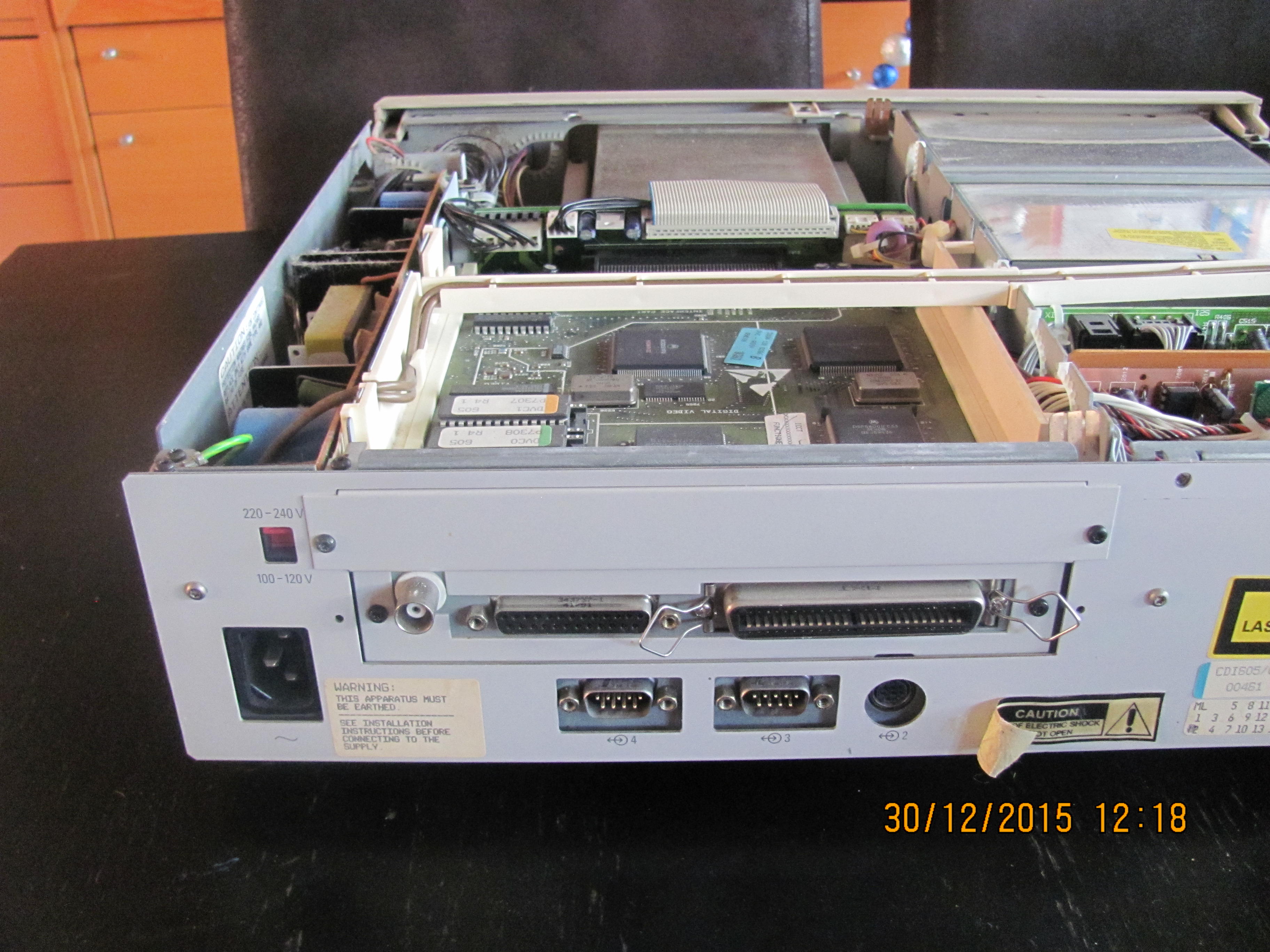

Right closup of back side view.

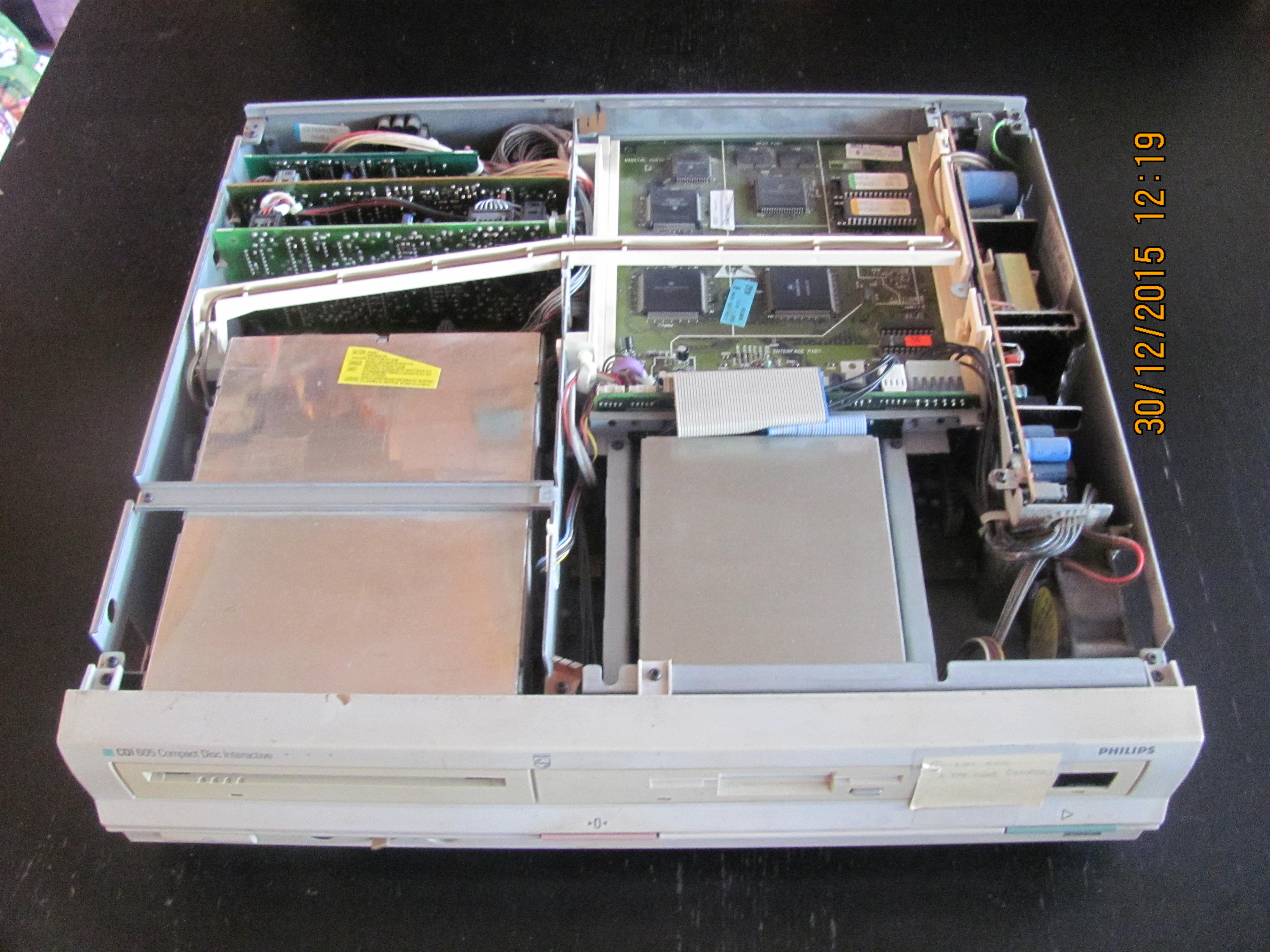

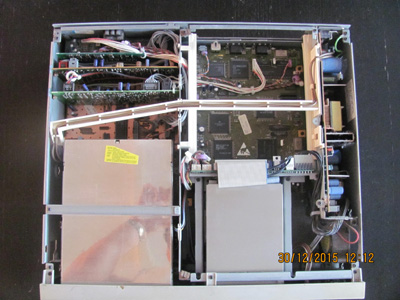

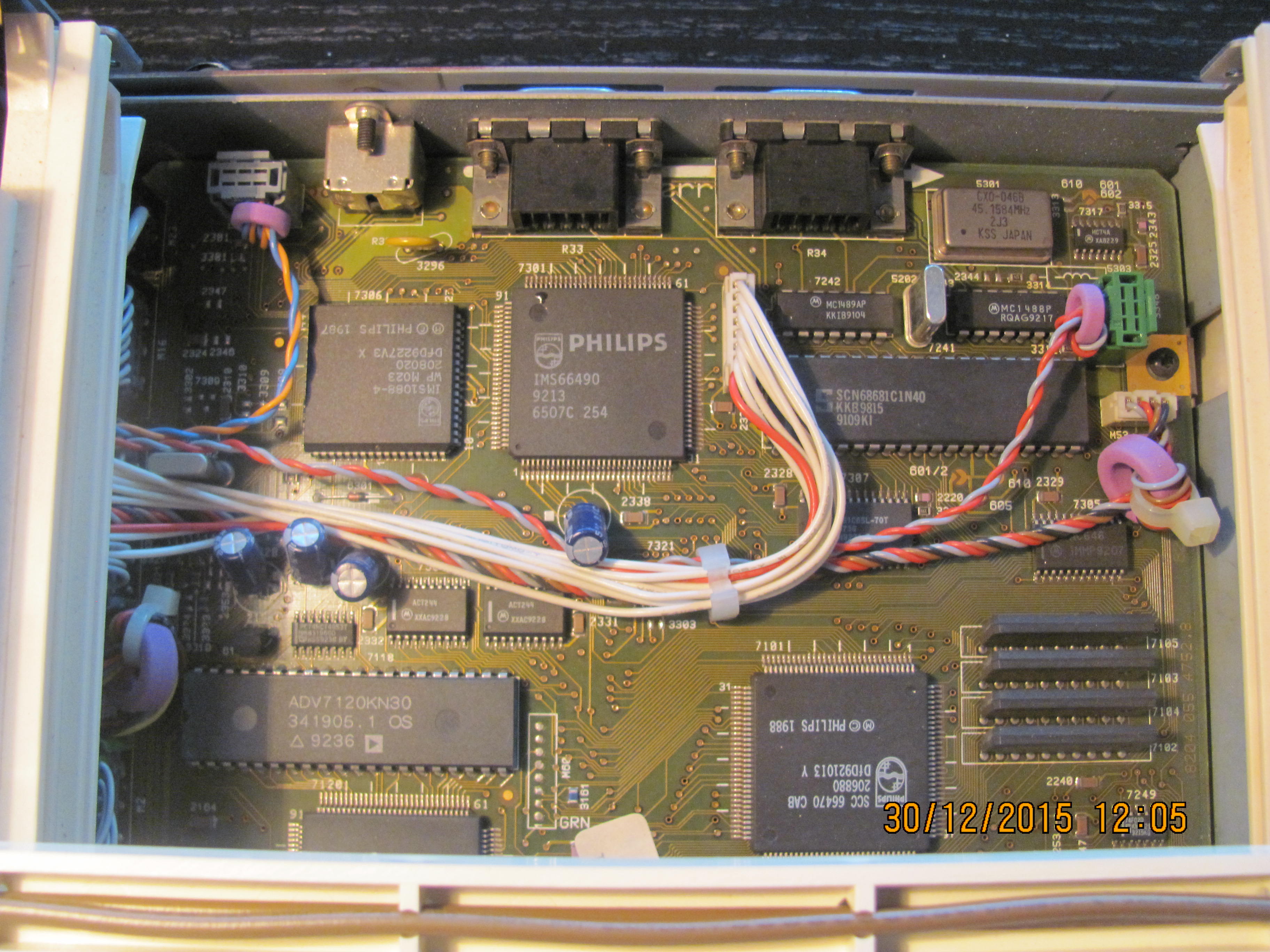

Birds-eye front view with top cover removed.

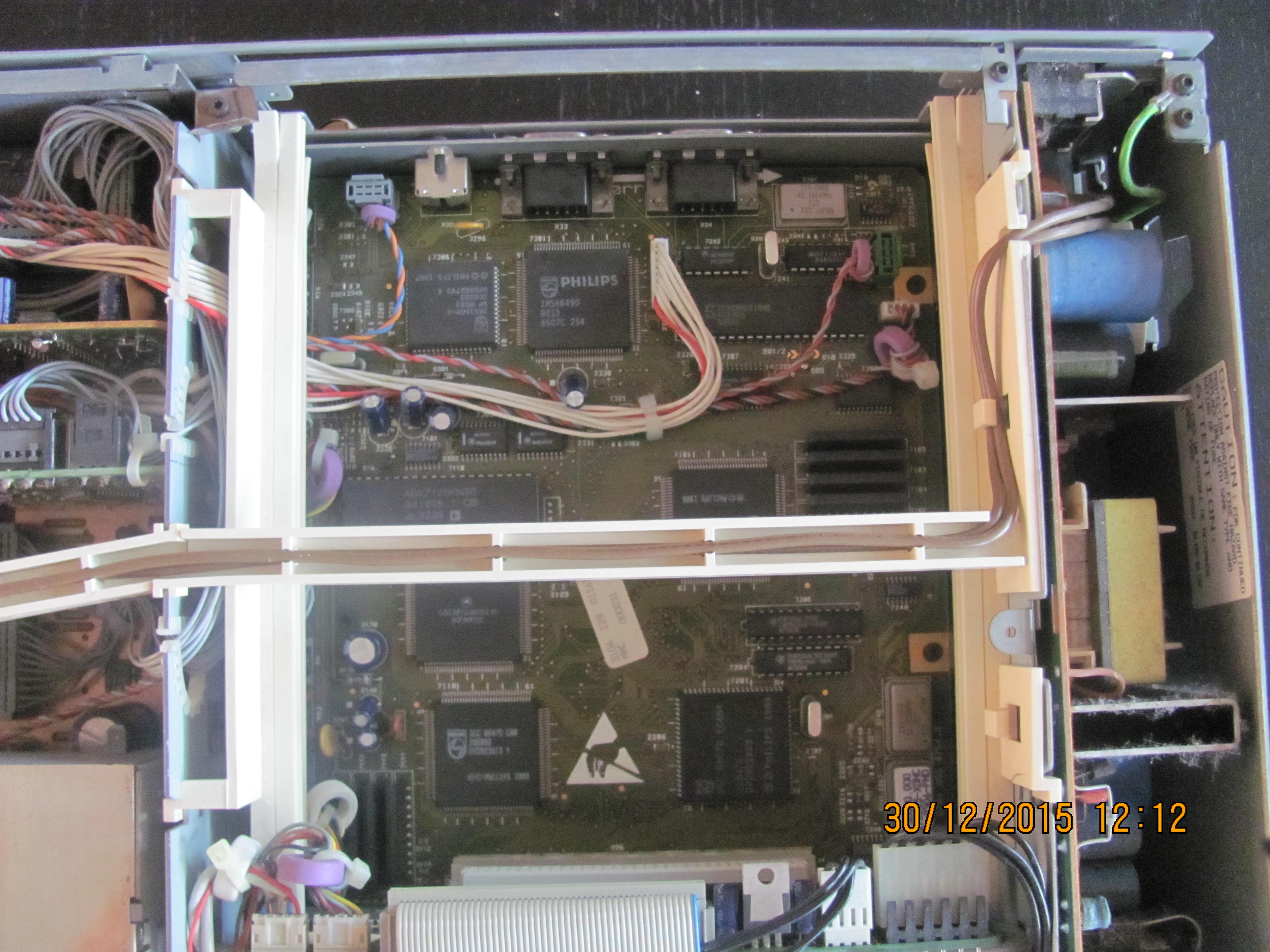

Birds-eye back view with top cover removed.

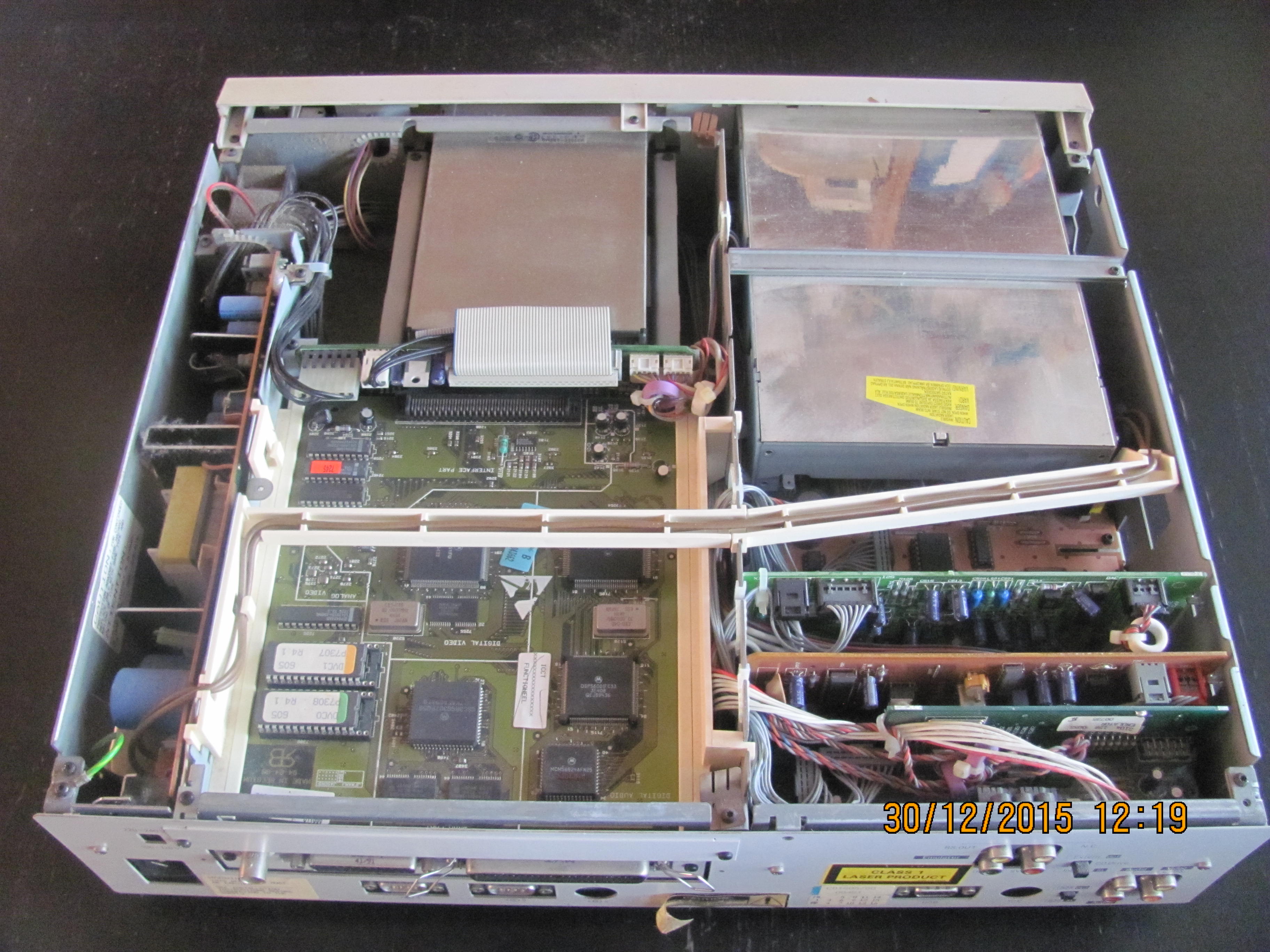

Lifted birds-eye front view of player.
Lifted birds-eye back view of player.
Closeup of DVC/EXT area with both cards present.
Closeup of DVC/EXT area with DVC card removed.
Closeup of DVC/EXT area with both cards removed.

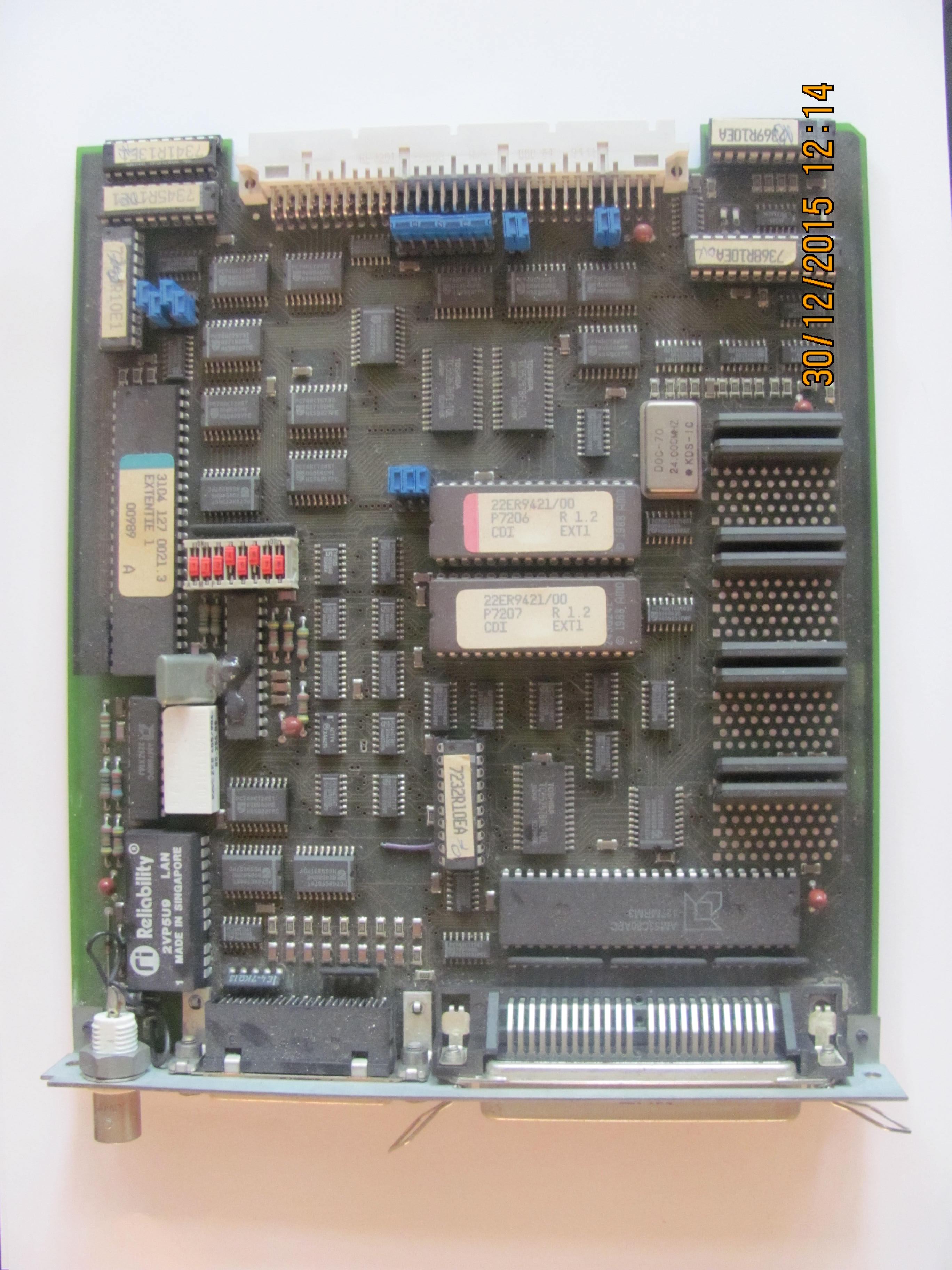

Top view of EXT card with ROM revision 1.2.
Top view of player.
Closeup view of Mini-MMC card.
View of back half of Mini-MMC card.
View of front half of Mini-MMC card.

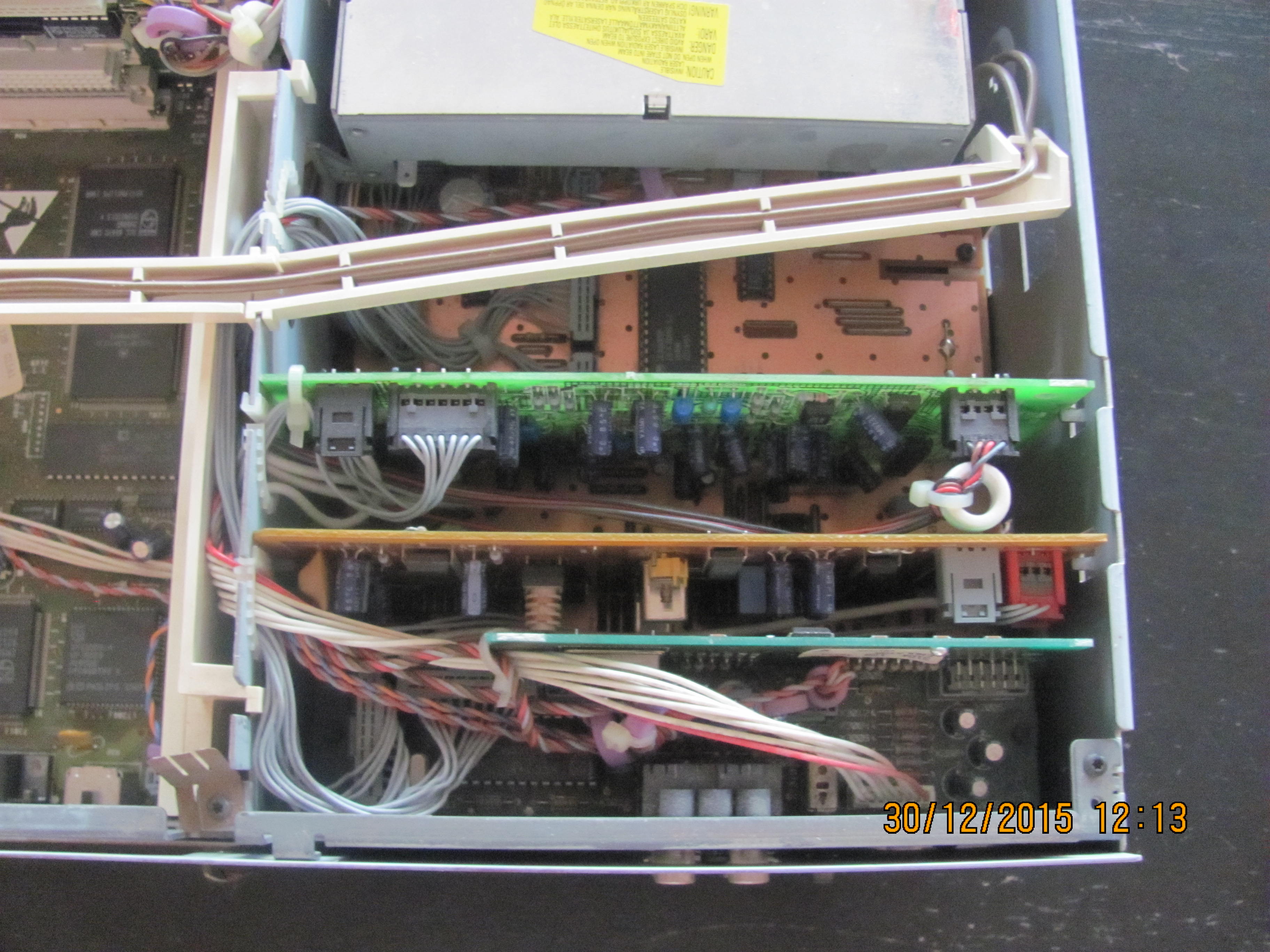

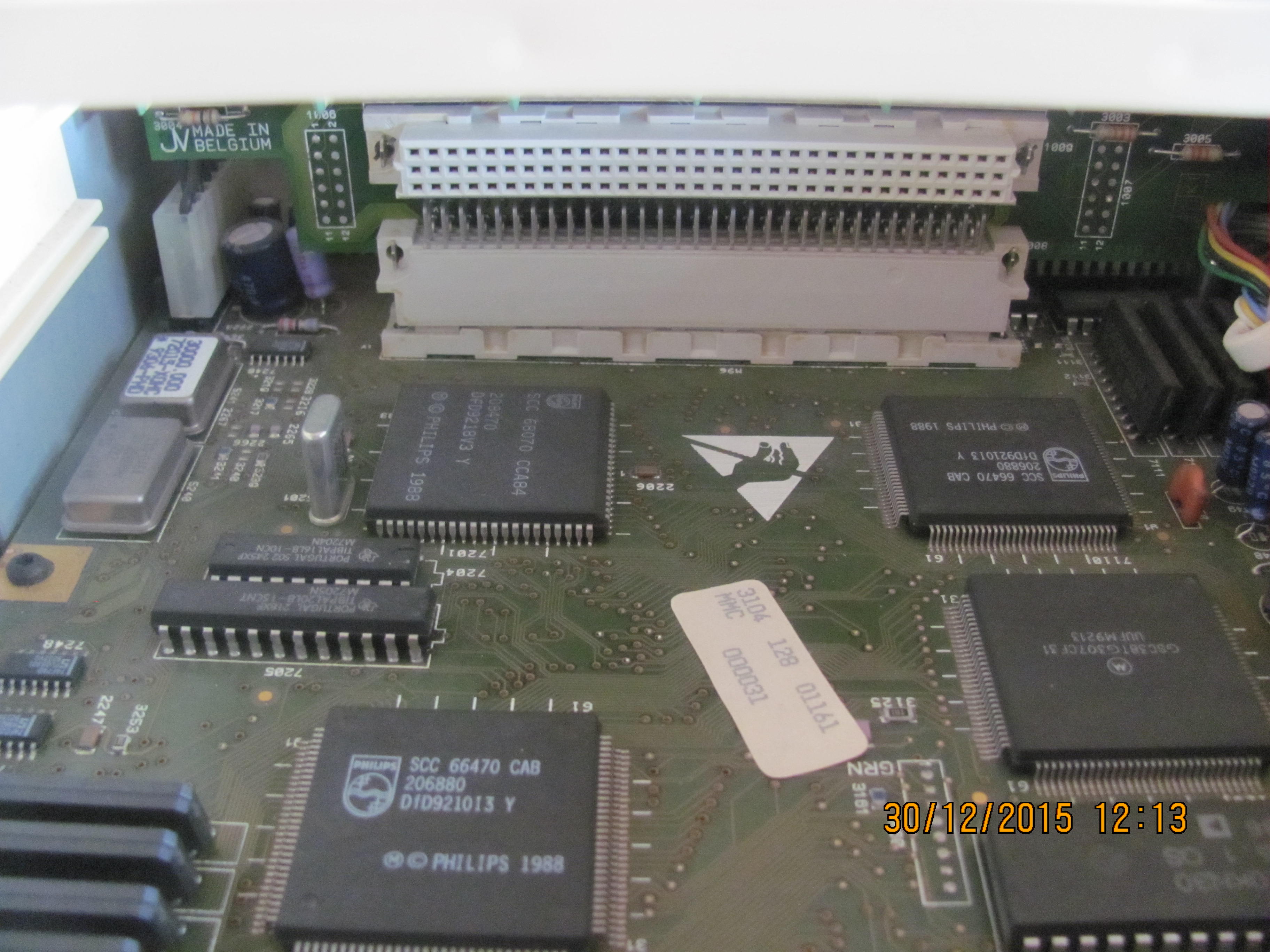

Top view of CD interface and other cards area.
