Gate Array MPEG rev 3 Pictures
Below is a collection of pictures from the following item:
| Type | 22ER9141/00 |
|---|
| 12NC | 9022 729 14101 |
|---|
| Prod. | AH03 9421 000209 |
|---|
| Board | Gate Array MPEG rev 3 |
|---|
Frontside with logos

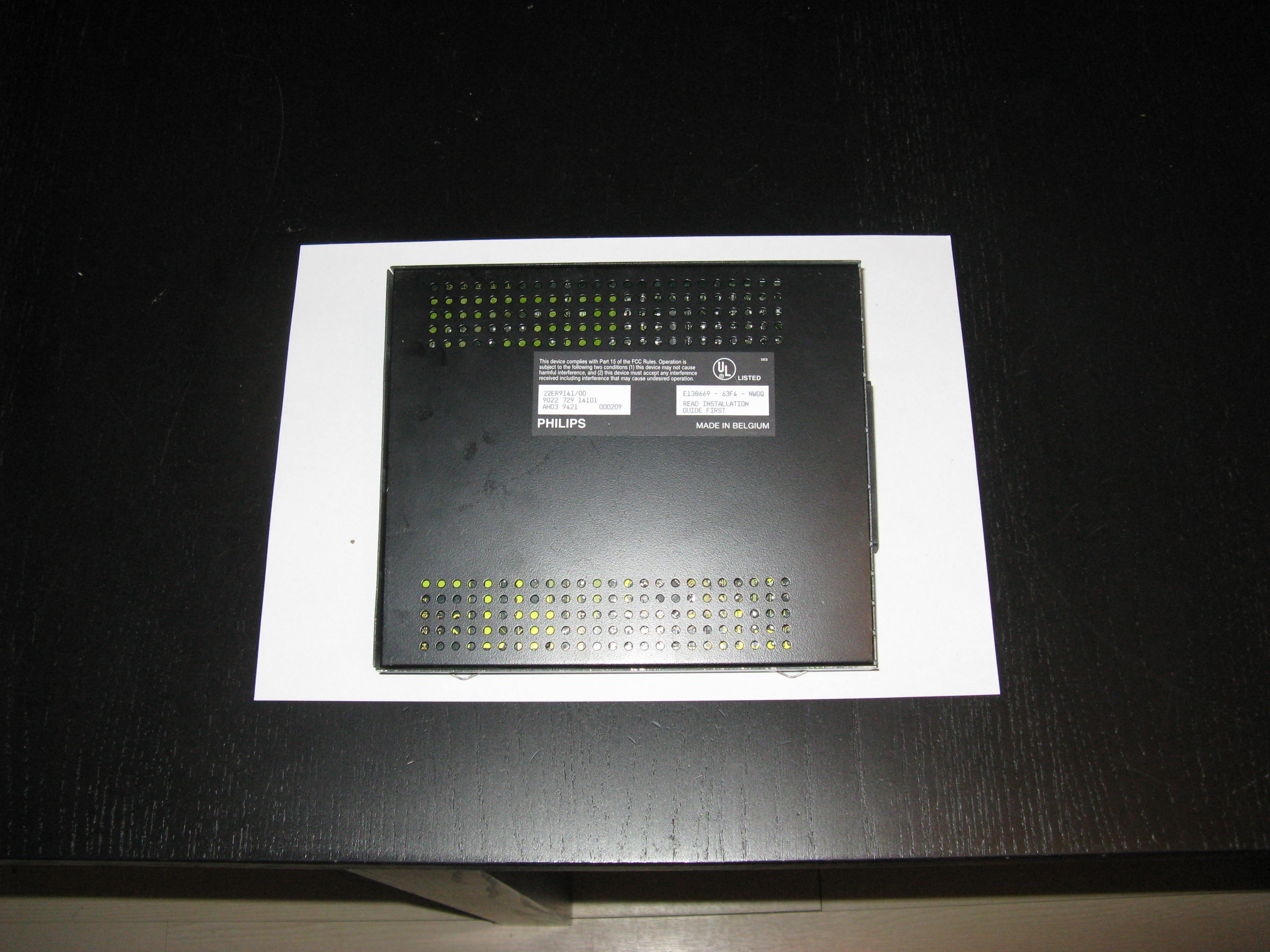

Backside with information sticker

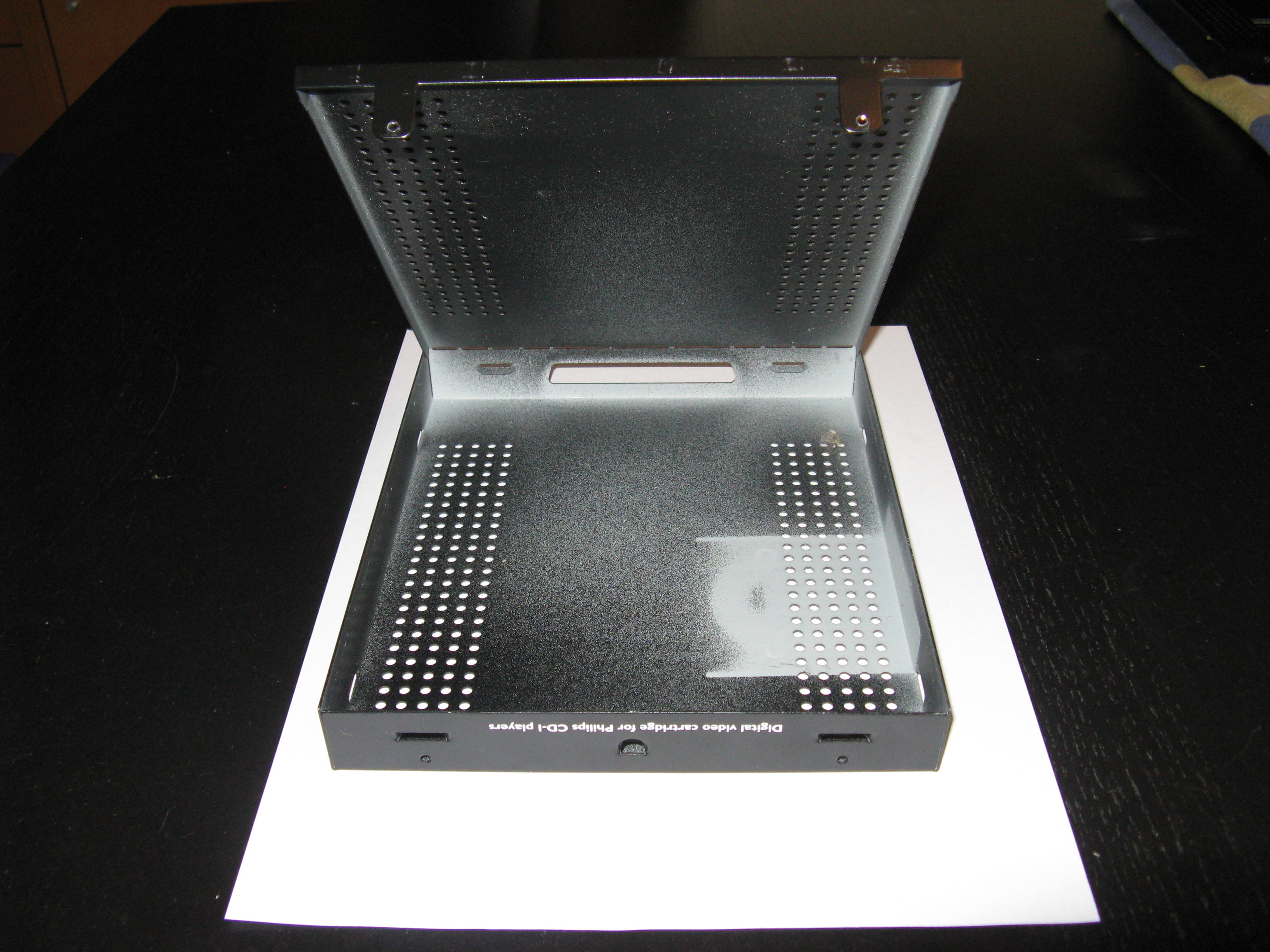

Opened case with board removed

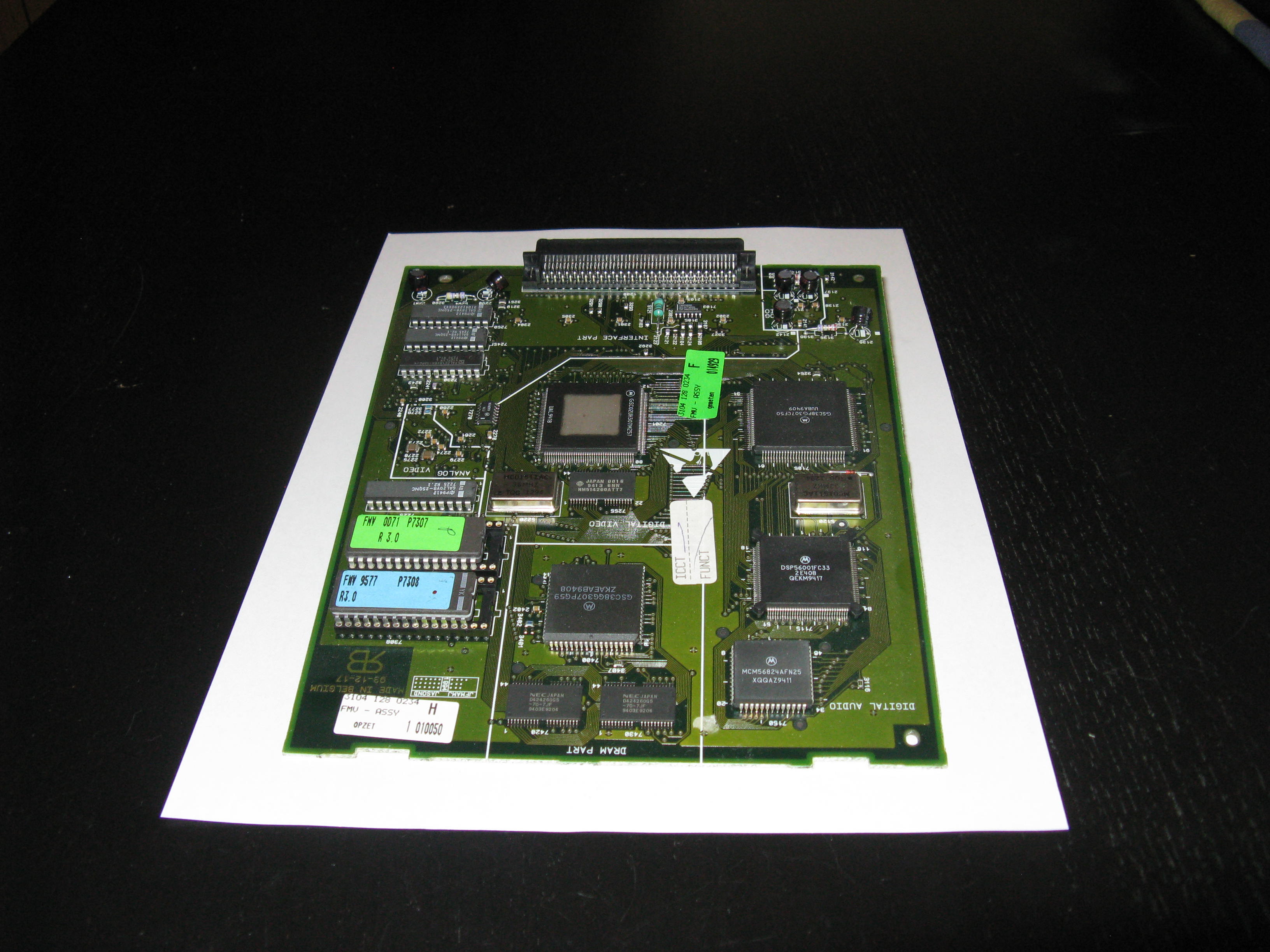

Component side of board

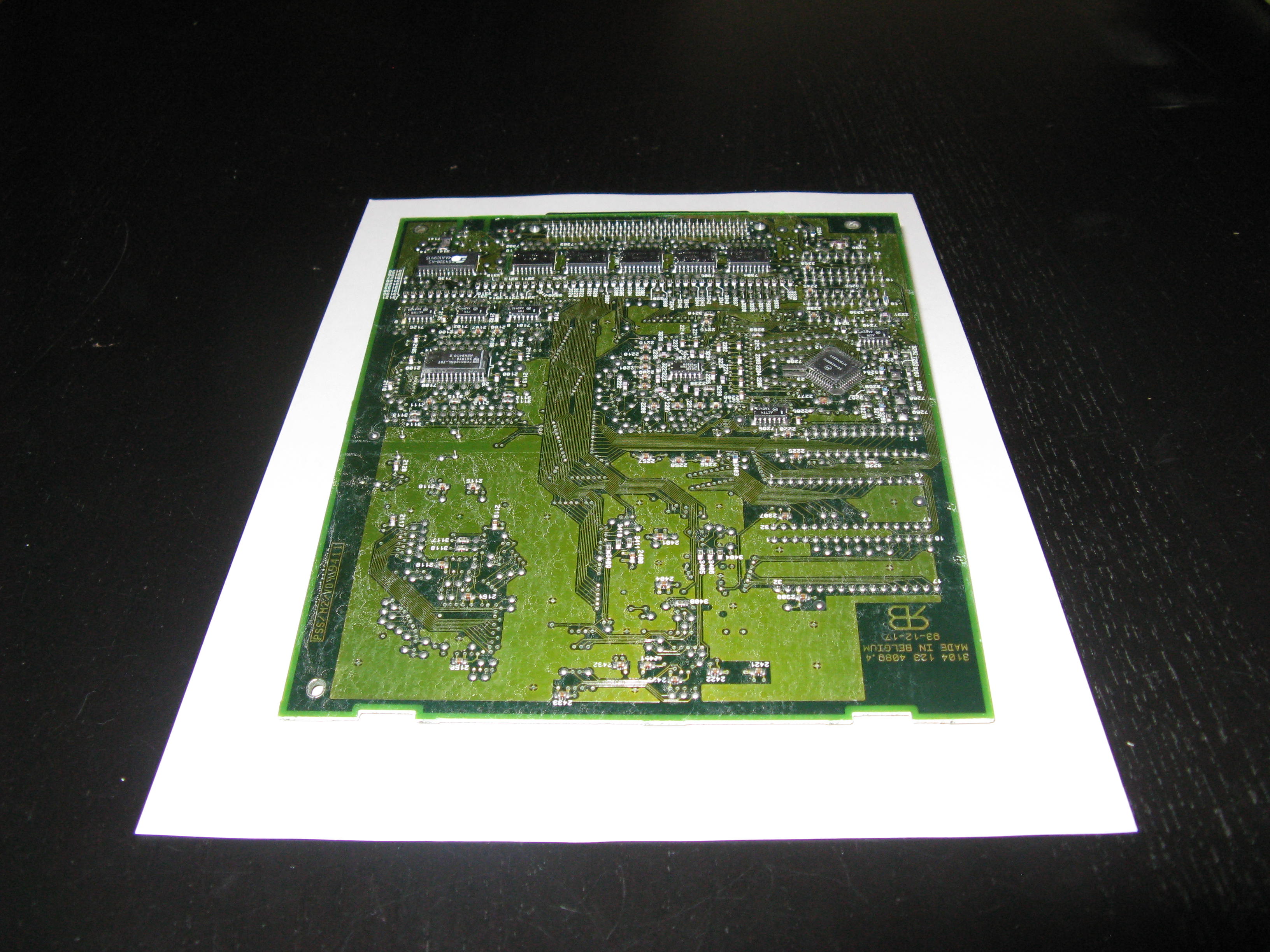

Back side of board
