Erroneous' I2M PCI/CDi card
Below is a collection of pictures from the I2M PCI/CDi card of forum member Erroneous.
These pictures were taken at the Home Computer Museum in October 2020.
| Type | I2M PCI/CDi card |
|---|
| Serial | 87623 |
|---|
| Prod. | 1997 or later |
|---|
| Board | I2M PCI/CDi version 2.2 |
|---|
| DVC | on-board IMPEG |
|---|
At the bottom of this page is a list of component markings.

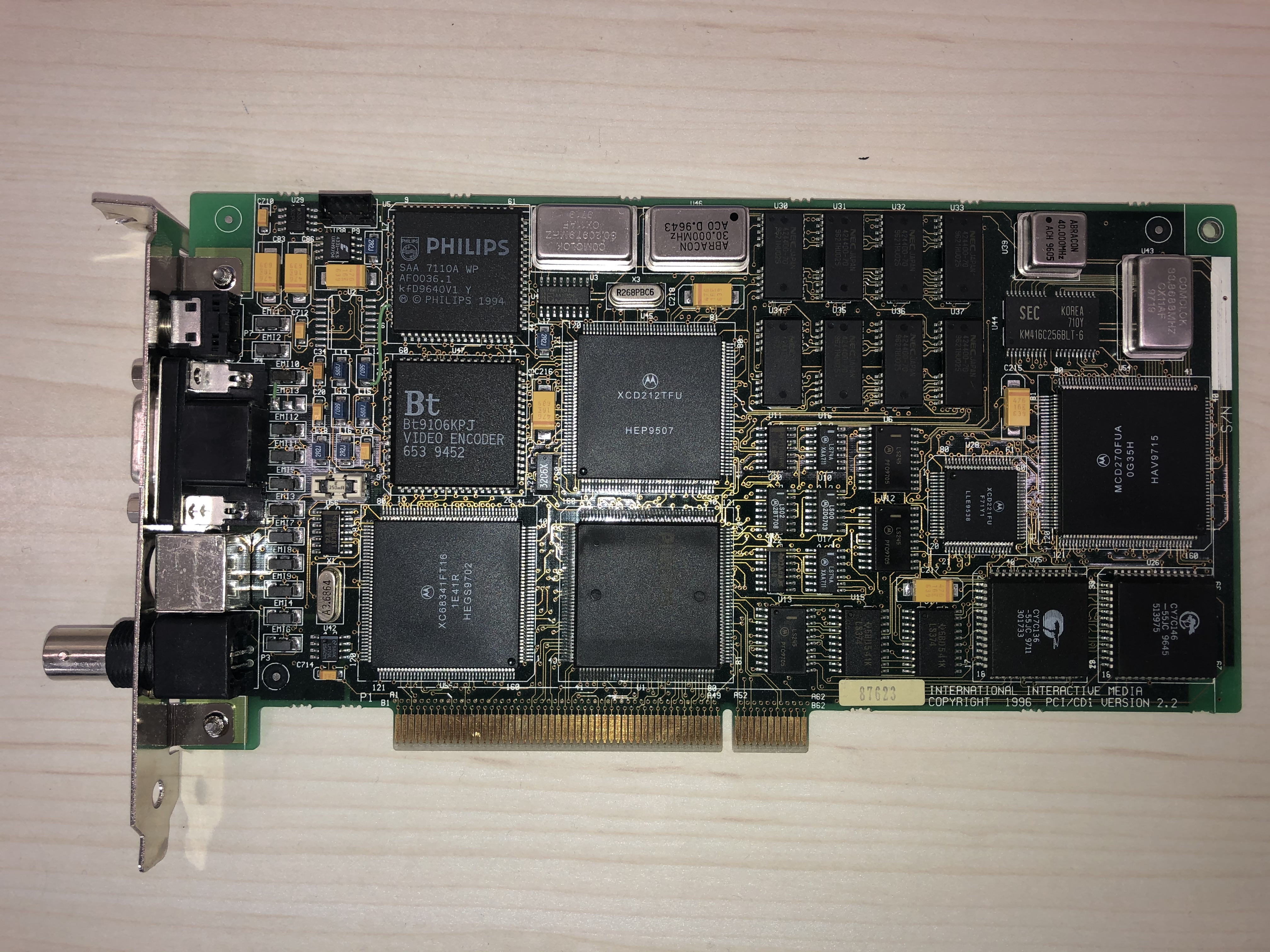

Component side #1.

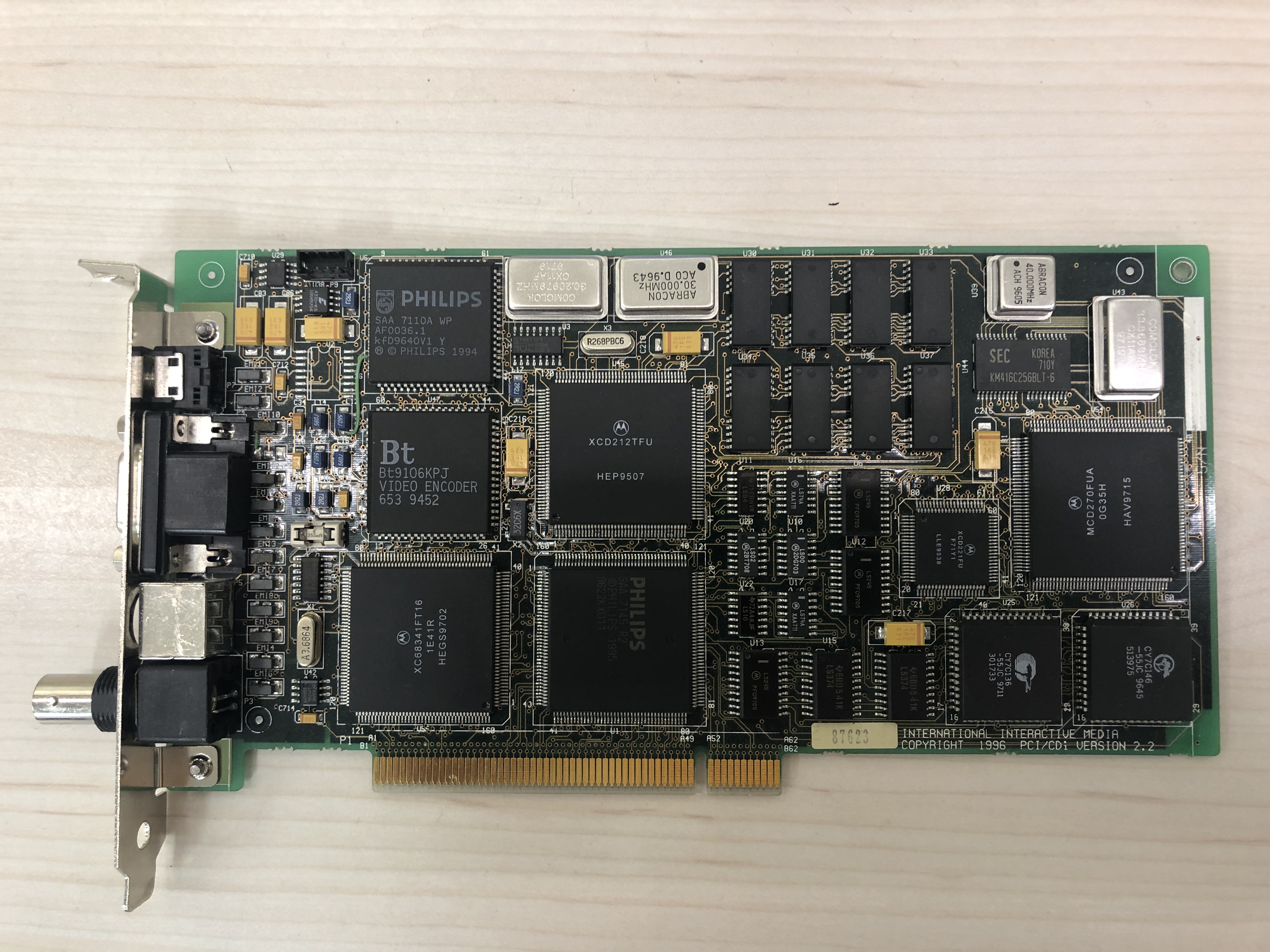

Component side #2.

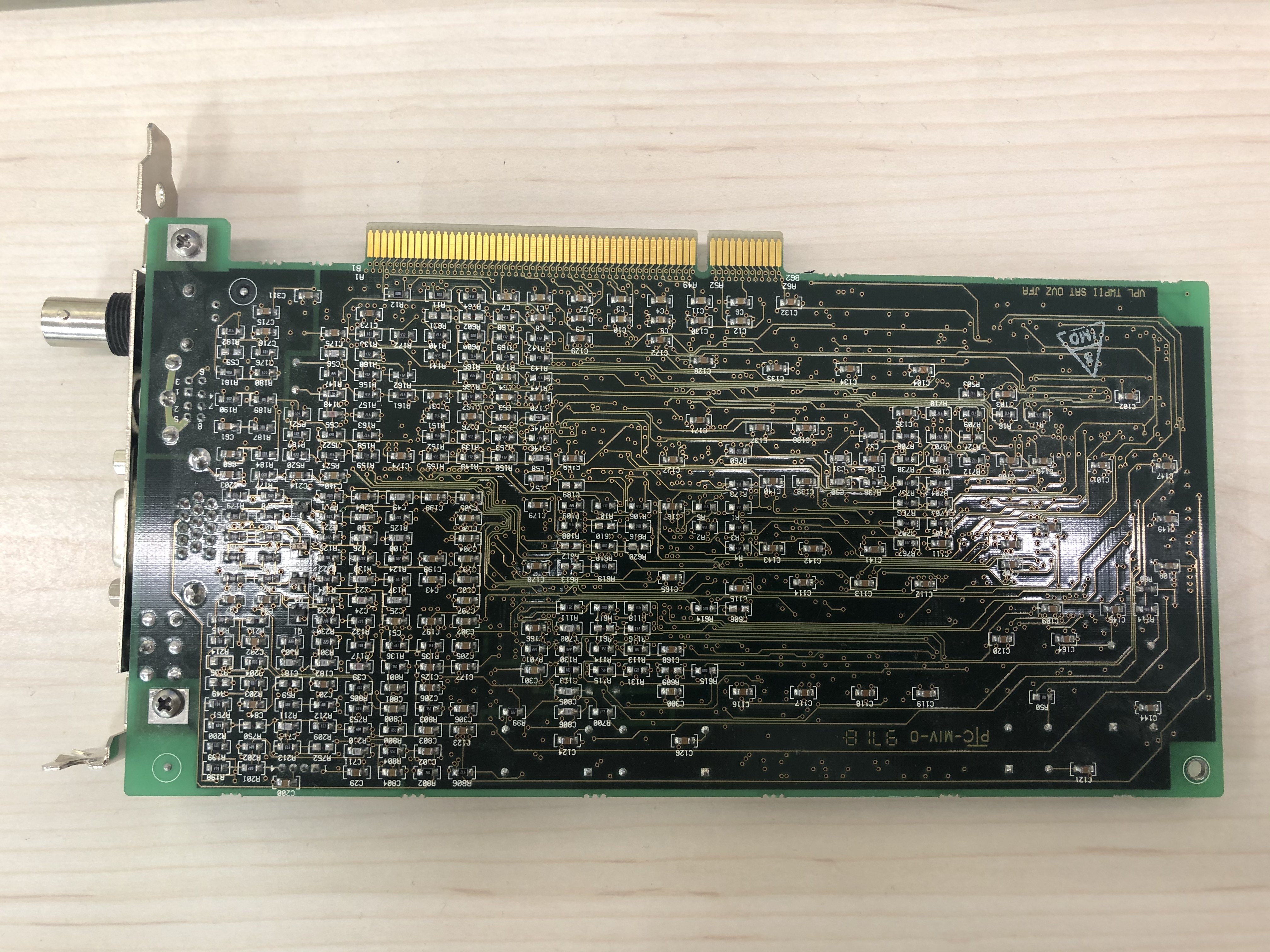

Back side #1.

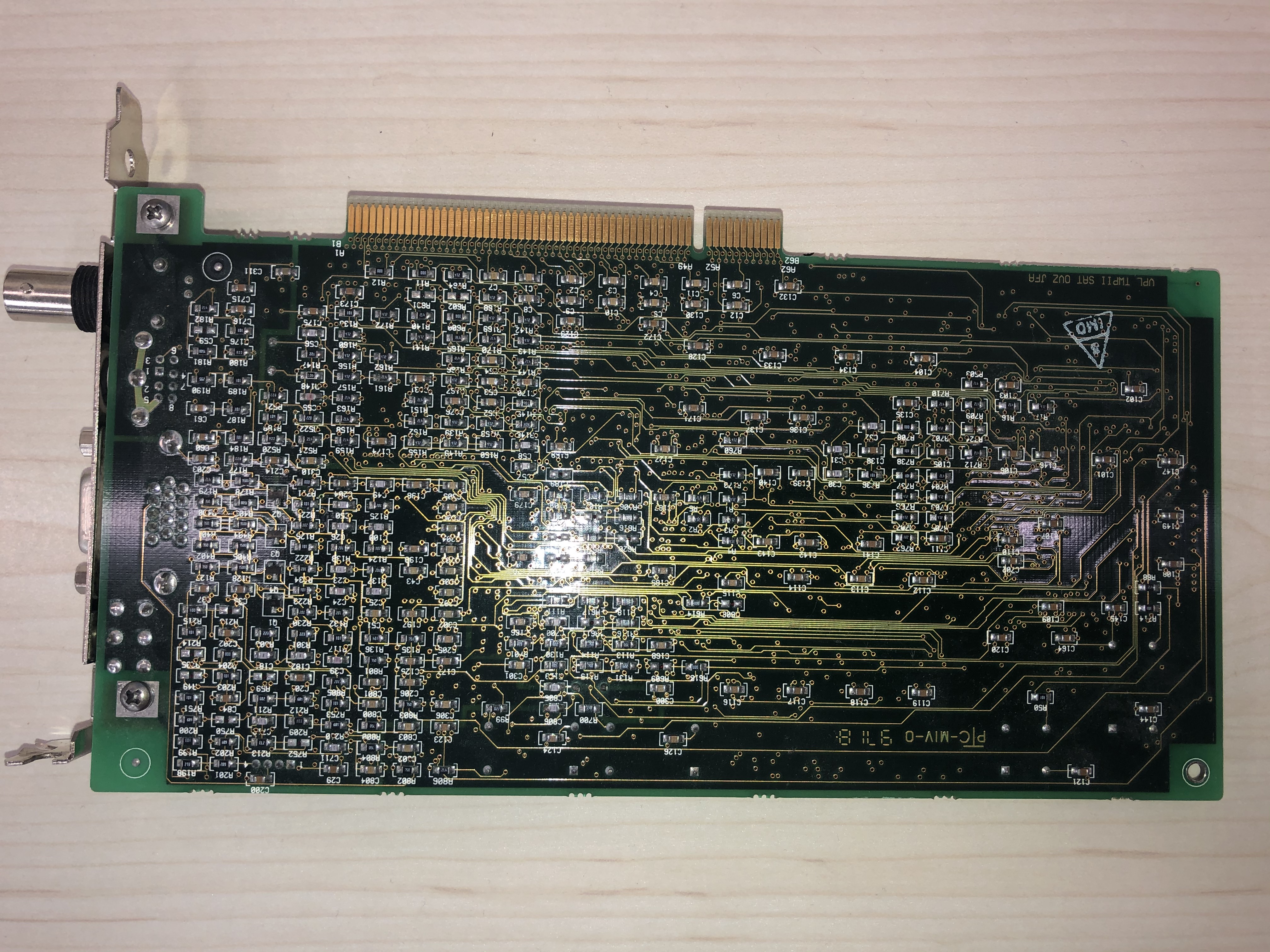

Back side #2.

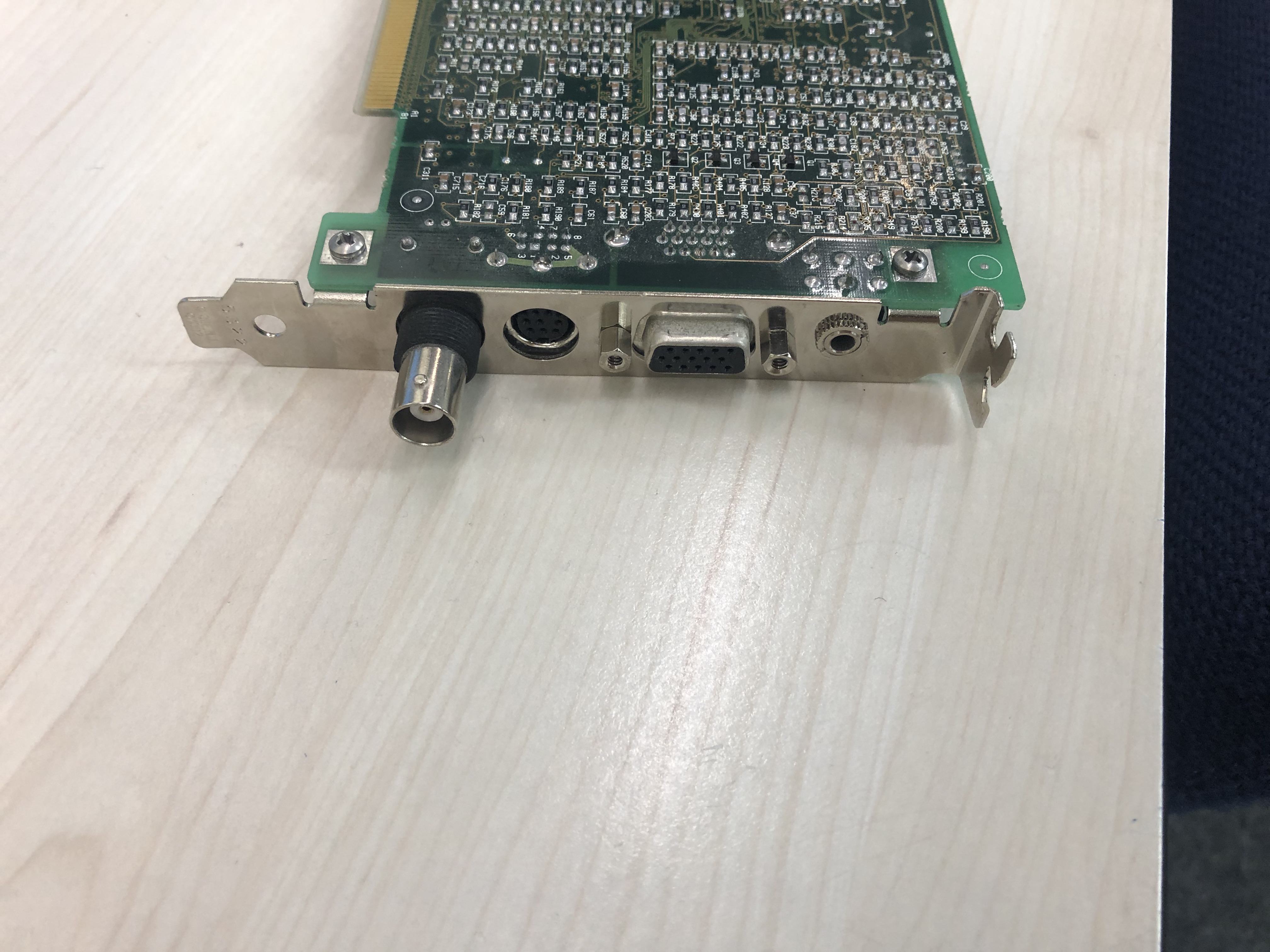

Connector side.
List of component markings
