Kyocera Pro 1000S
Below is a collection of pictures from the following item:
| Type | Kyocera Pro 1000S |
|---|
| Serial | KC40500003 |
|---|
| Prod. | unknown |
|---|
| Board | Kyocera |
|---|
| DVC | not possible |
|---|
At the bottom of this page is a list of component markings.

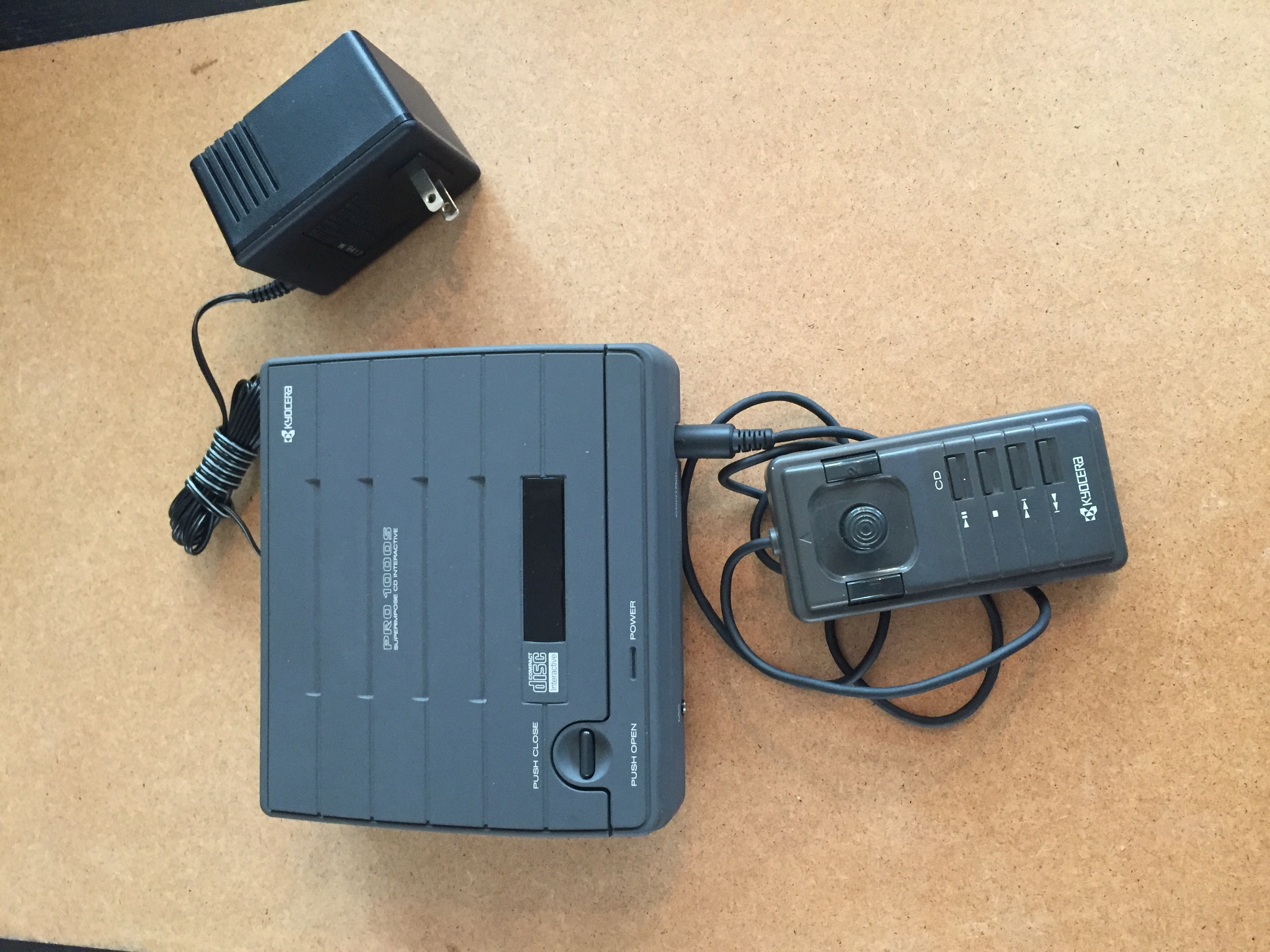

Complete set.

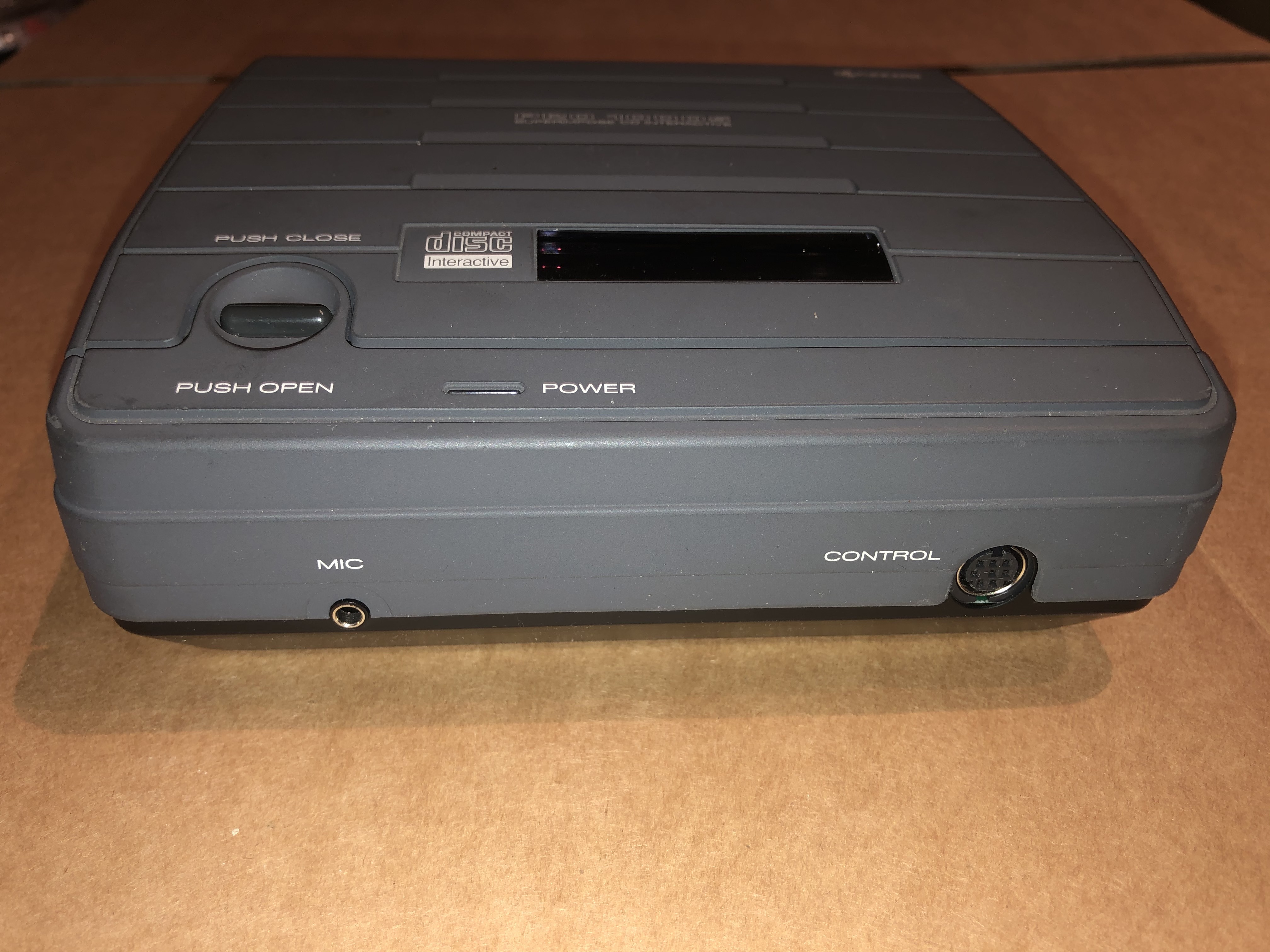

Front side with MIC and CONTROL inputs.

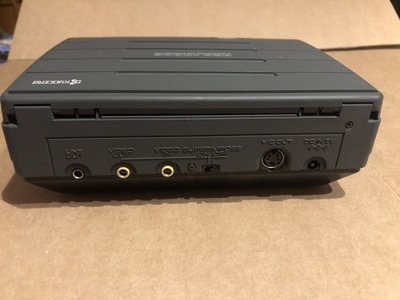

Back side with LINE OUT, VIDEO IN/OUT, SUPERIMPOSE ON/OFF, Y/C OUT and DC IN.

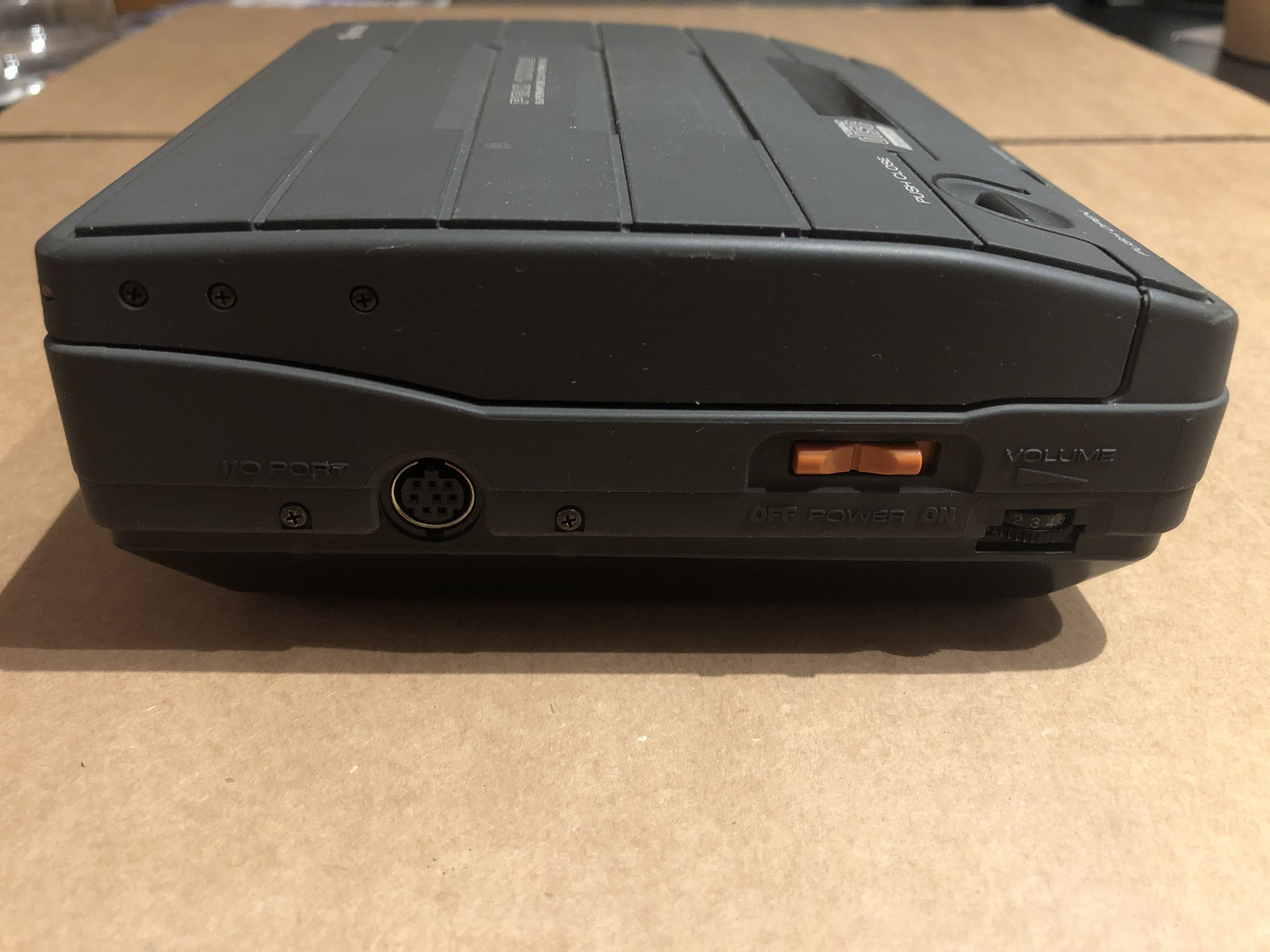

Left side with I/O PORT, POWER ON/OFF and VOLUME.

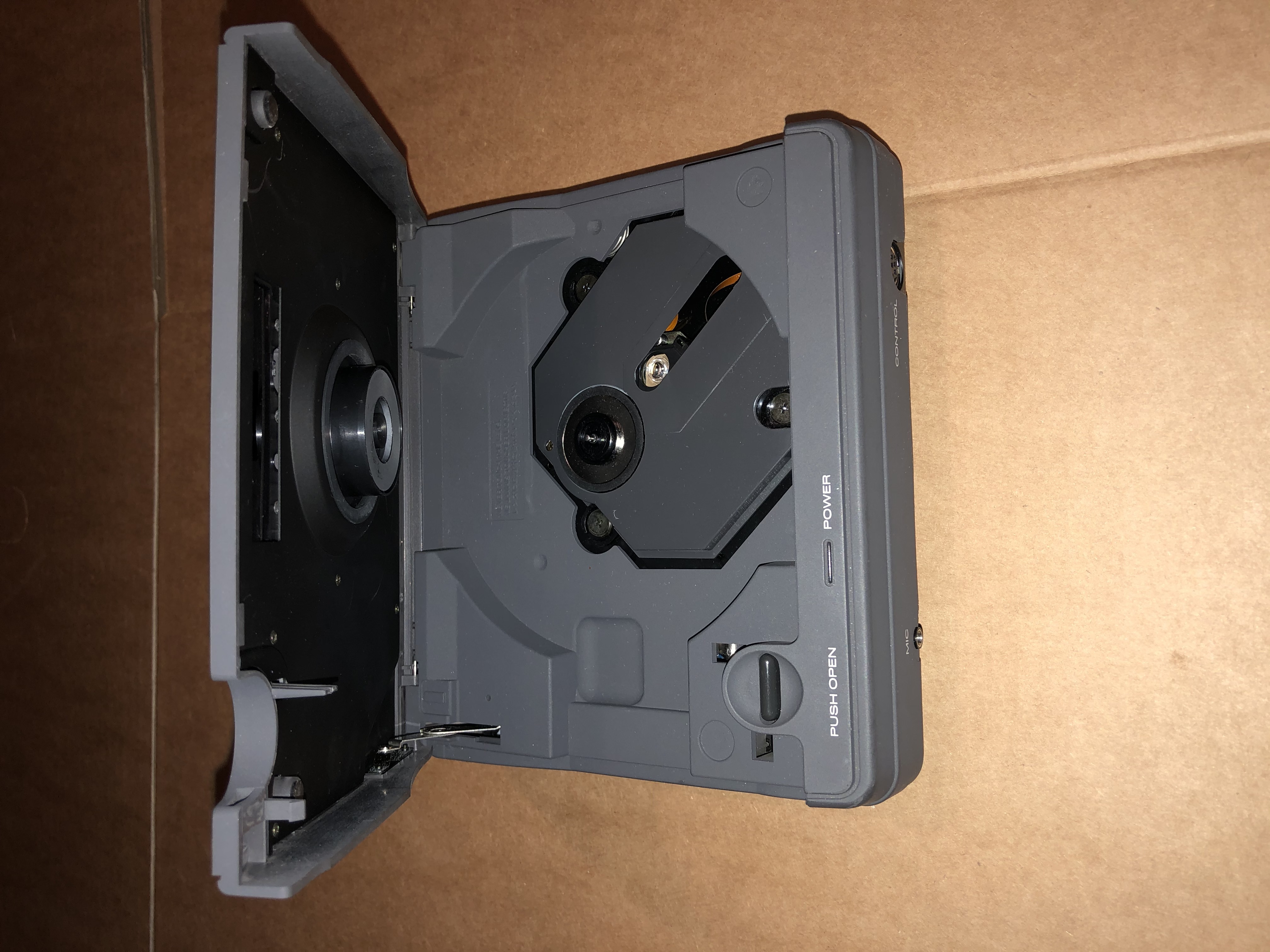

With lifted top cover.

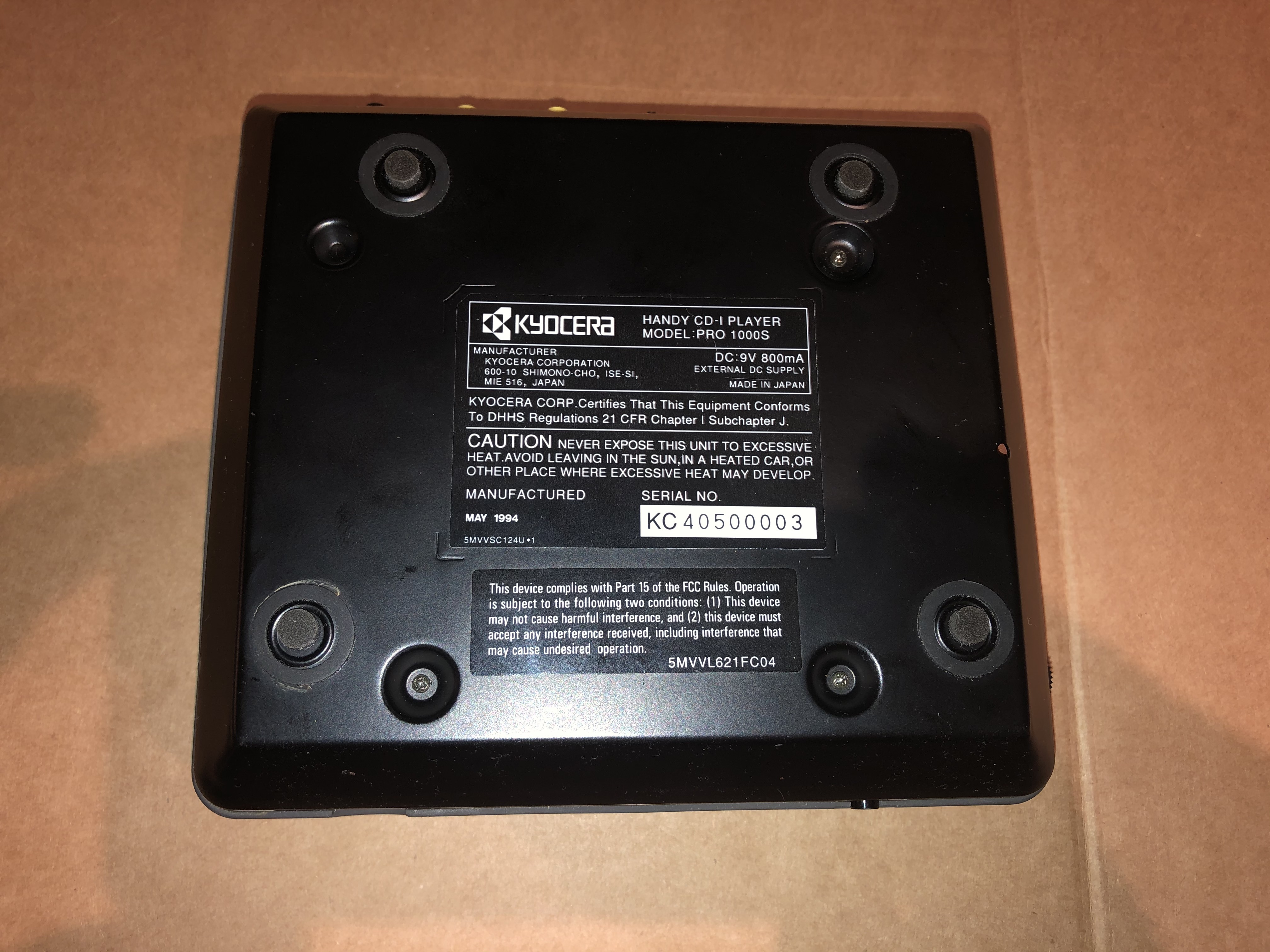

Bottom cover.

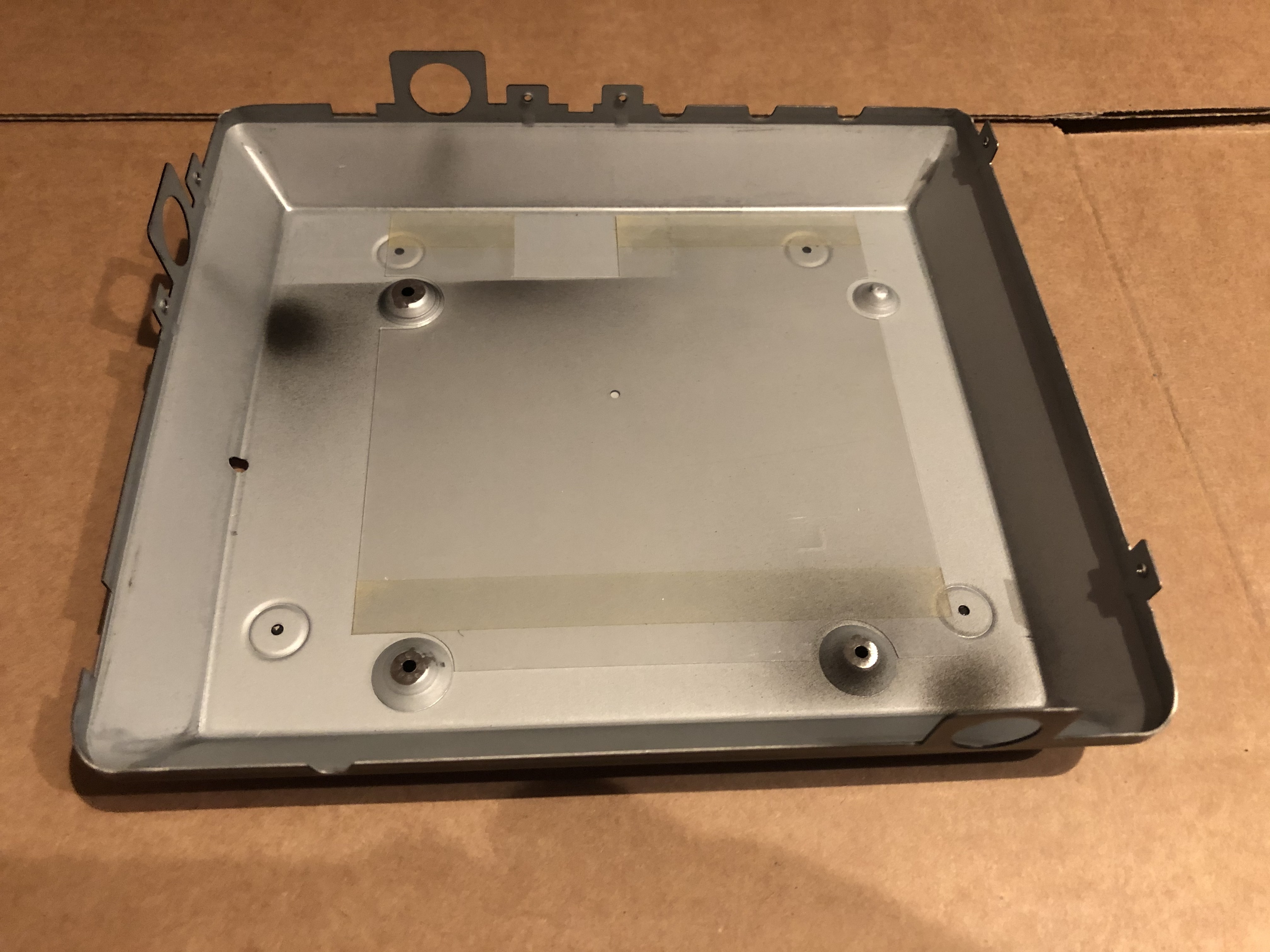

Inside view of removed bottom cover.

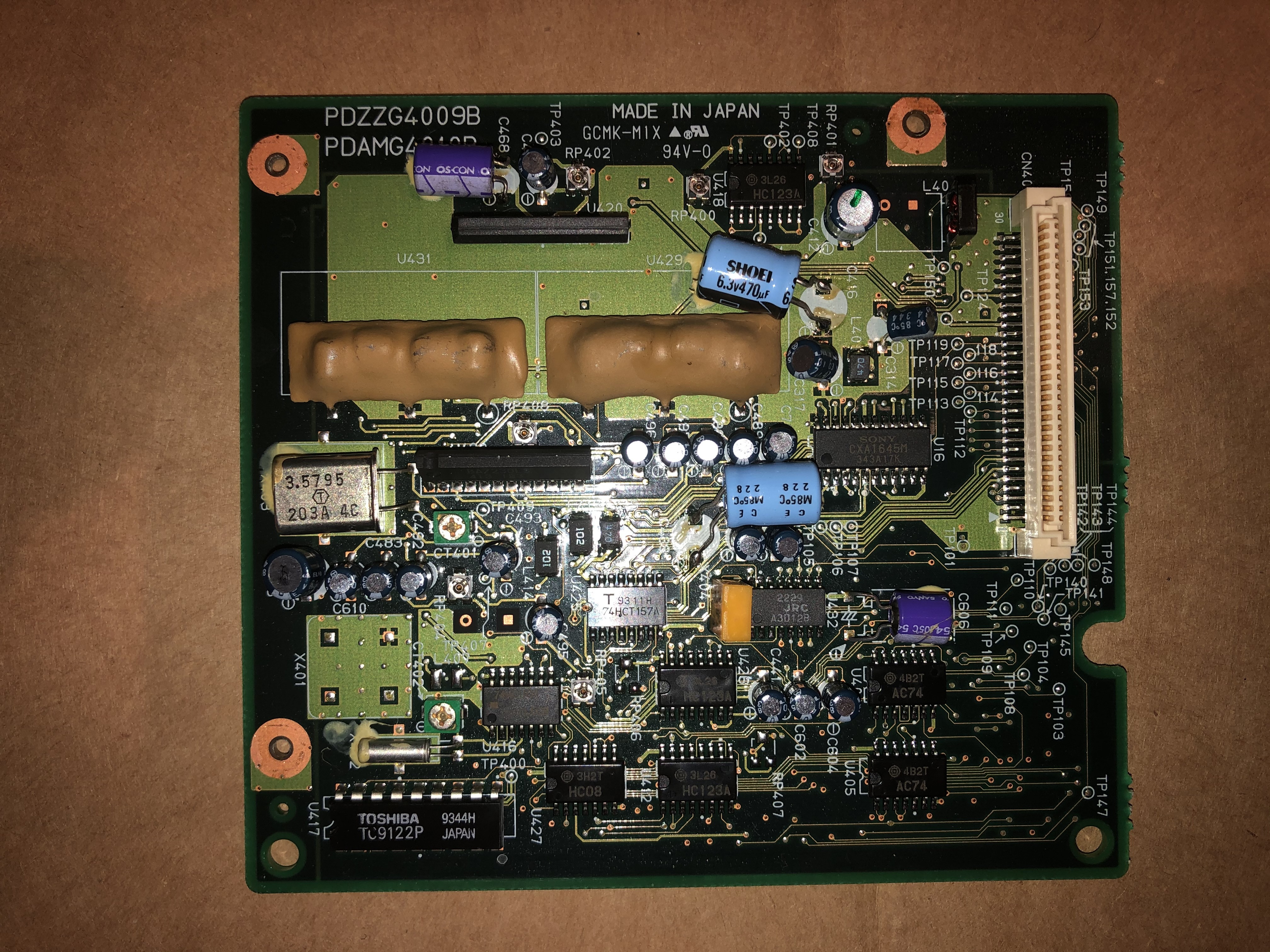

Daughter board bottom side after removing bottom cover.

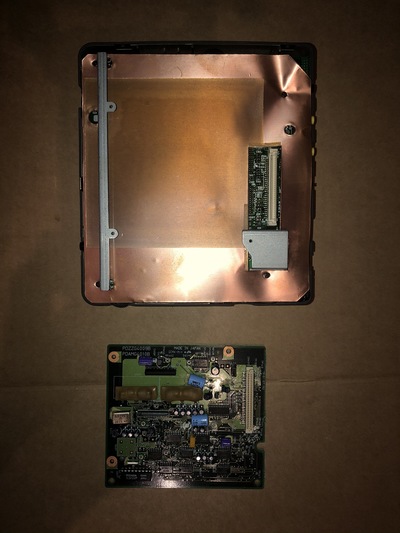

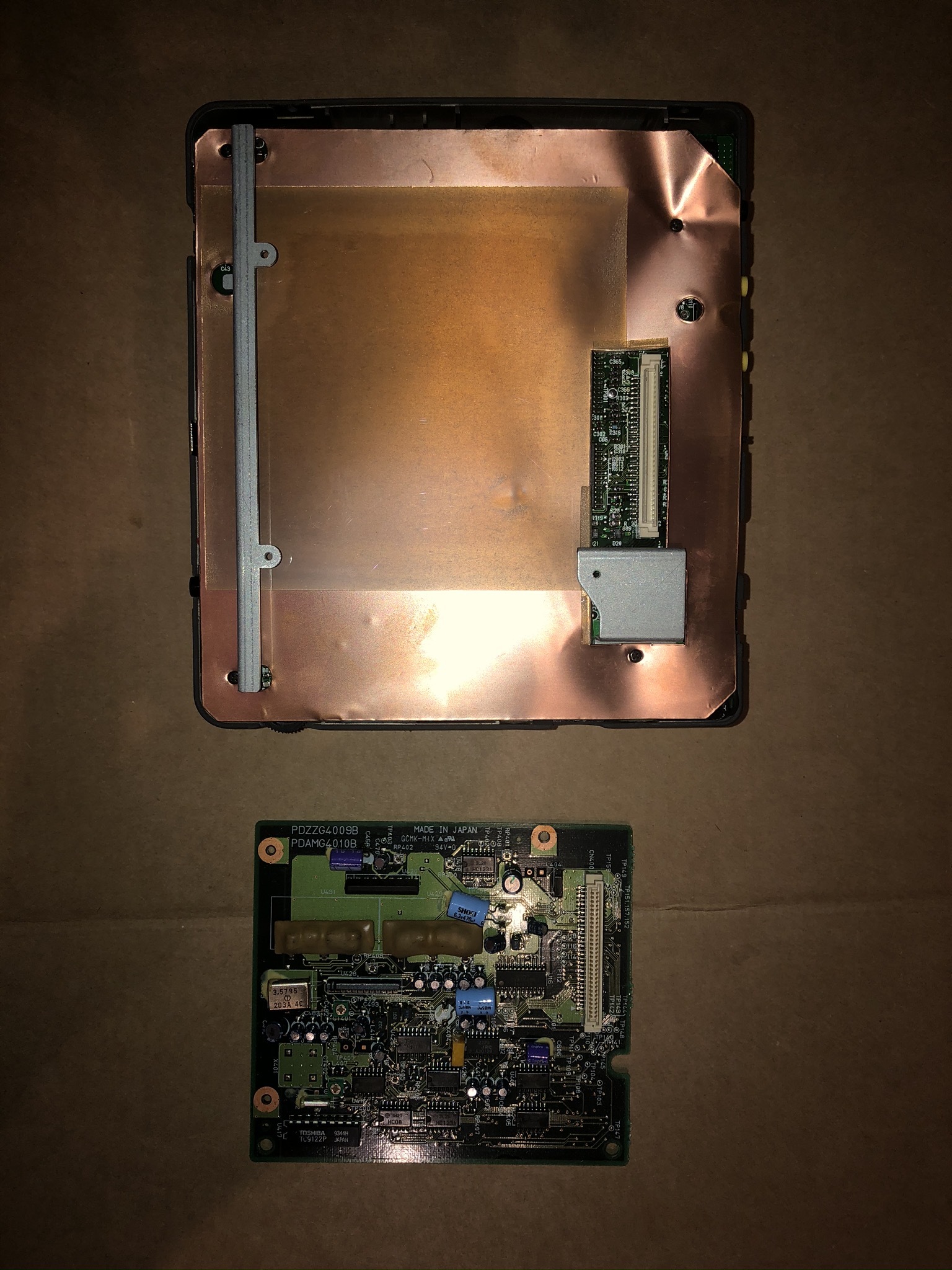

Removing daughter board.
Daughter board up side.
Main board insulating cover.

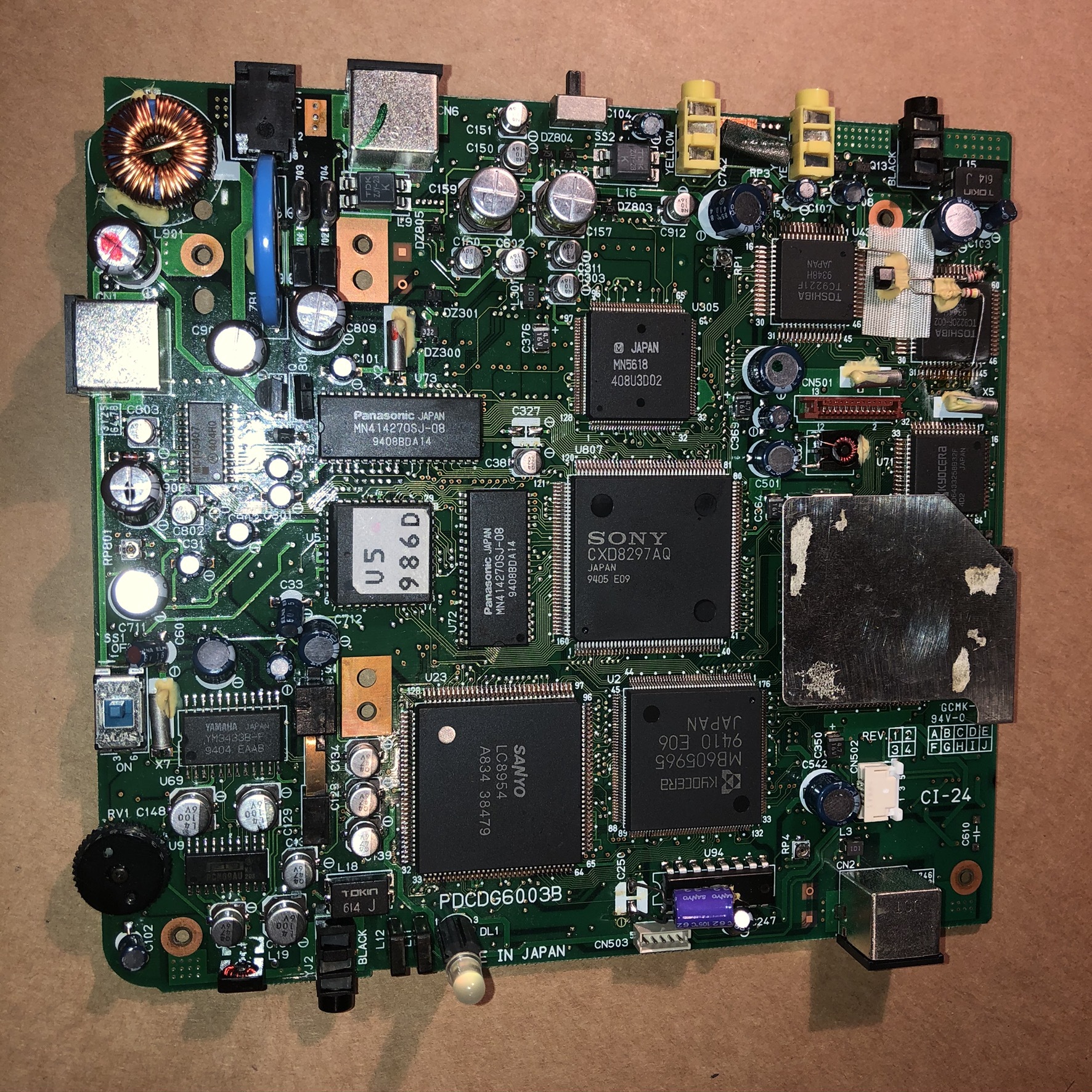

Main board down side after removing insulating cover.
Main board down side top left.
Main board down side top right.

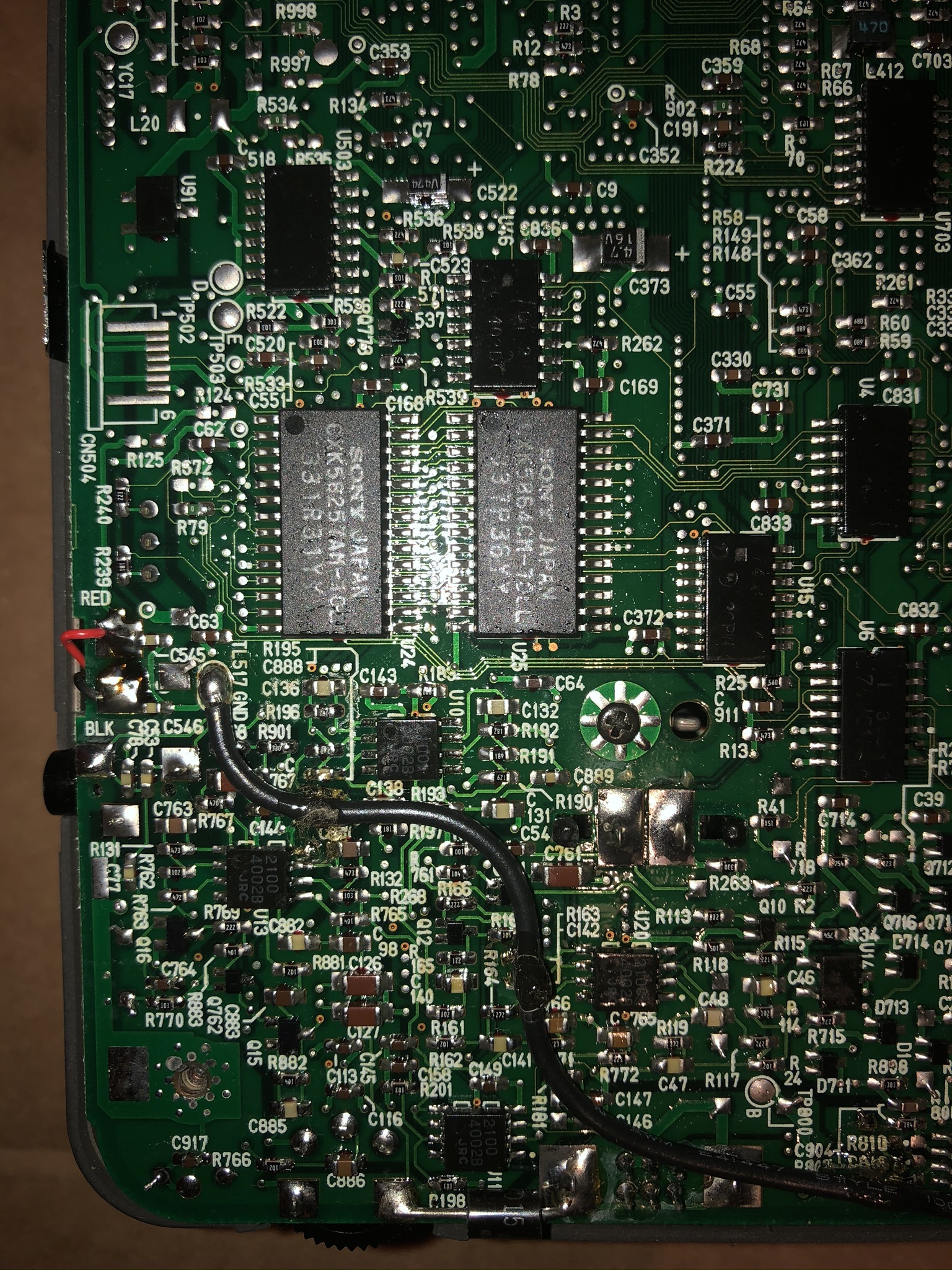

Main board down side bottom left.

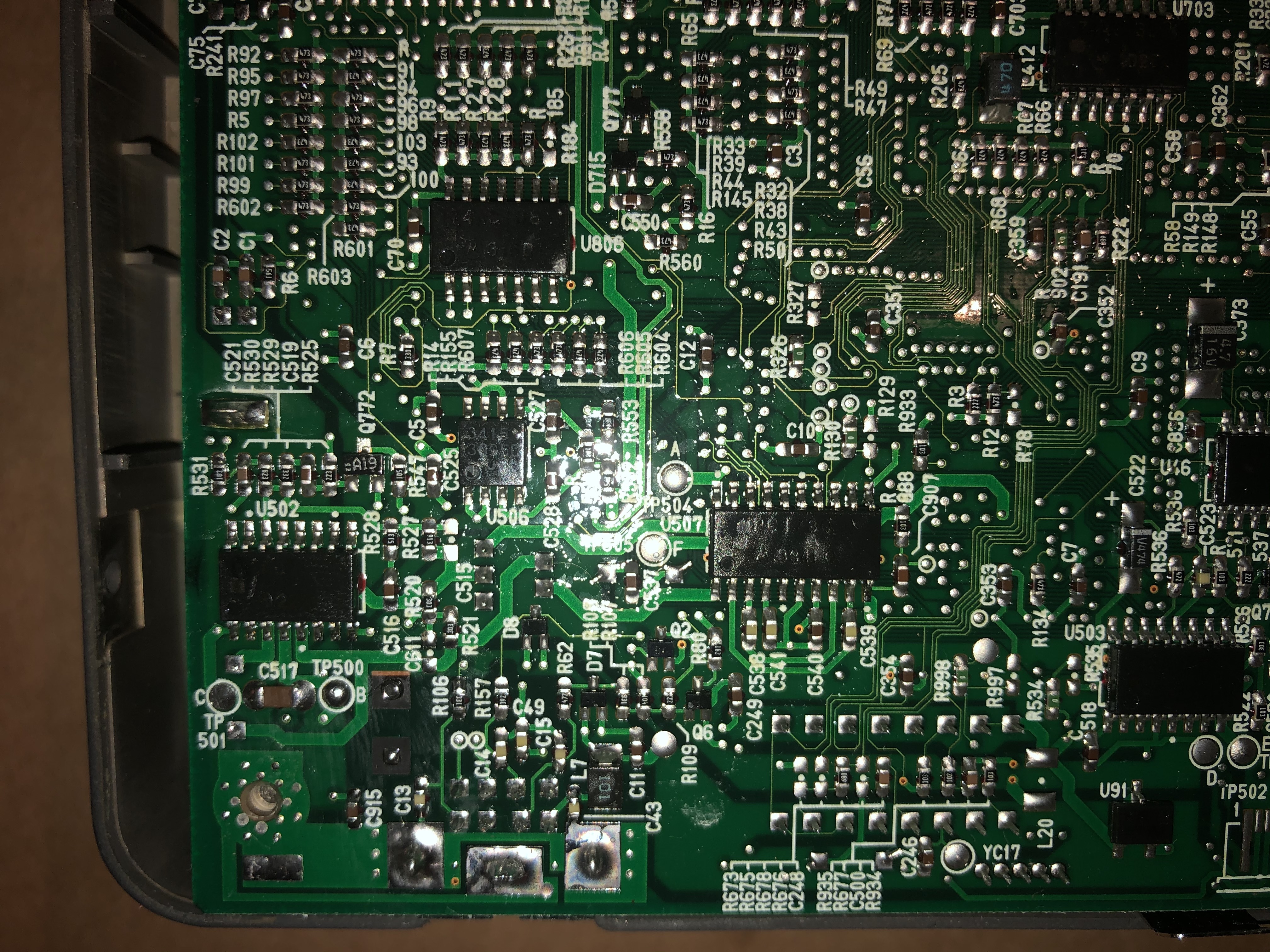

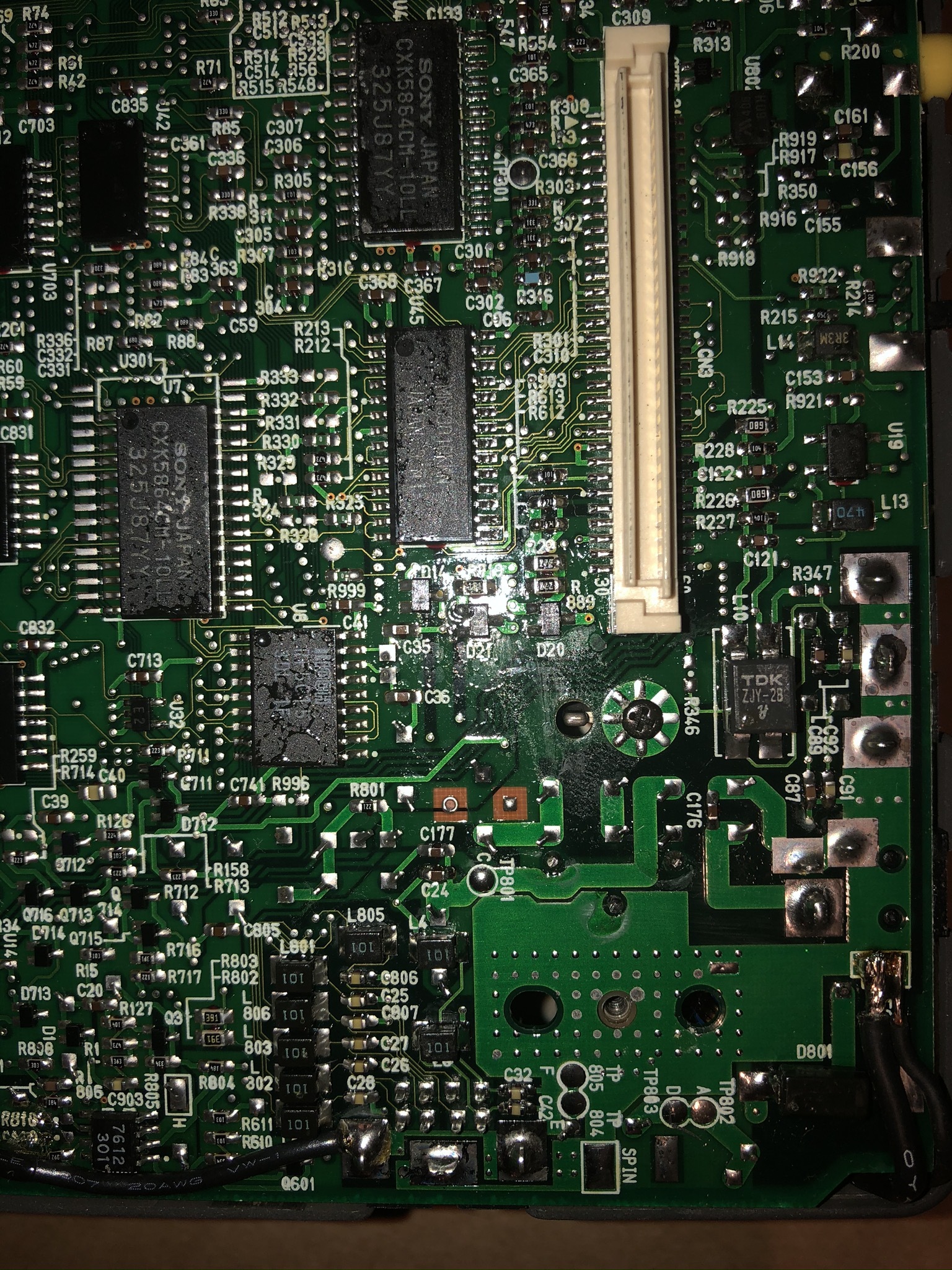

Main board down side bottom right.
Main board up side uncovered.

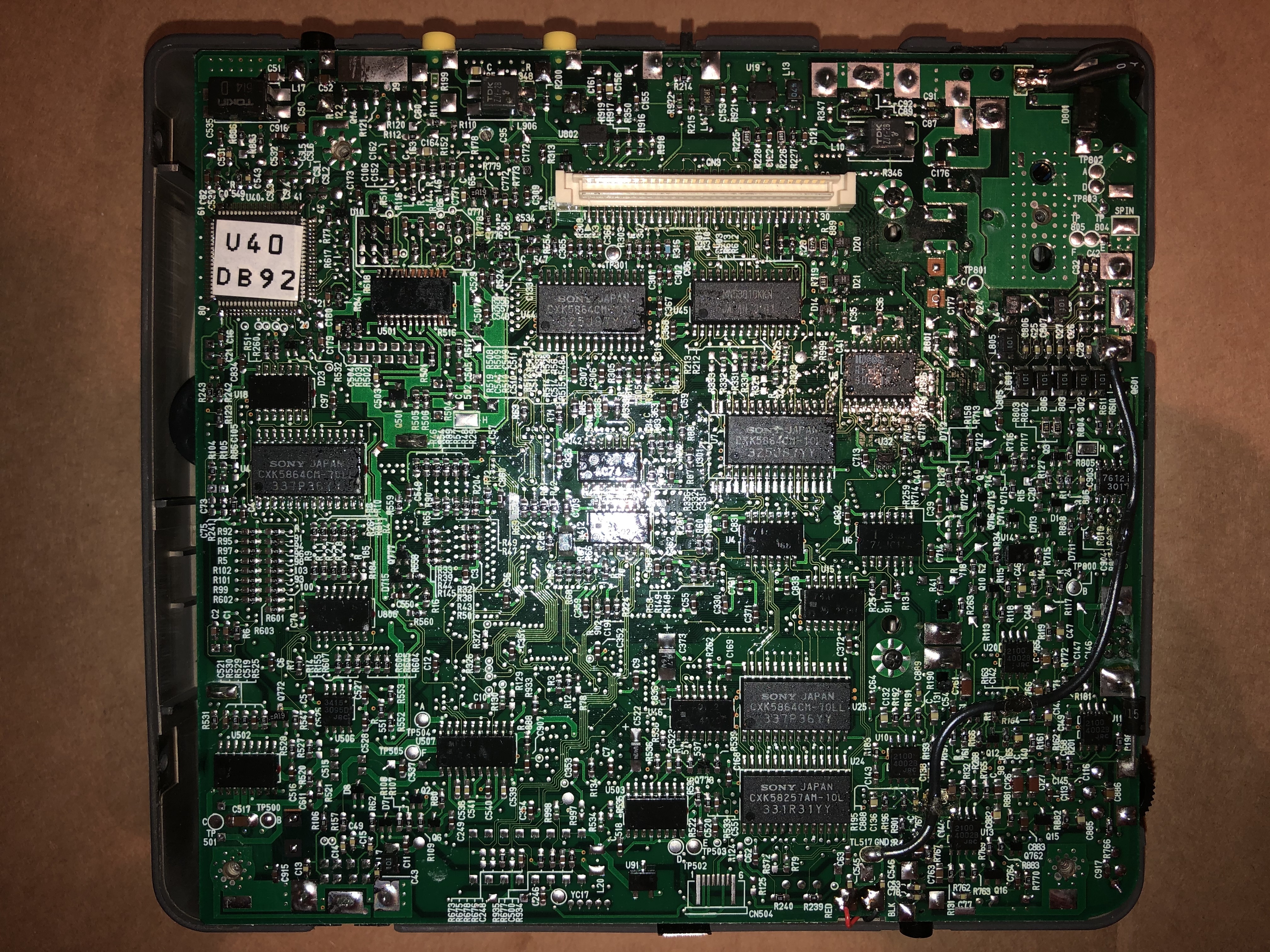

Main board up side.

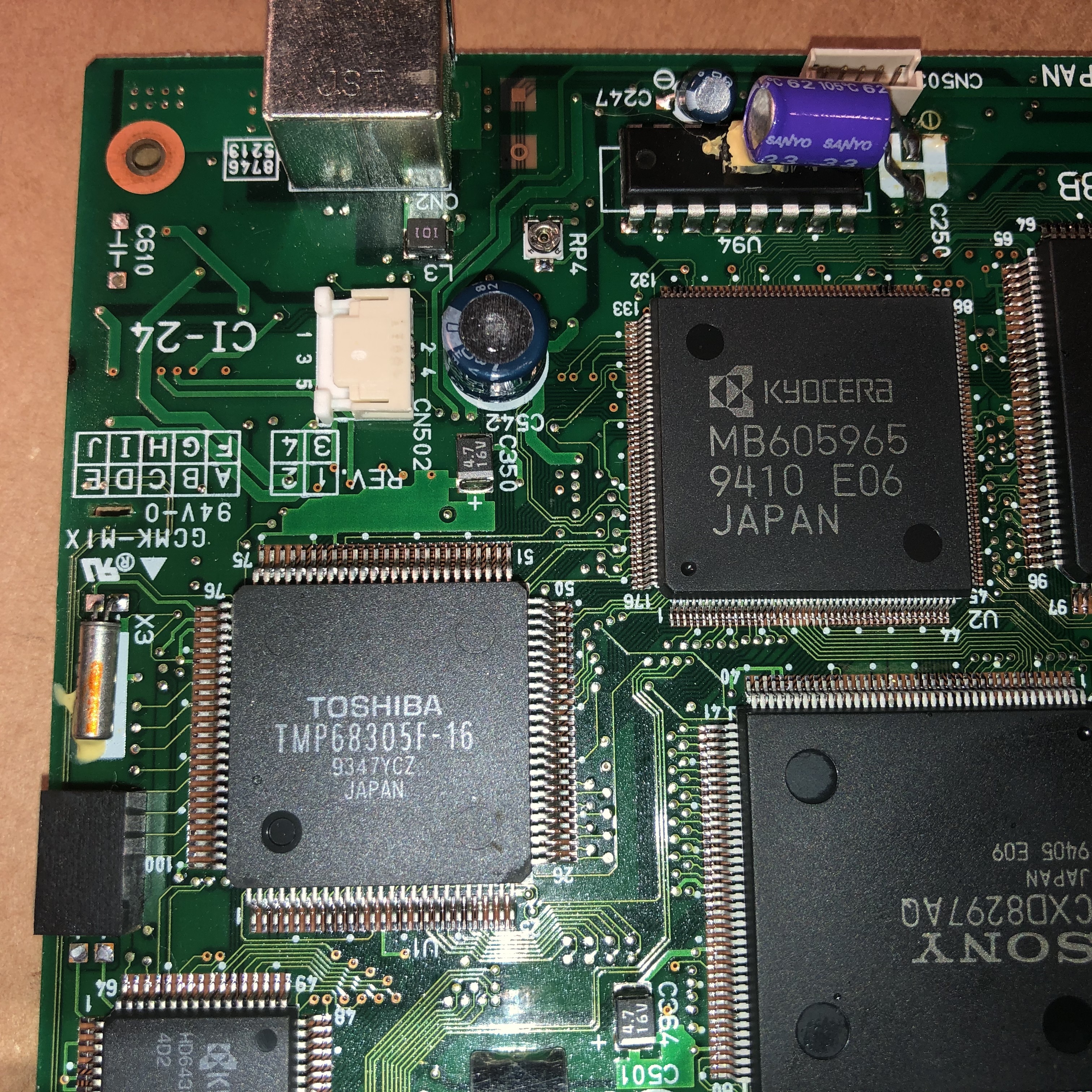

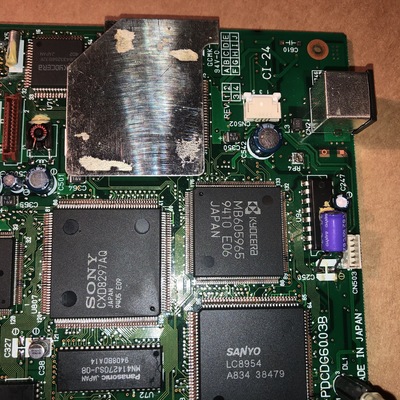

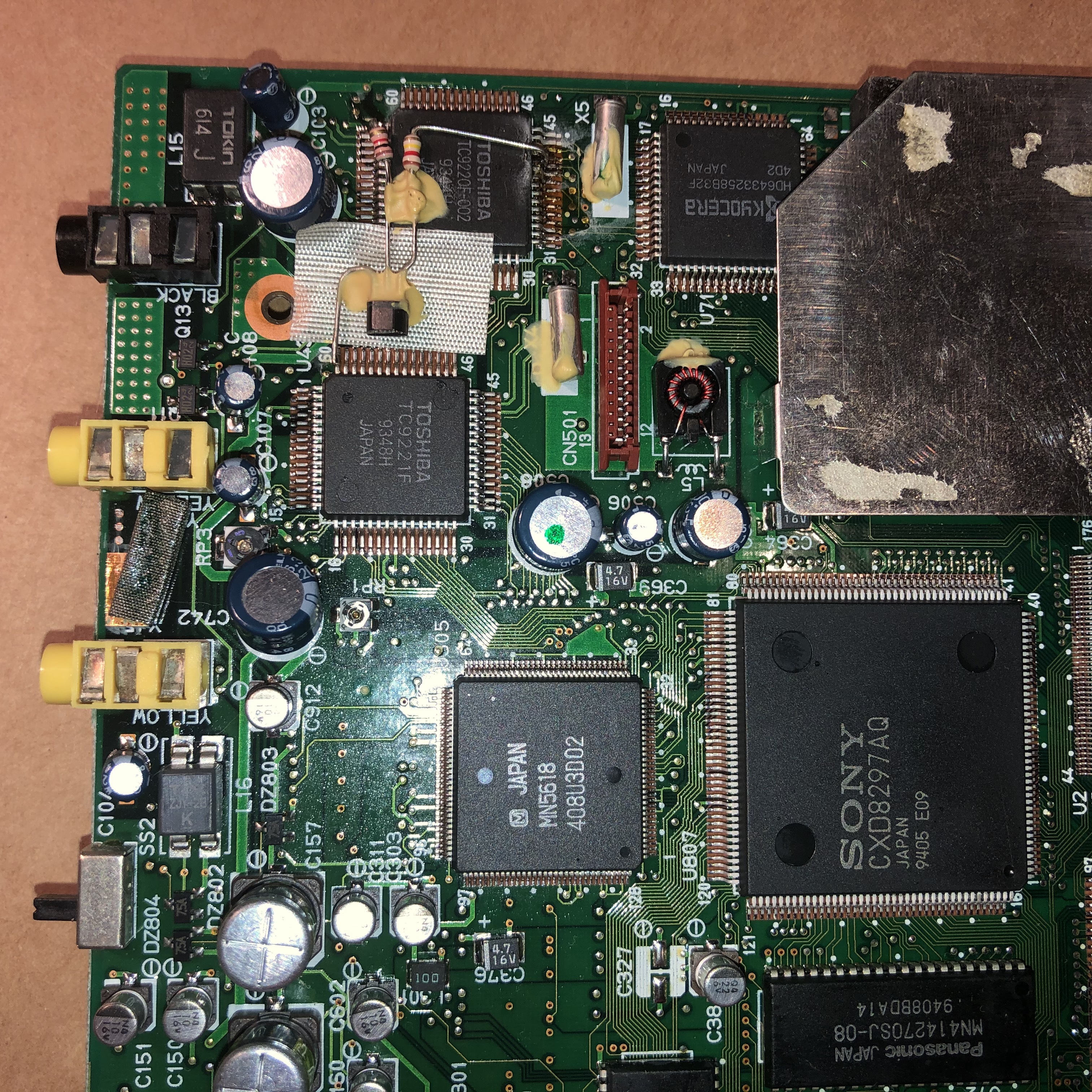

Main board top left (with CPU cover).

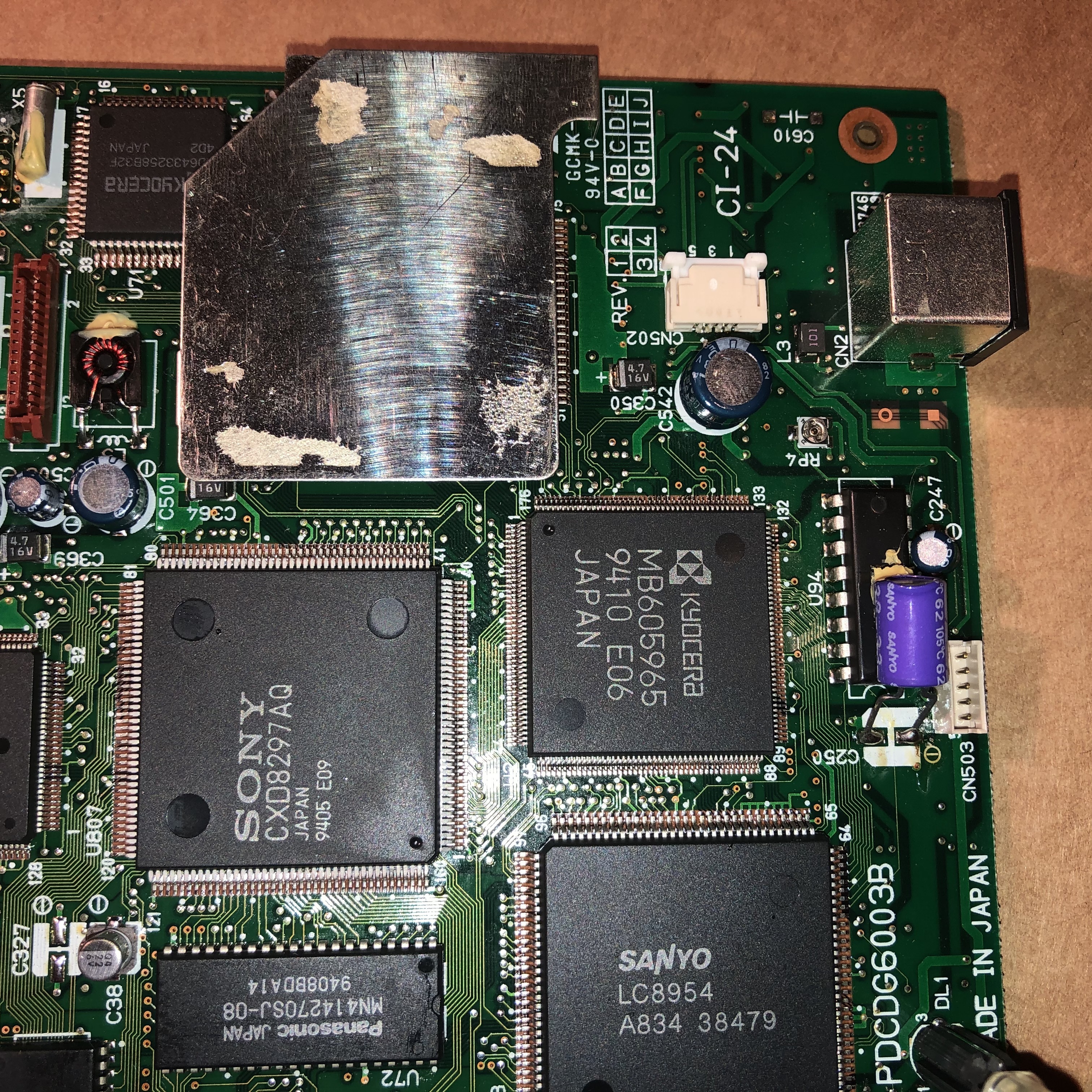

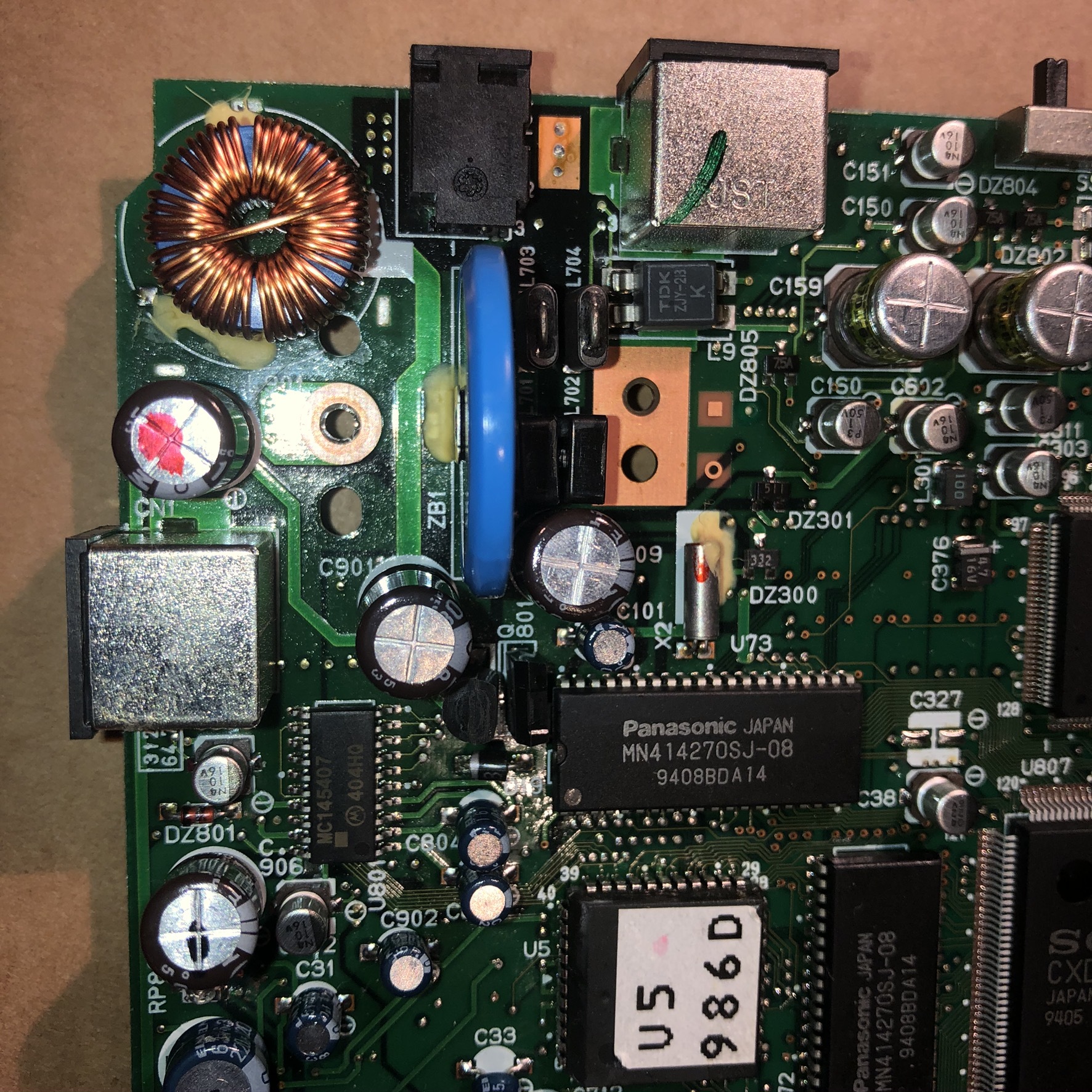

Main board top right (with CPU cover).

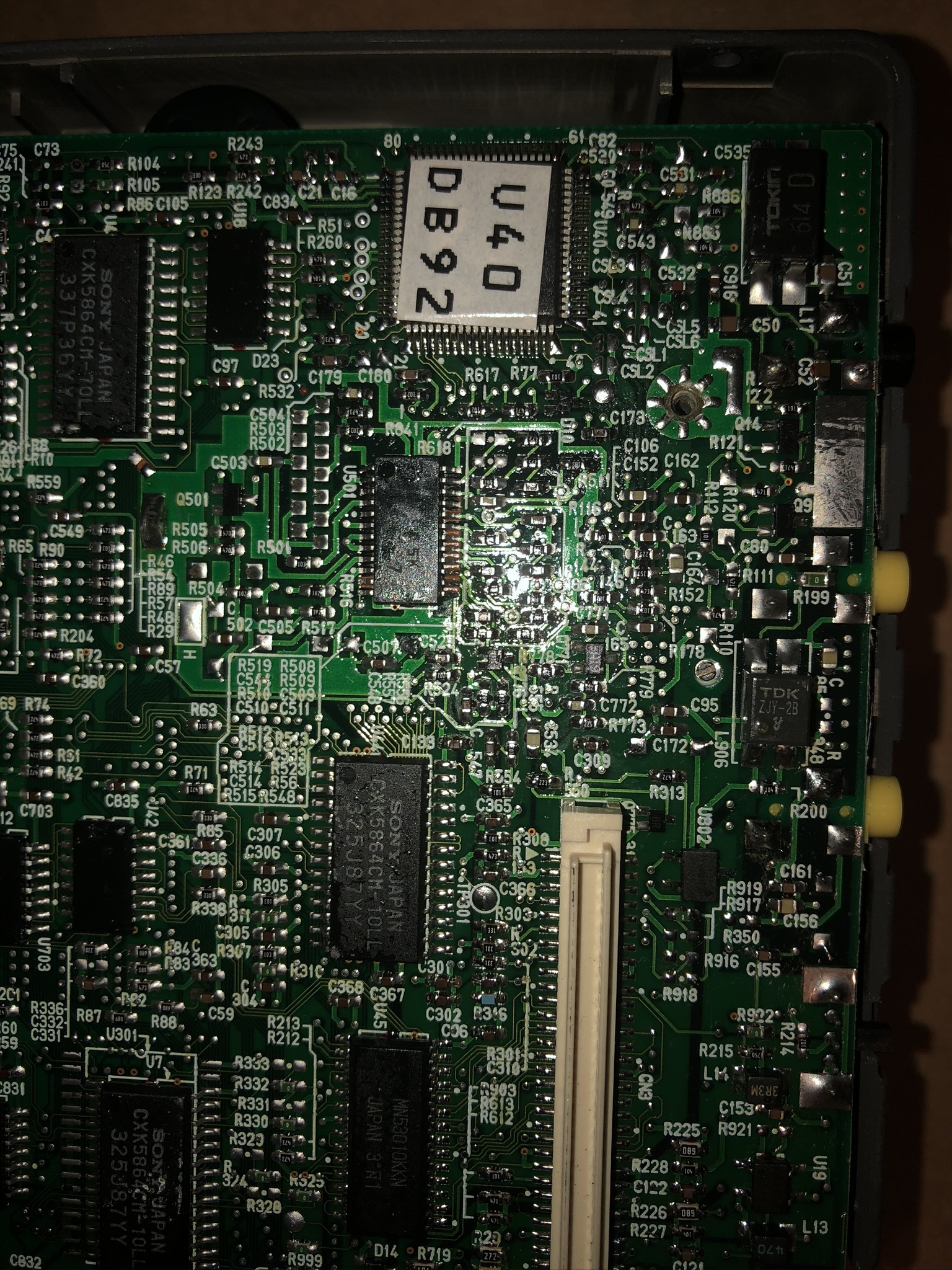

Main board up side bottom left.

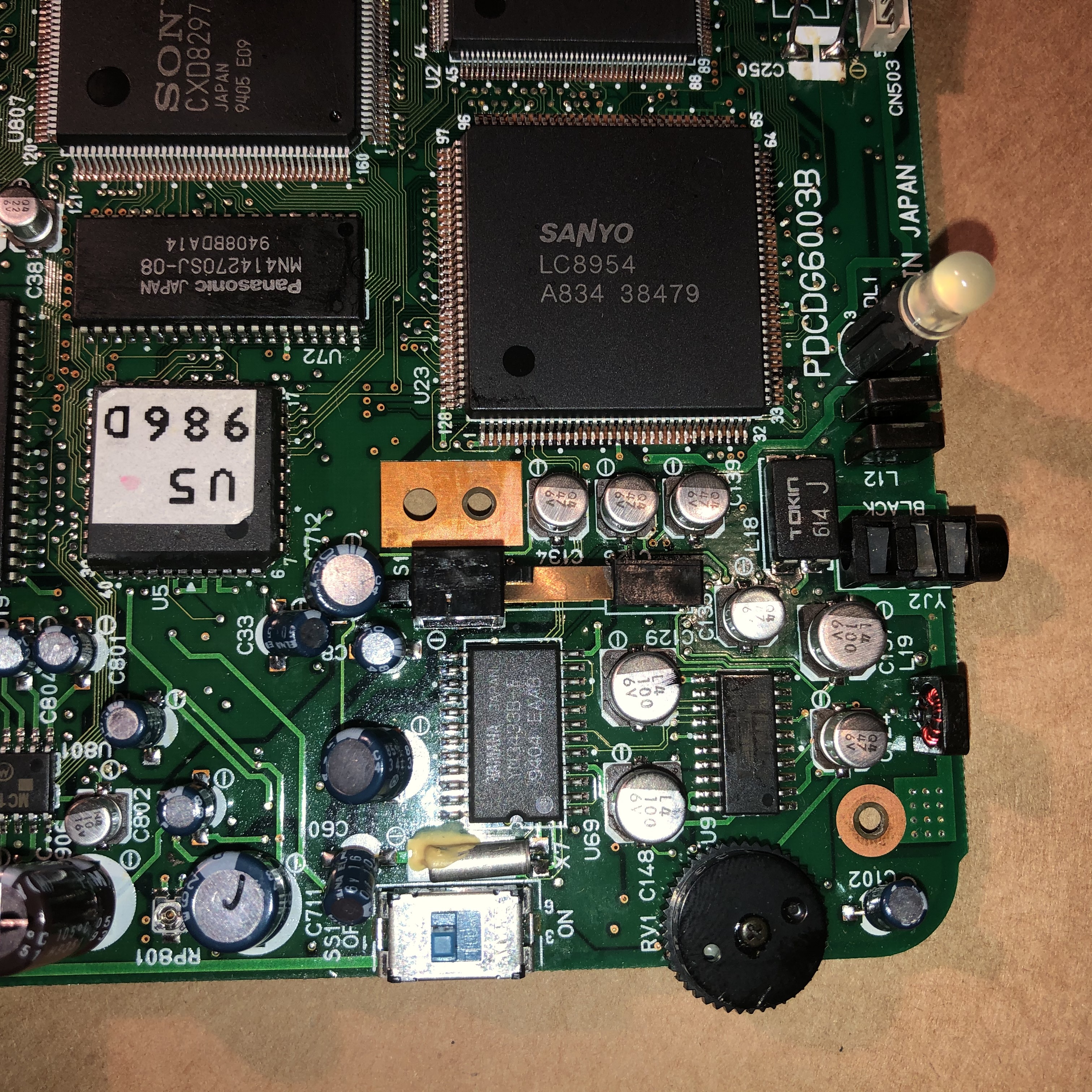

Main board up side bottom right.
CPU cover removed.

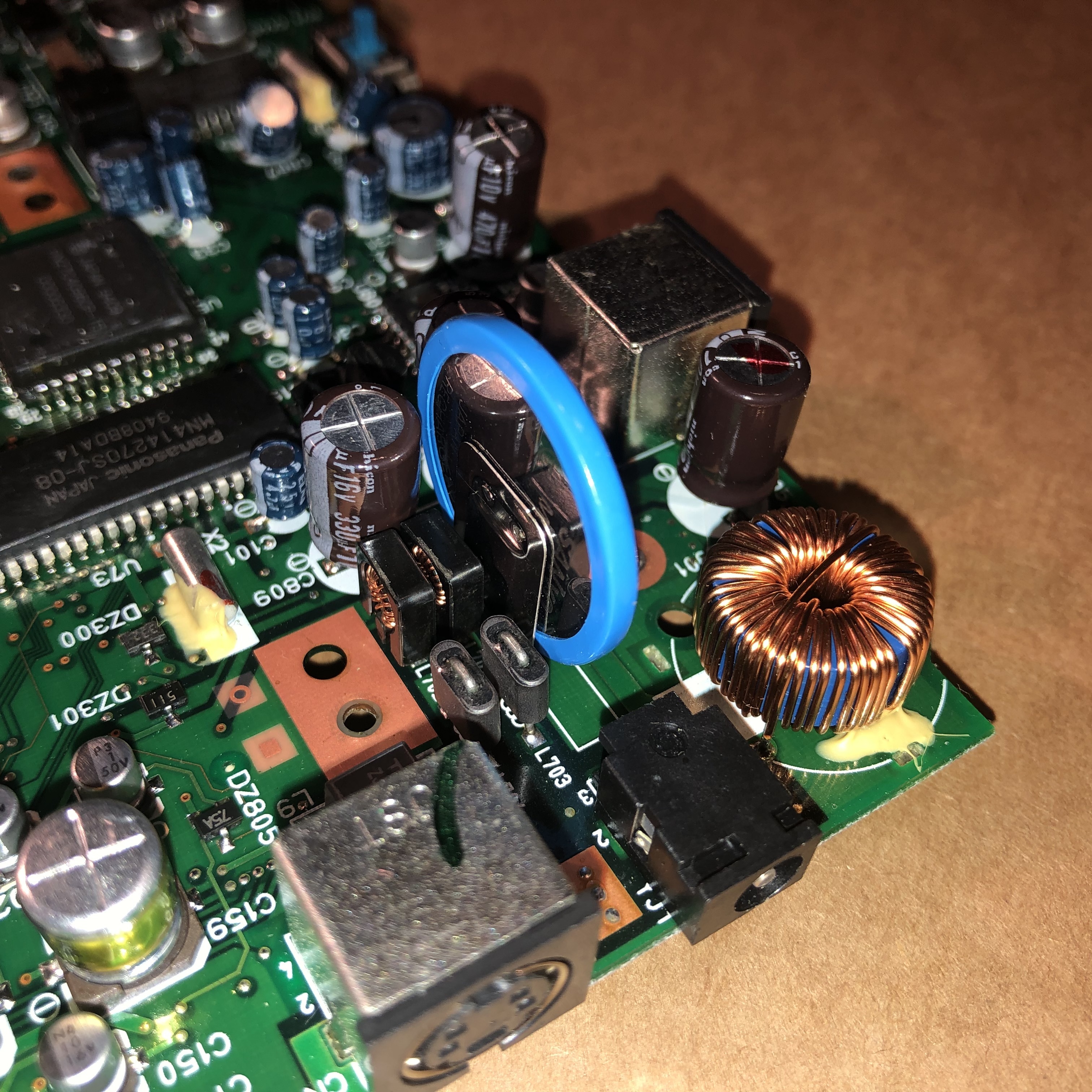

Battery cell closeup.

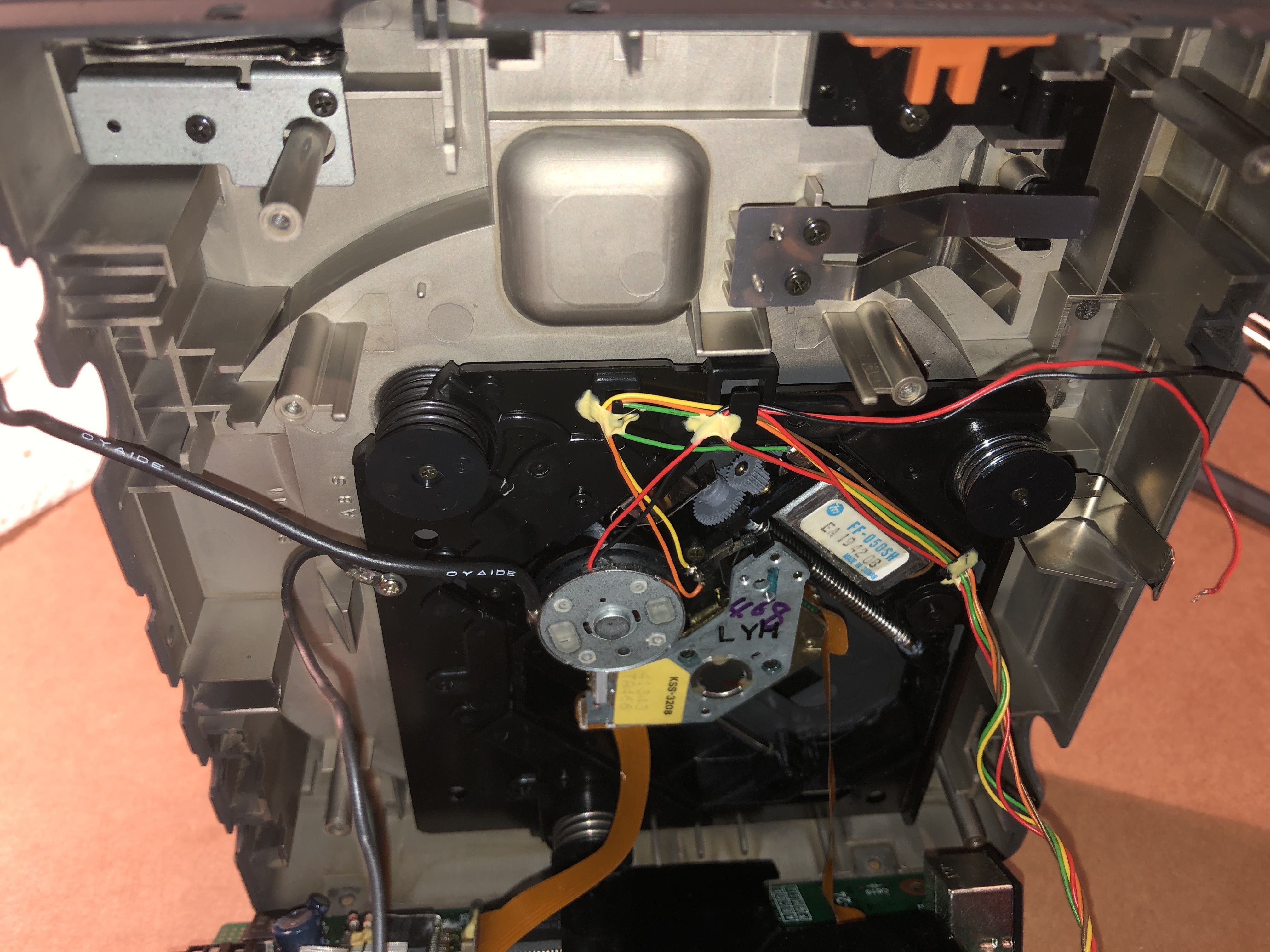

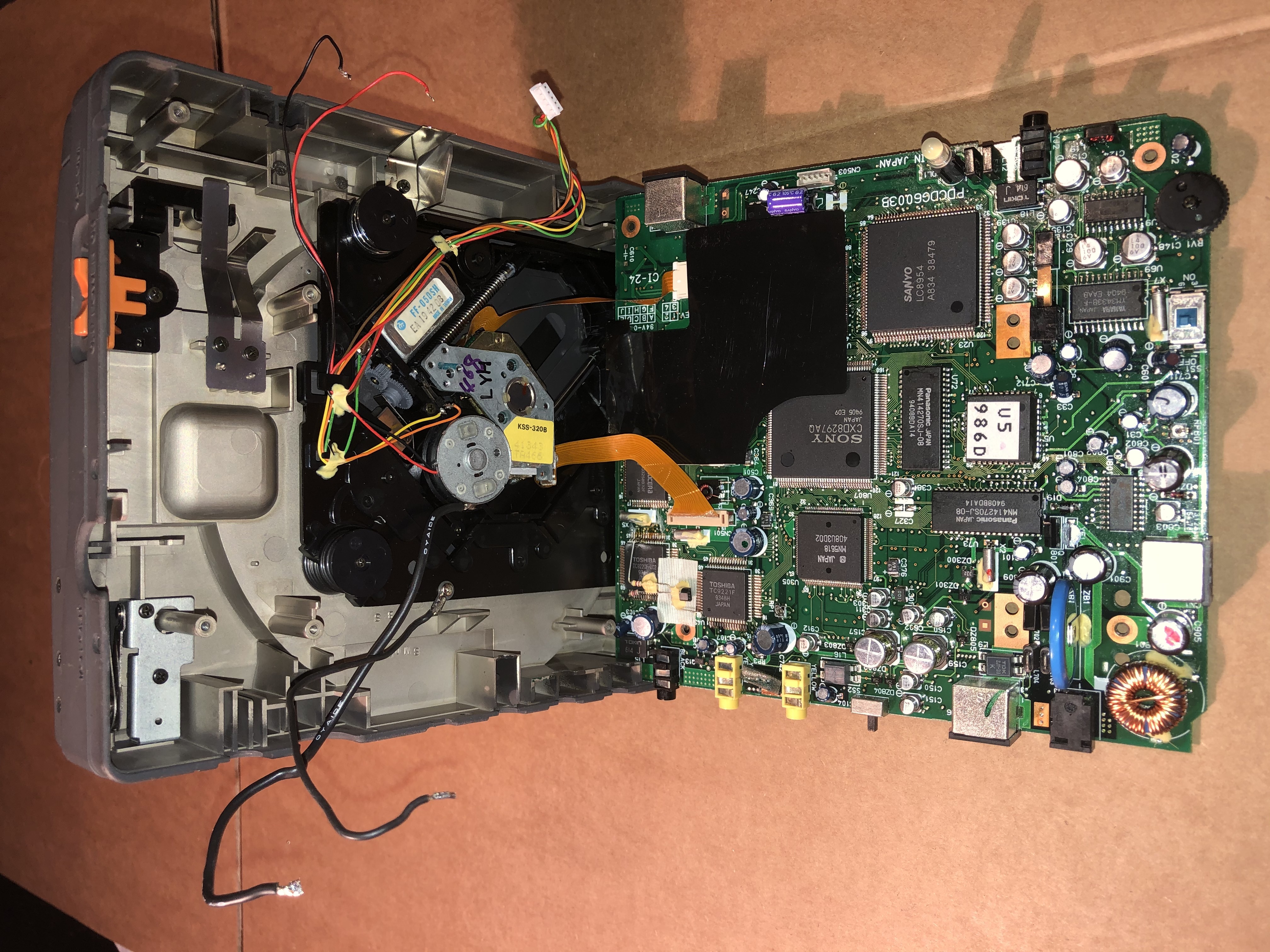

CD mechanism.

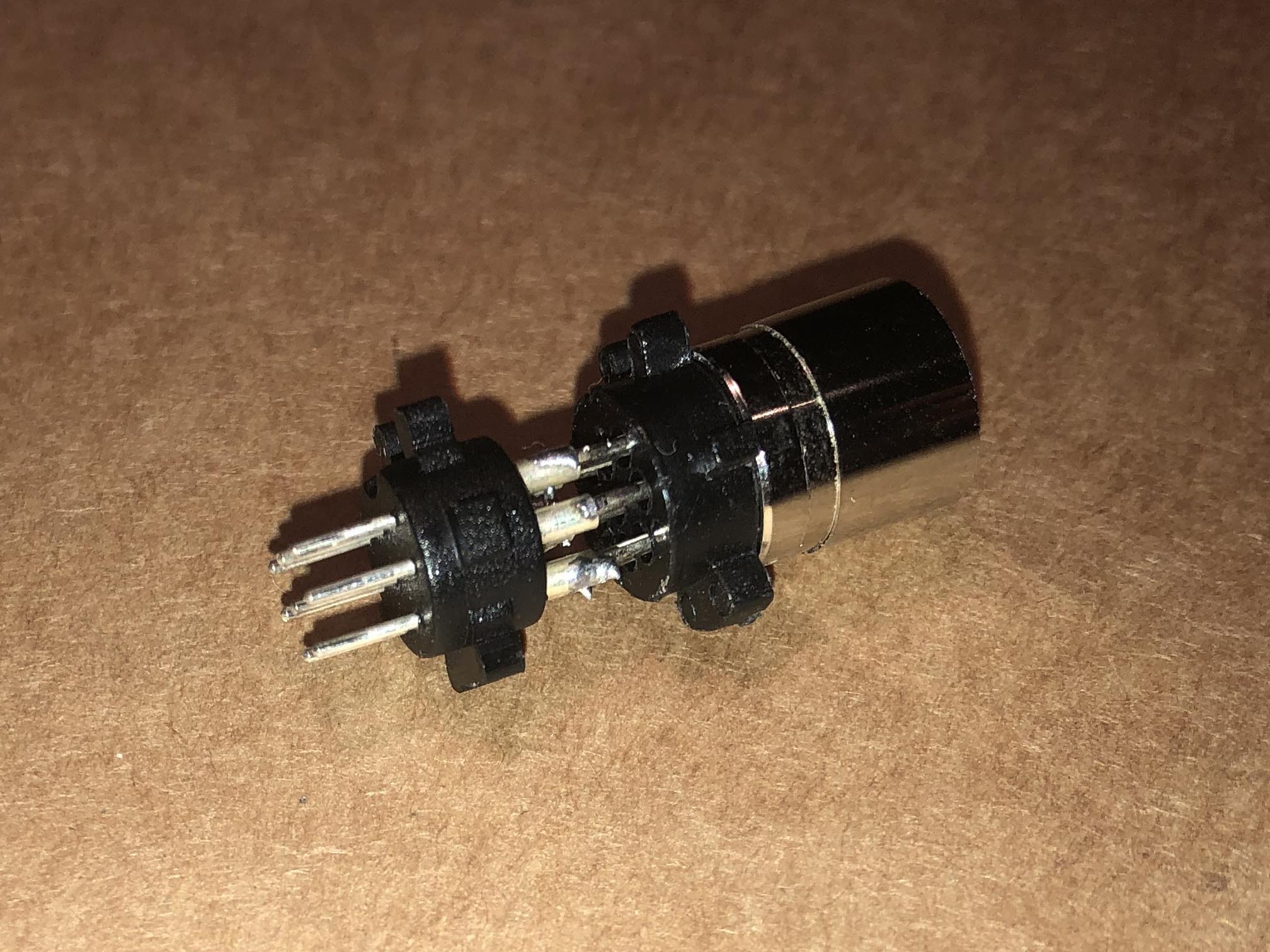

Home-made I/O PORT adaptor.
List of component markings
