Hardware Collection

Over the years I have collected quite a bit of CD-i hardware; this page is an attempt to index that collection.

CD-i Consumer Players

	Type	CDI 210/20
	Serial	005521
	12NC	not listed
	Prod.	AH00 9338 100740
	Board	Mono-II
	DVC	22ER9141/20 (VMPEG)
	Notes	missing front caddy door

	Type	CDI 210/40P
	Serial	012817
	12NC	9022 622 10406
	Prod.	AH06 9532 513884
	Board	Mono-III
	DVC	22ER9956/40 (IMPEG)
	Notes	Made in Poland

Views of CDI 210/40 switches installation.

	Type	CDI 210/40
	Serial	034365
	12NC	not listed
	Prod.	AH03 9444 6110521
	Board	Mono-III
	DVC	22ER9956/40 (IMPEG)
	Notes	Made in Belgium

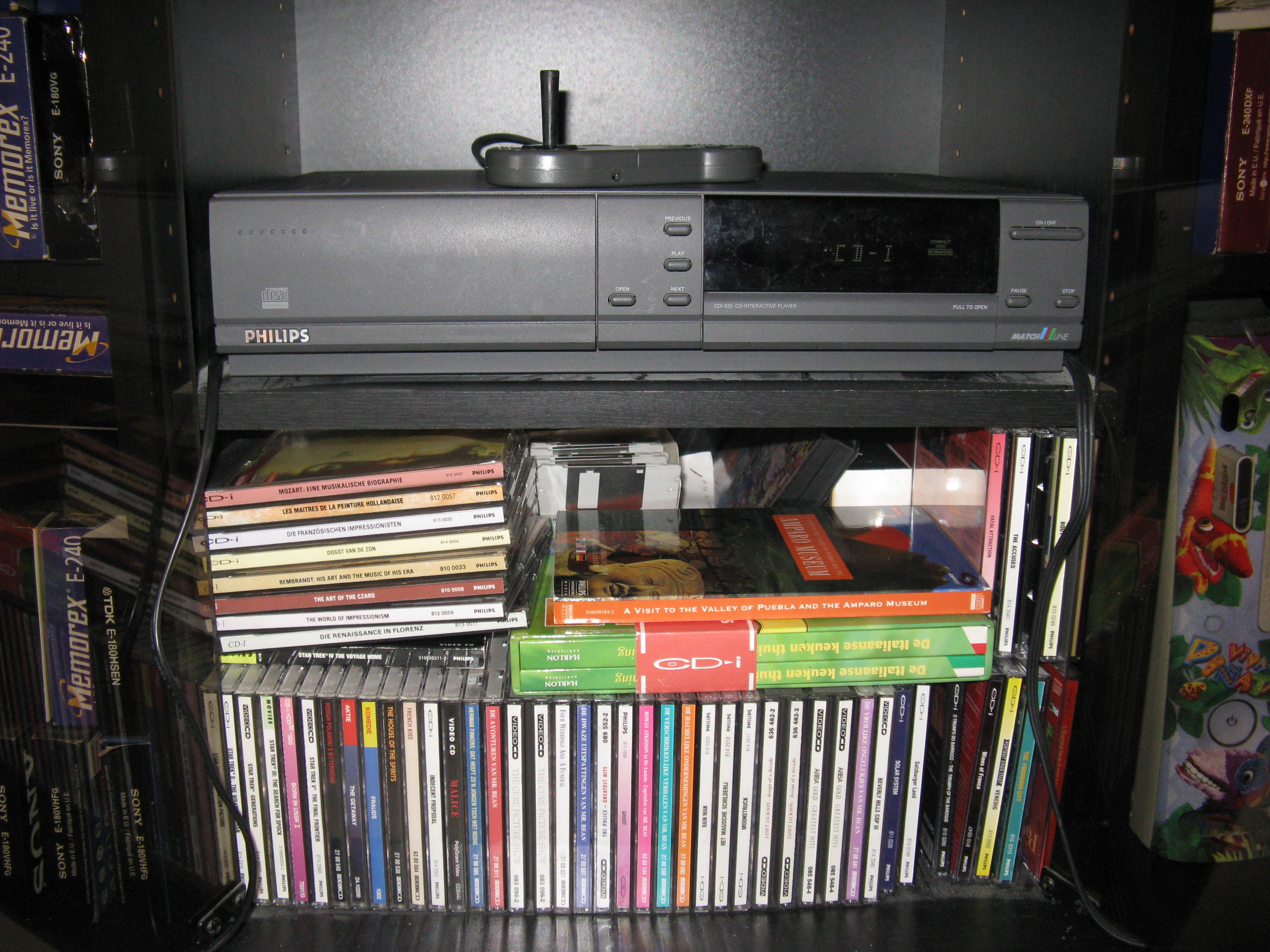

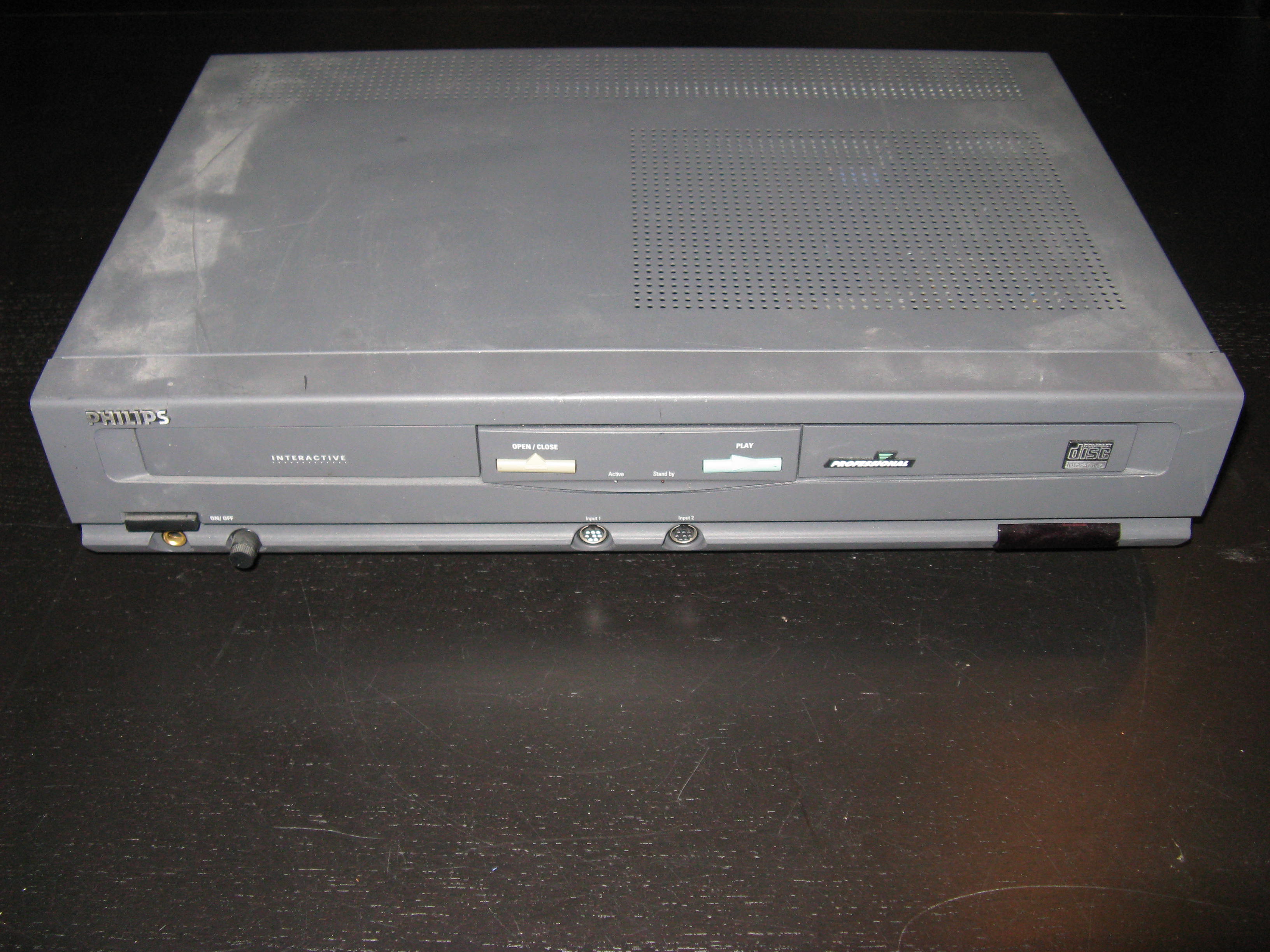

	Type	CDI 220/40
	Serial	012817
	12NC	not listed
	Prod.	AH00 9403 000852
	Board	Mono-II
	DVC	22ER9141/20 (VMPEG)
	Notes	living room workhorse

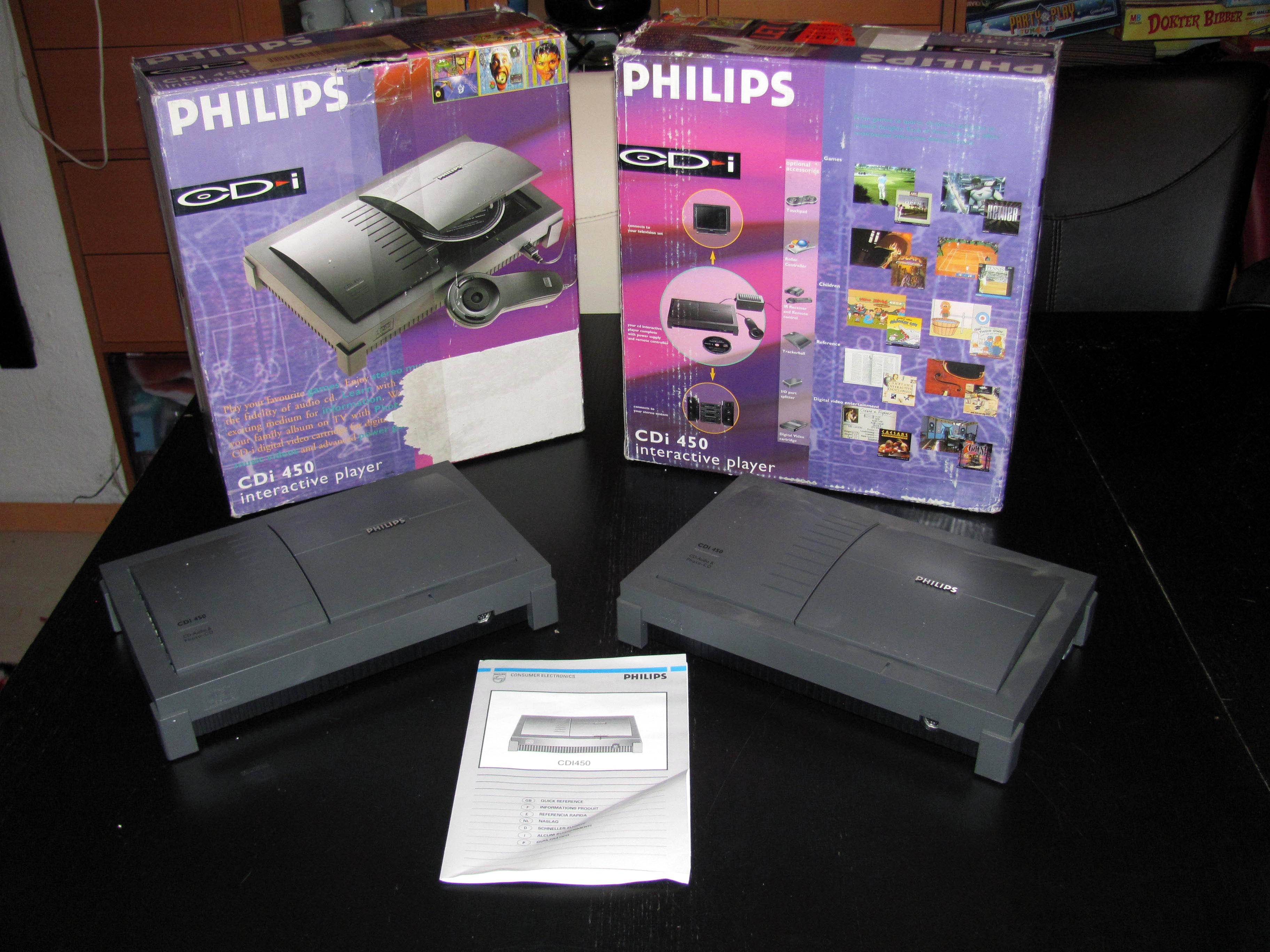

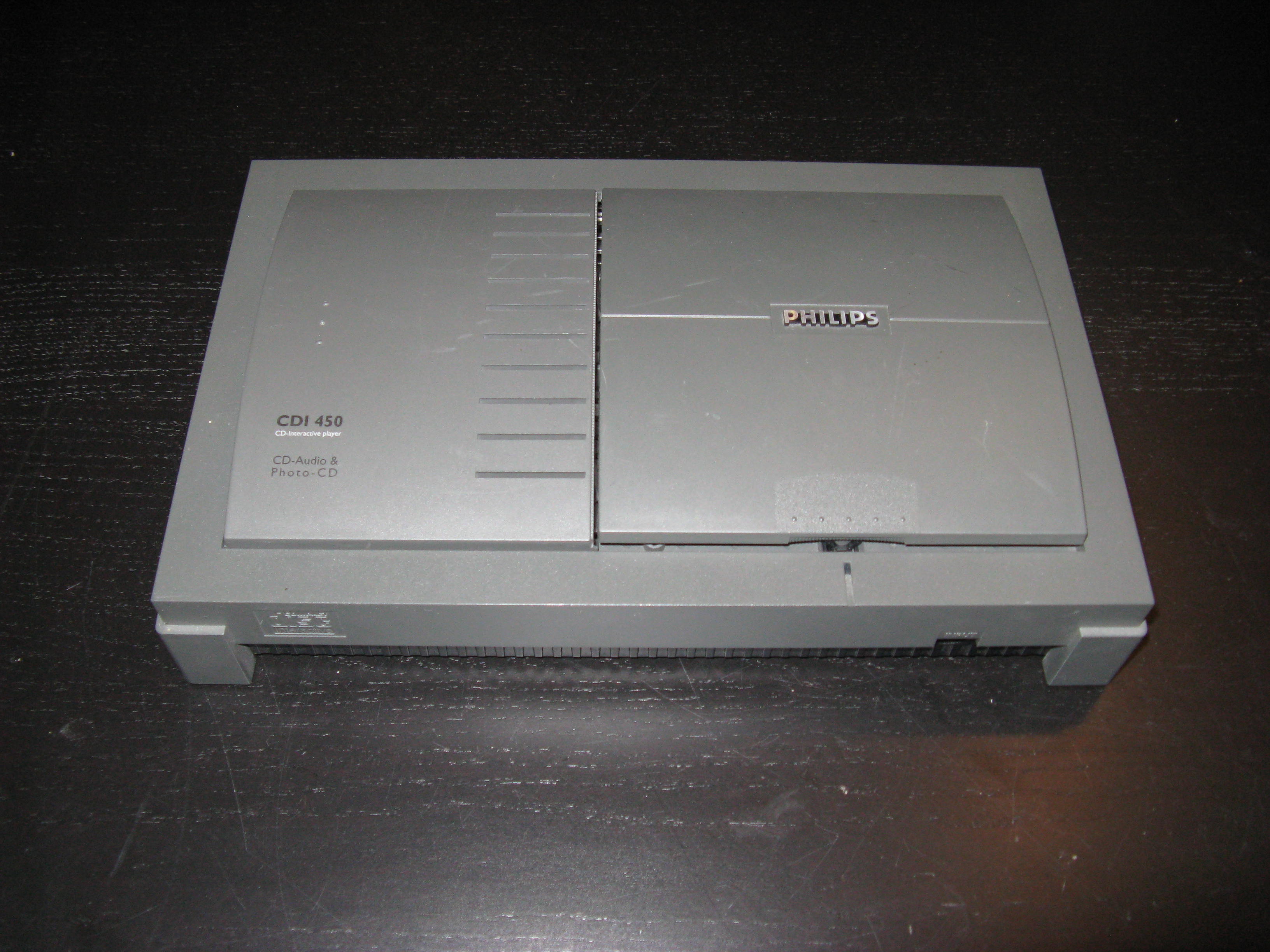

	Type	CDI 450/00
	Serial	001256
	12NC	not listed
	Prod.	AH00 9433 410122
	Board	Roboco
	DVC	none
	Notes	does not boot into player shell

	Type	CDI 450/00
	Serial	055116
	12NC	not listed
	Prod.	AH01 9451 510925
	Board	Roboco
	DVC	none
	Notes	not tested

	Type	CDI 450/xx
	Serial	055220
	12NC	not listed
	Prod.	AH01 9451 510931
	Board	Roboco
	DVC	none
	Notes	not tested

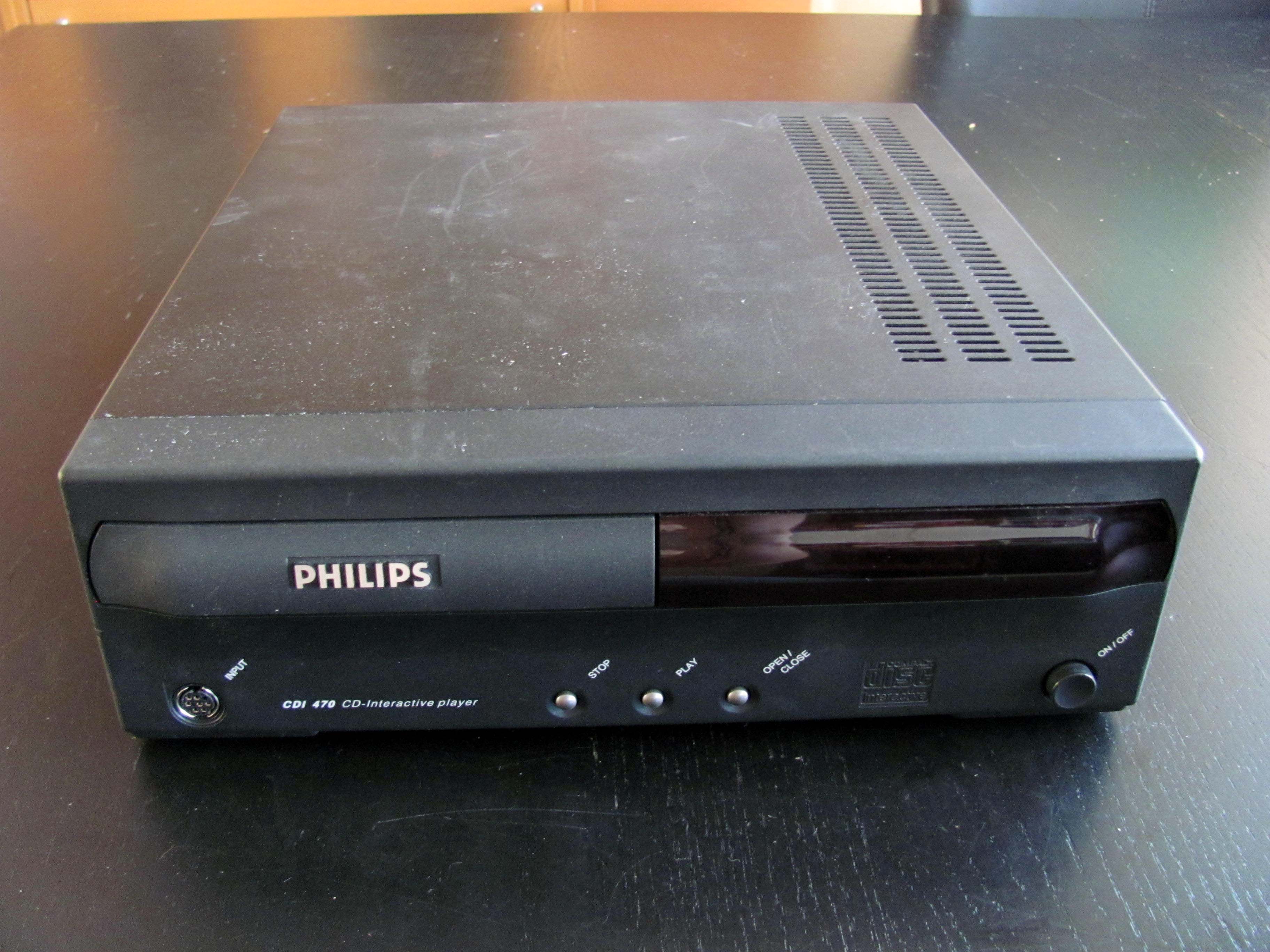

	Type	CDI 470/20
	Serial	009363
	12NC	not listed
	Prod.	6AH049548010463
	Board	Mono-IV
	DVC	22ER9956/40 (IMPEG)

	Type	CDI 660/00
	Serial	007671
	12NC	not listed
	Prod.	AH00 9919 010155
	Board	Mono-IV
	DVC	internal (IMPEG)

	Type	CDI 660/00
	Serial	007764
	12NC	not listed
	Prod.	AH00 9919 010246
	Board	Mono-IV
	DVC	internal (IMPEG)

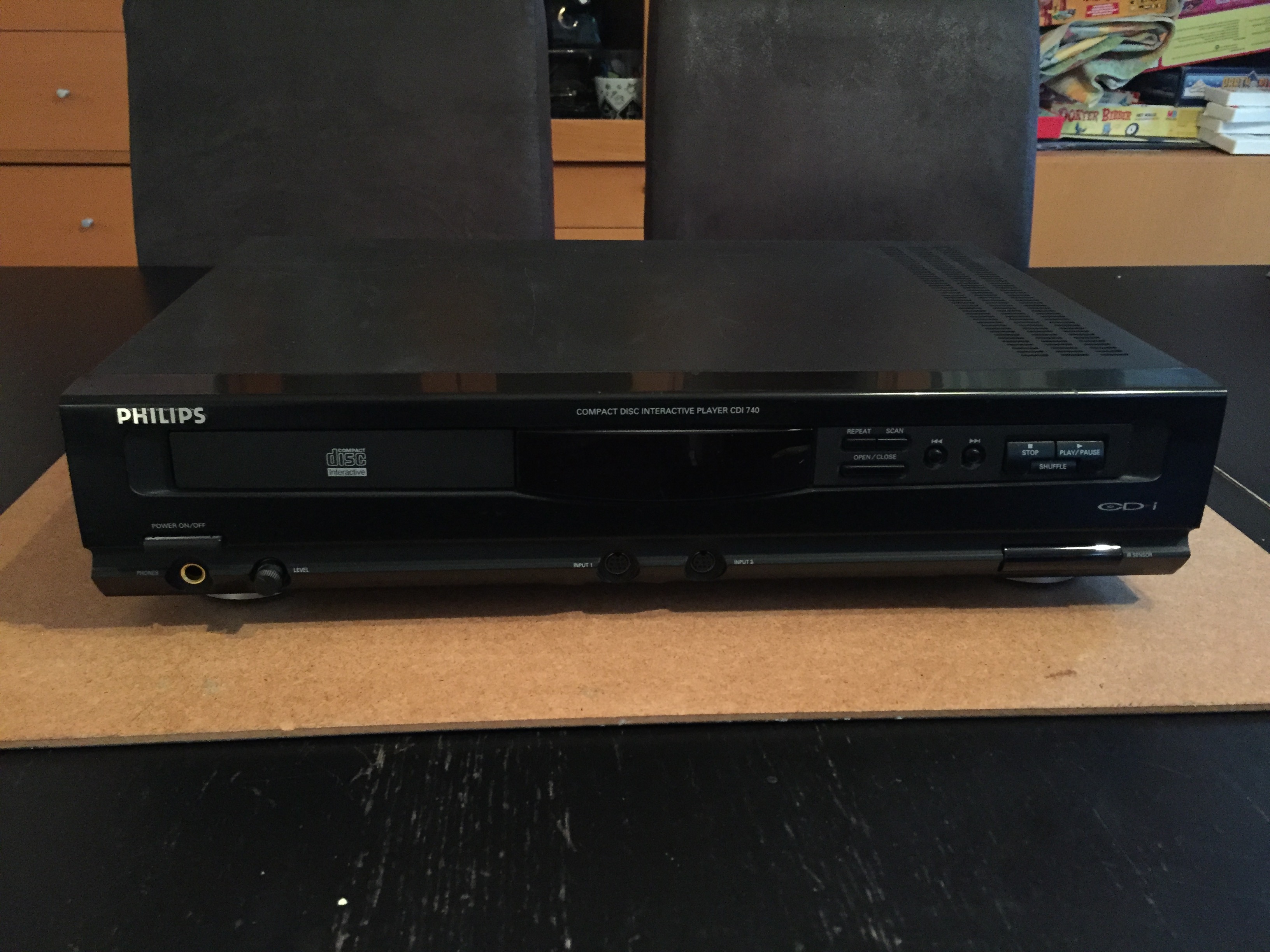

	Type	CDI 740/00
	Serial	000027
	12NC	not listed
	Prod.	AH00 9625 030118
	Board	Mono-IV
	DVC	internal (IMPEG)
	Notes	Made in Belgium

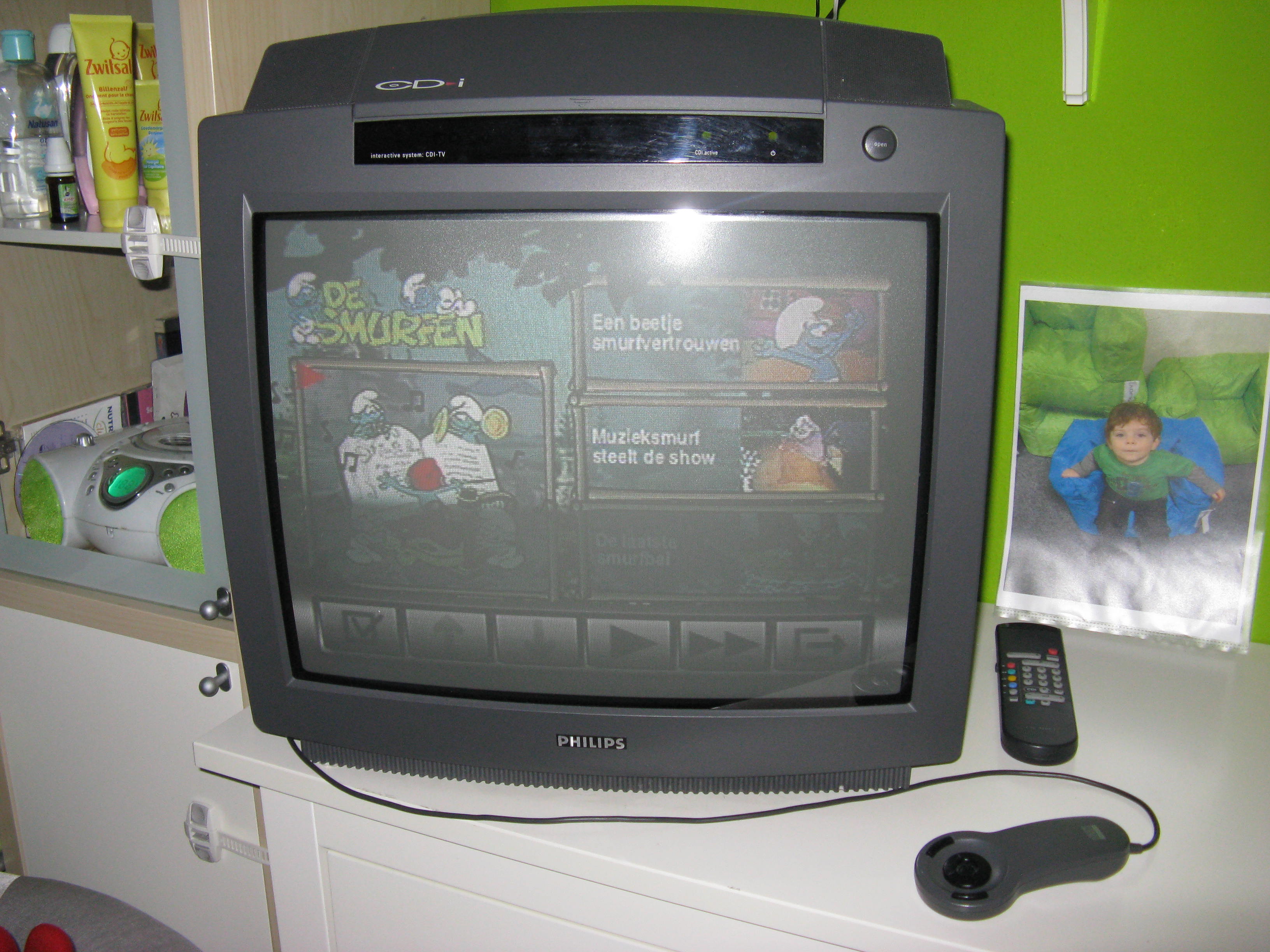

	Type	21TCDI30
	Serial	unknown
	12NC	unknown
	Prod.	unknown
	Board	Mono-III
	DVC	internal (IMPEG)
	Notes	my son's smurf machine

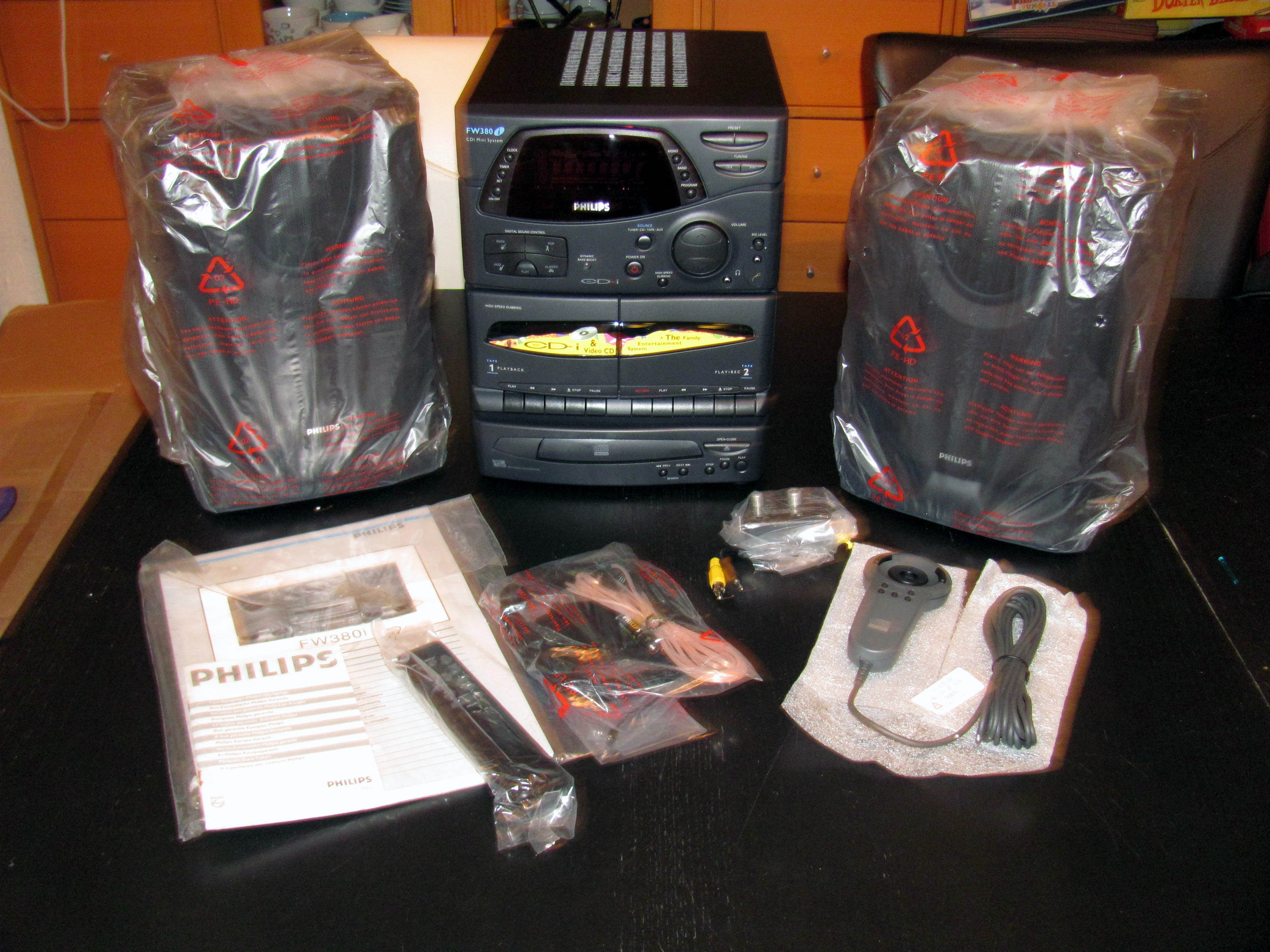

	Type	FW380i/05
	Serial	unknown
	12NC	not listed
	Prod.	AH00 9532 140482
	Board	Mono-III
	DVC	internal
	Notes	new in box

	Type	Kyocera Pro 1000S
	Serial	KC40500003
	Prod.	unknown
	See also	More pictures
	Board	Kyocera
	DVC	not possible
Notes	recent acquisition

	Type	Knowlogy K2000-MSS
	Serial	709ZH05488
	Prod.	unknown
	See also	More pictures
	Board	LG
	DVC	on-board IMPEG
Notes	recent acquisition

CD-i Development Players

	Type	CDI 180/37 181/37
	Serial 180	JM10013101115 CD-I
	Serial 181	JM10008201674 MMC
	12NC	not applicable
	Prod.	not applicable
	See also	More pictures (external link)
	Board	JNMS
	DVC	not possible
	Notes	uses 120V power

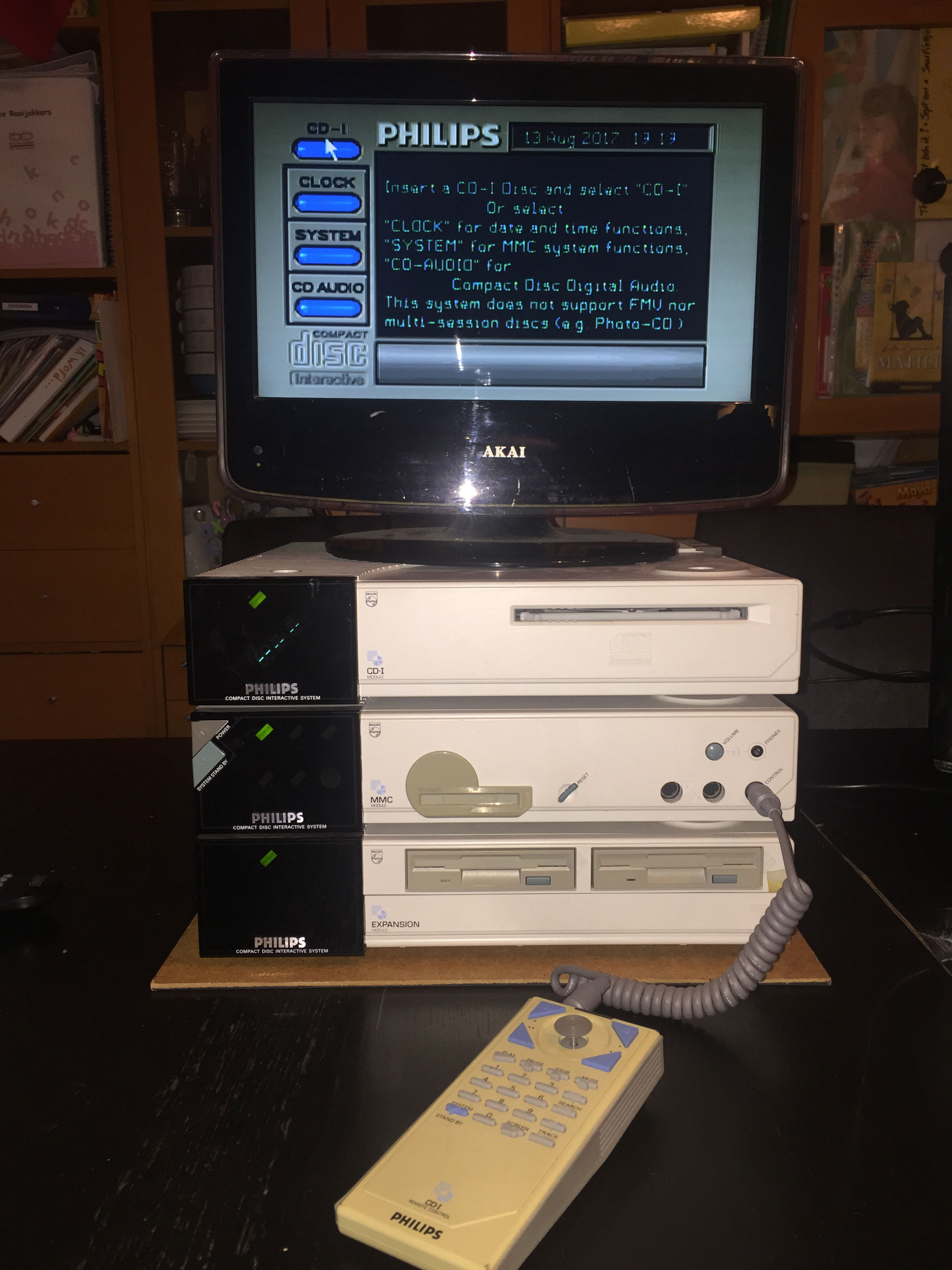

	Type	CDI 180/20 181/20 182/37
	Serial 180	JM10014101237 CD-I
	Serial 181	JM11012202730 MMC
	Serial 182	JM11020201529 EXP
	12NC	not applicable
	Prod.	not applicable
	Board	JNMS
	DVC	not possible
	Notes	acquired locally

Views of Erroneous' CDI 180/20 181/20 182/00 set.

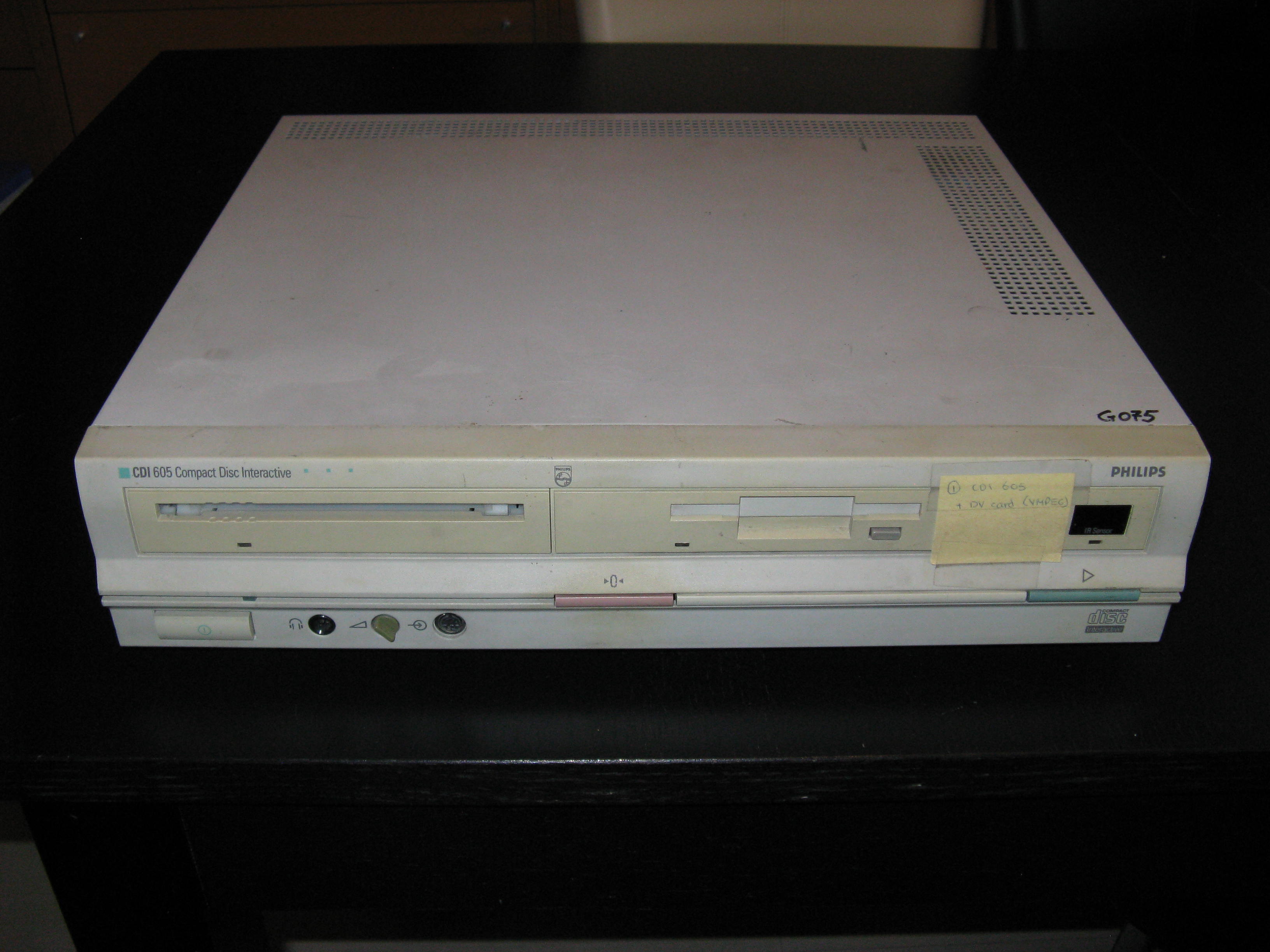

	Type	CDI 605/00
	Serial	00461
	12NC	9022 626 05009
	Prod.	AH02 9326 000026
	See also	More pictures
	Board	Mini-MMC
	DVC	internal (VMPEG)
	Notes	does not boot into player shell

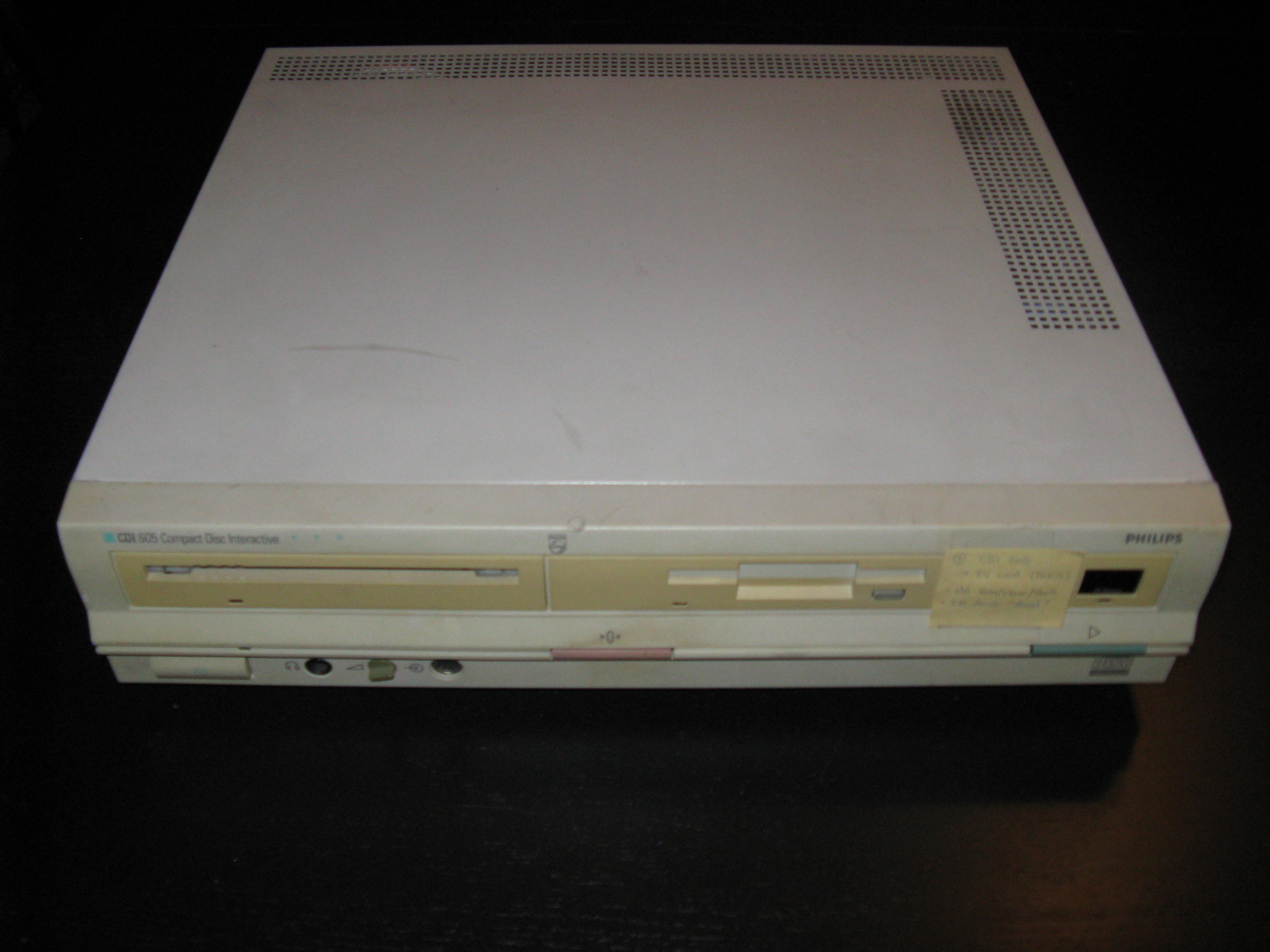

	Type	CDI 605/17
	Serial	00399
	12NC	9022 626 050179
	Prod.	AH02 9331 000004
	Board	Mini-MMC
	DVC	internal (Gate Array MPEG rev 2)
	Notes	old ROM revisions

Views of Erroneous' I2M PCI/CDi card.

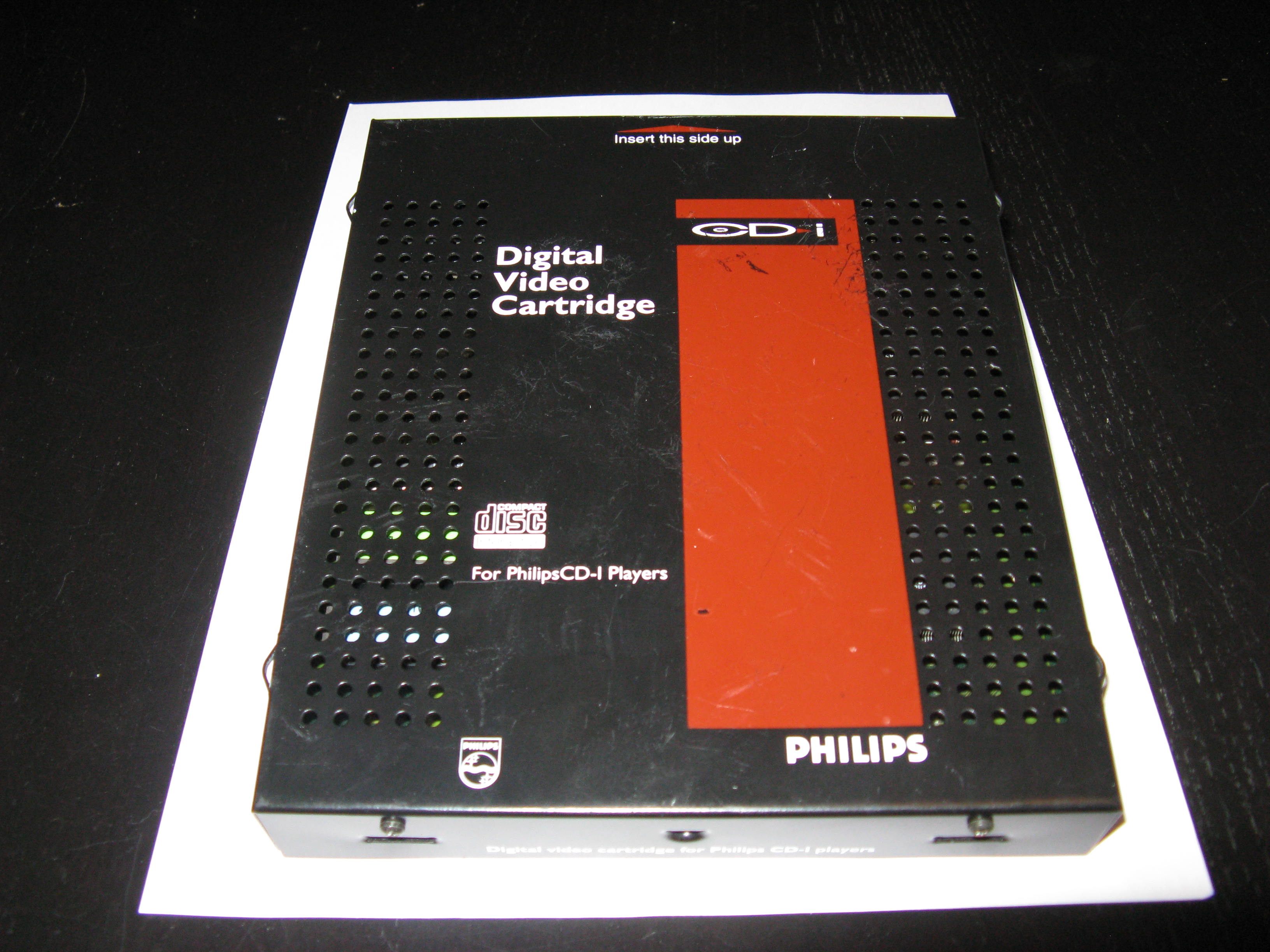

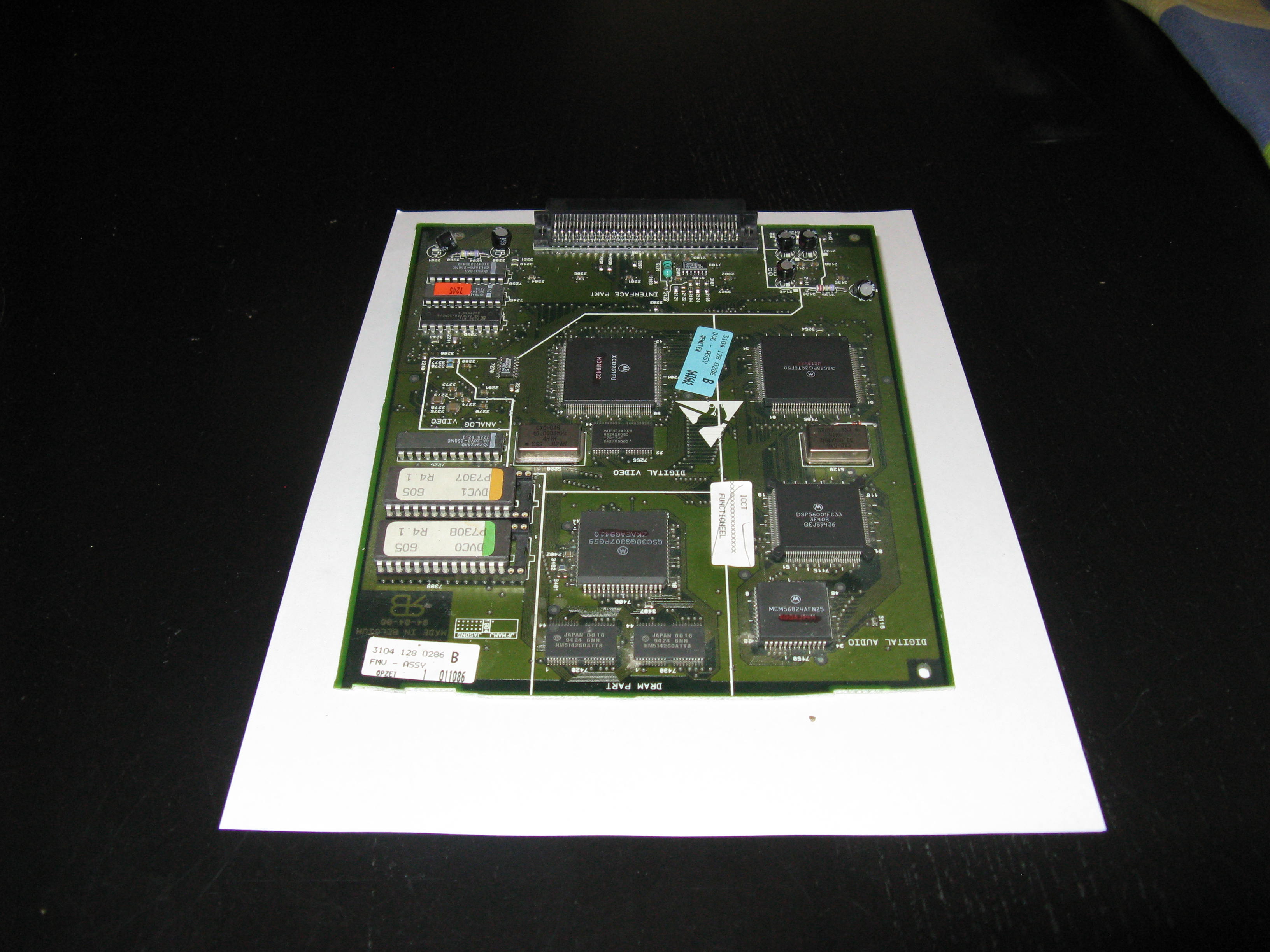

Digital Video Cartridges

	Type	CDI605/17 internal DVC
	12NC	no sticker
	Prod.	no sticker
	Board	GA MPEG r2

	Type	22ER9141/00
	12NC	9022 729 14101
	Prod.	AH01 9348 520120
	Board	GA MPEG r2 3104 128 0234
	Serial	000042

	Type	22ER9141/00
	12NC	9022 729 14101
	Prod.	AH03 9421 000209
	Board	GA MPEG r3 3104 128 0234
	Serial	010050

	Type	22ER9141/20
	12NC	9022 729 14121
	Prod.	AH00 9513 610566
	Board	VMPEG 3104 128 0286
	Serial	000464

	Type	22ER9141/20
	12NC	9022 729 14121
	Prod.	AH00 9515 610872
	Board	VMPEG 3104 128 0286
	Serial	unknown

	Type	CDI605/00 internal DVC
	12NC	no sticker
	Prod.	no sticker
	Board	VMPEG 3104 128 0286
	Serial	011086

	Type	22ER9956/40
	12NC	9022 729 95641
	Prod.	AH00 9548 622957
	Board	IMPEG 3104 128 0289
	Serial	019227

	Type	CDI660/00 internal DVC
	12NC	no sticker
	Prod.	no sticker
	Board	IMPEG 3104 128 0289
	Serial	010943

	Type	CDI740/00 internal DVC
	12NC	no sticker
	Prod.	no sticker
	Board	IMPEG 3104 128 0289
	Serial	014354

no image yet	Type	FW380i/05 internal DVC
	12NC	no sticker
	Prod.	no sticker
	Board	IMPEG

CD-i Peripherals

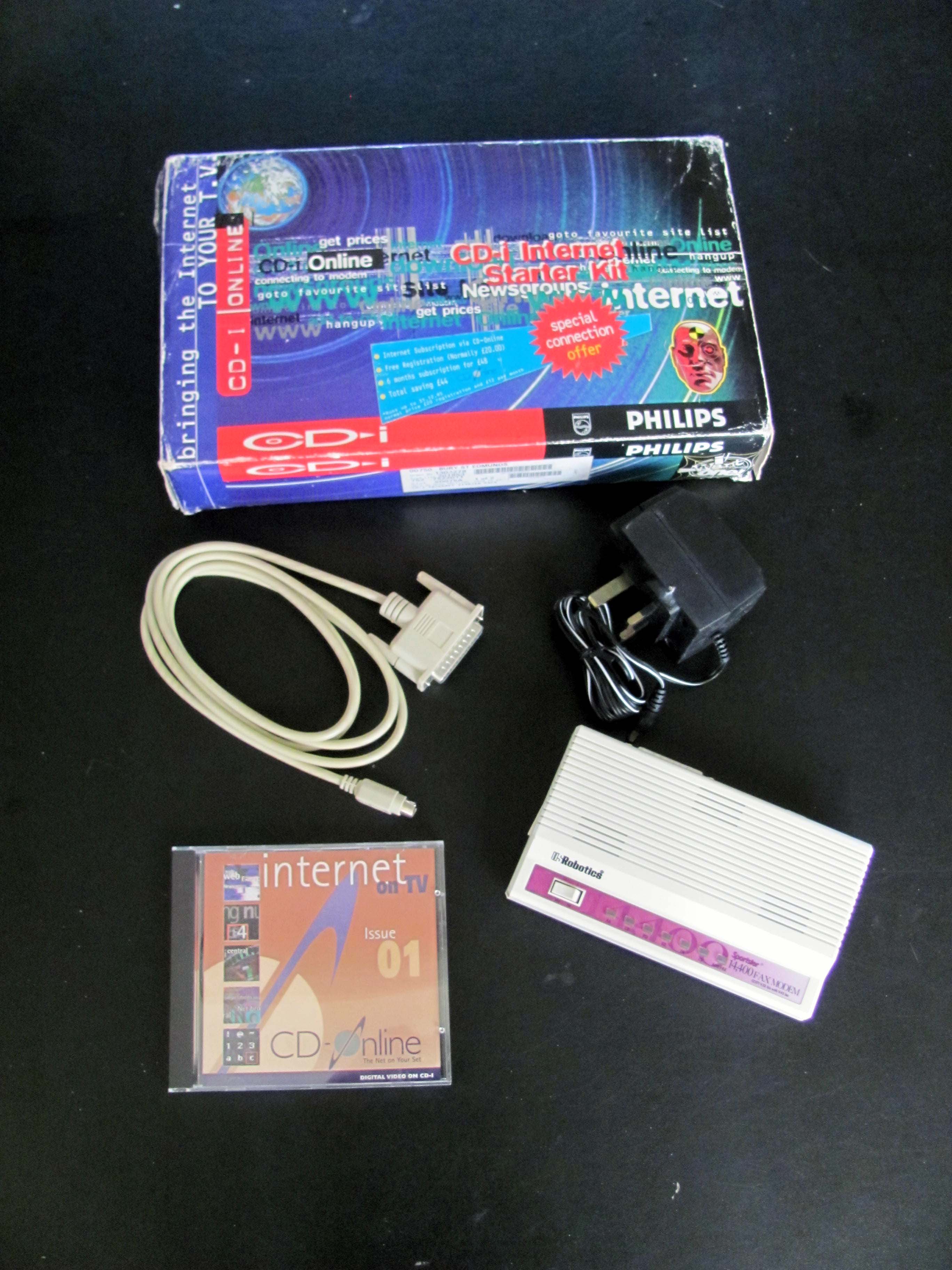

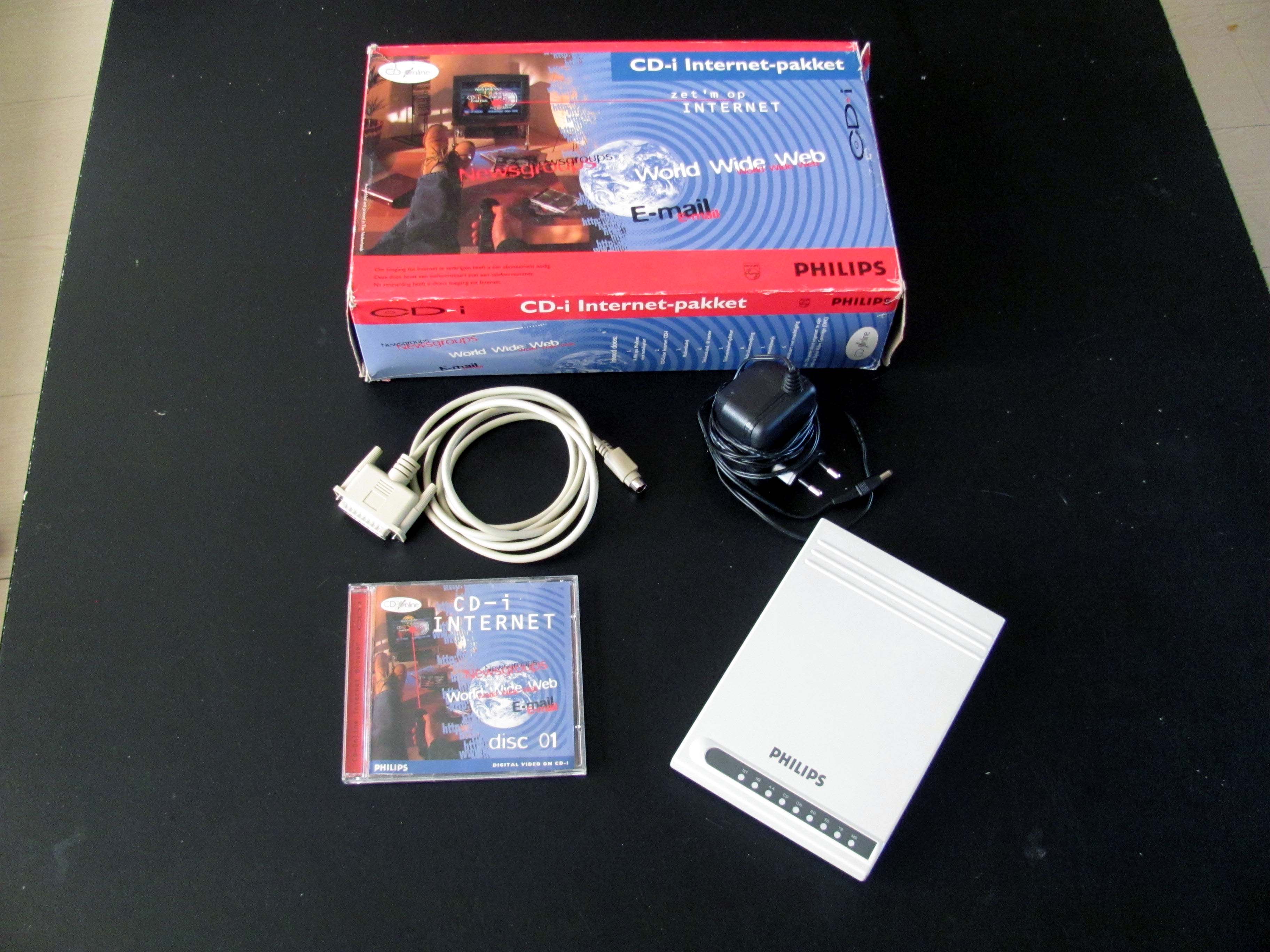

	Type	CD-i Modem
	Manufacturer	Philips
	Model	PCA14EM
	Serial	009601002116

	Type	CD-i Modem
	Manufacturer	US Robotics
	Model	Sportster 14,400
	Serial	0102680241291194

	Type	CD-i Keyboard
	Model	22ER9041
	12NC	not listed
	Serial	not listed

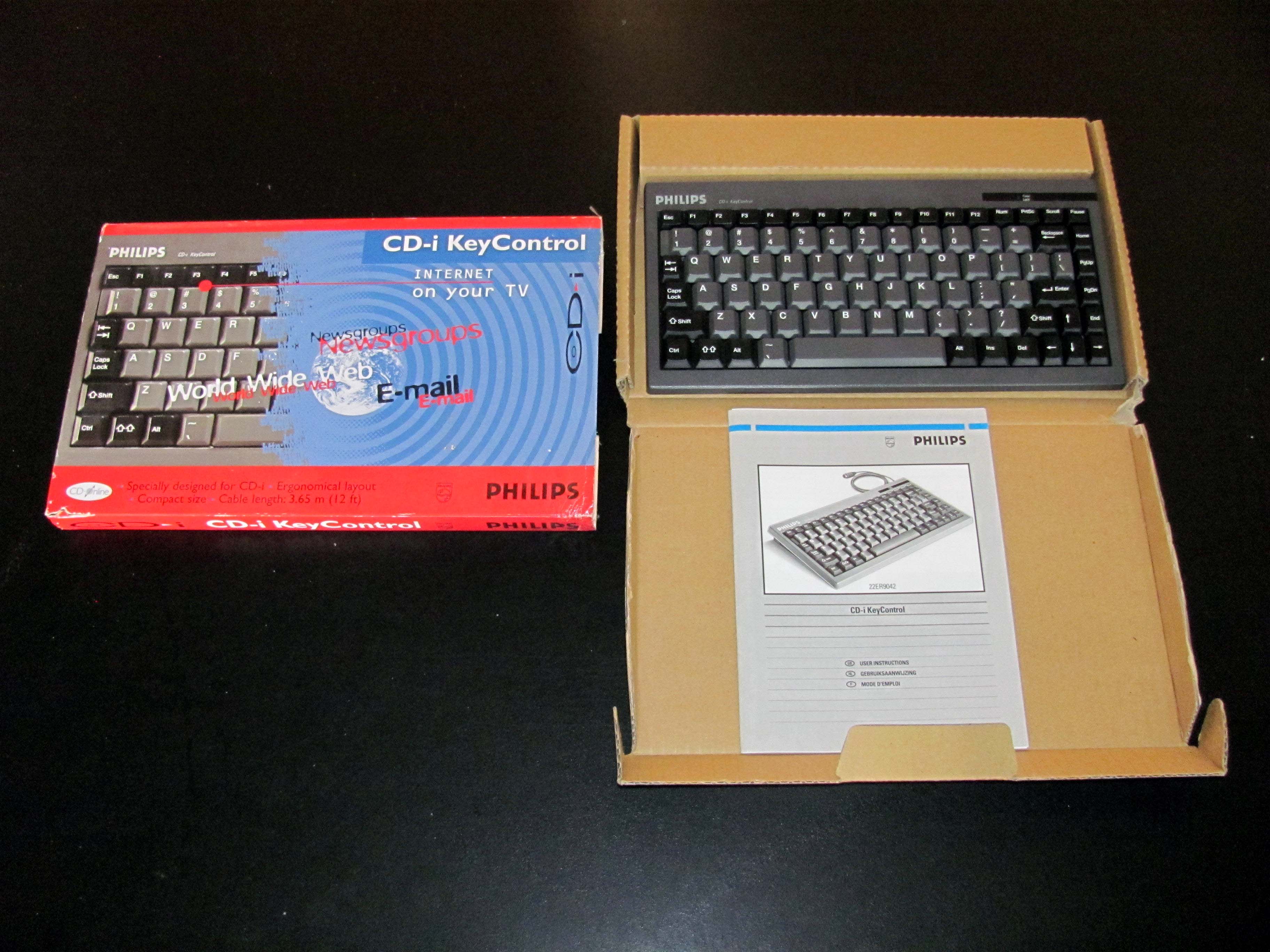

	Type	CD-i KeyControl
	Model	22ER9042/00
	12NC	9022 729 04201
	Serial	1A009627 000185
	Notes	complete in box

	Type	CD-i KeyControl
	Model	22ER9042/00
	12NC	9022 729 04201
	Serial	1A009627 002339

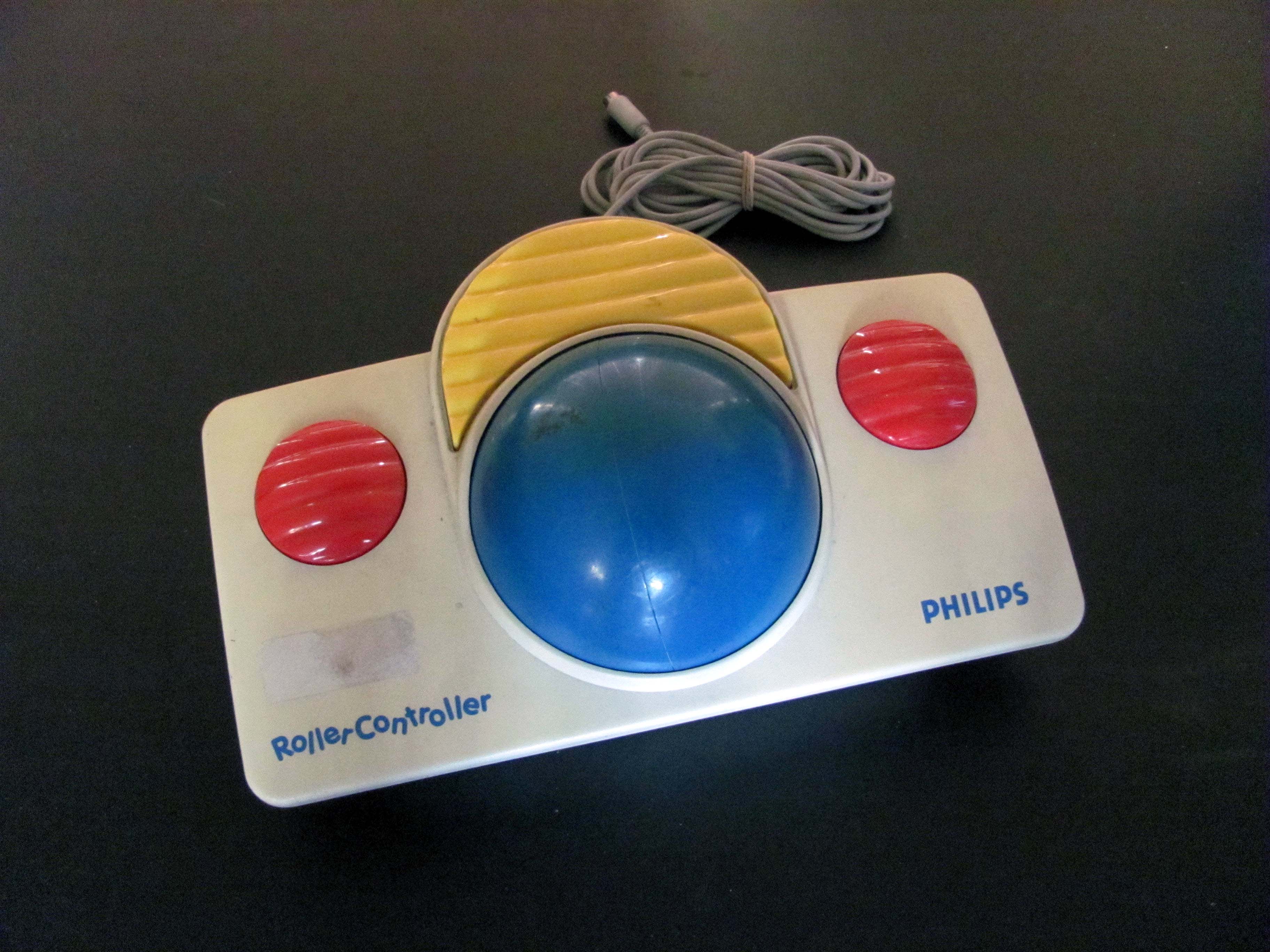

	Type	CD-i Roller Controller
	Model	22ER9012/00
	12NC	9022 729 01201
	Serial	1A009204 005424

	Type	CD-i Peacekeeper Revolver
	Model	22ER9020/00
	12NC	9022 729 02001
	Serial	1A009443

	Type	CD-i 180 Remote Control
	Model	22ER9050 ?
	12NC	not listed
	Serial	not listed

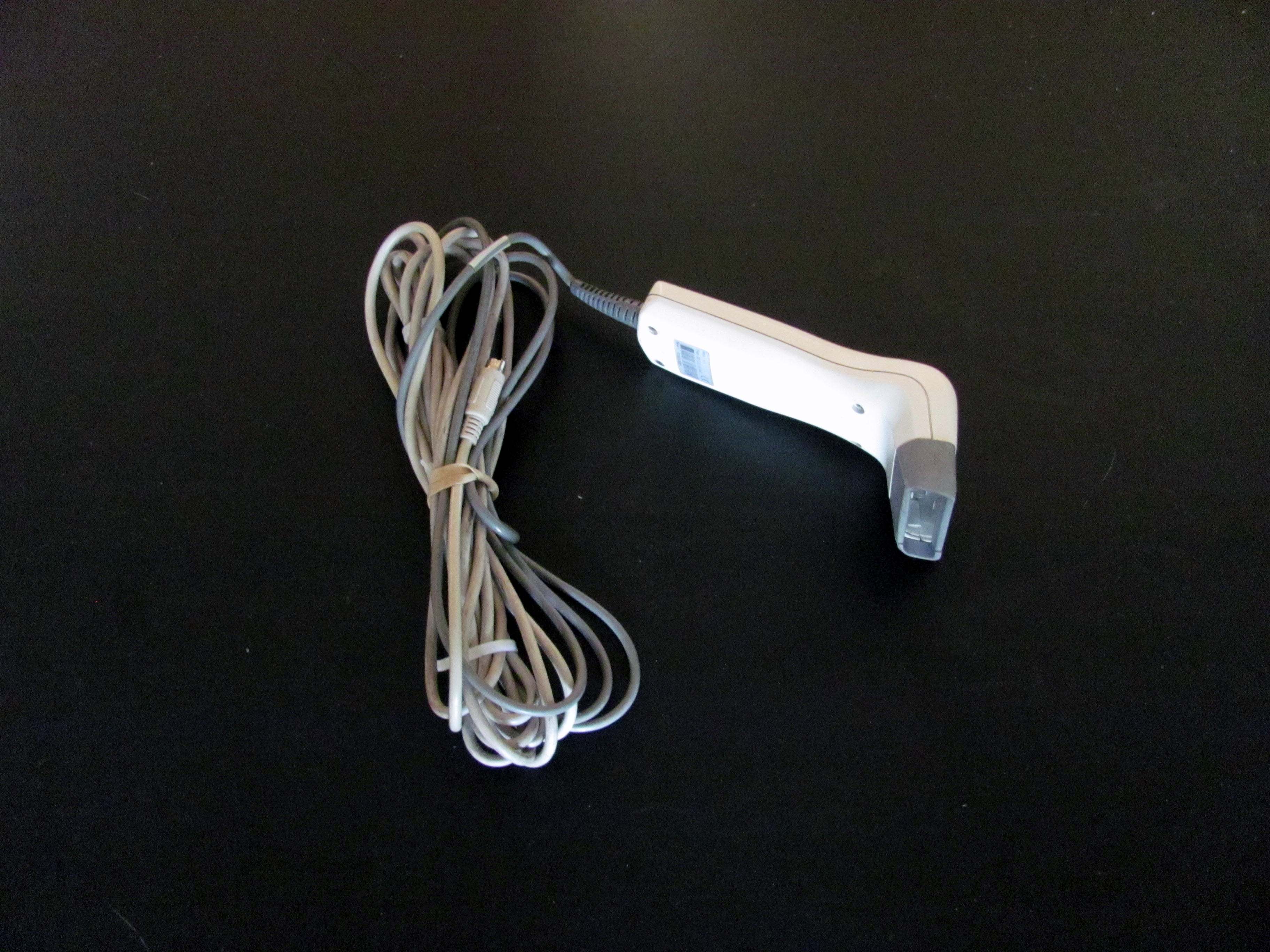

	Type	DataLogic Barcode Scanner
	Model	unknown
	12NC	not applicable
	Serial	not listed

CD-i Emulators

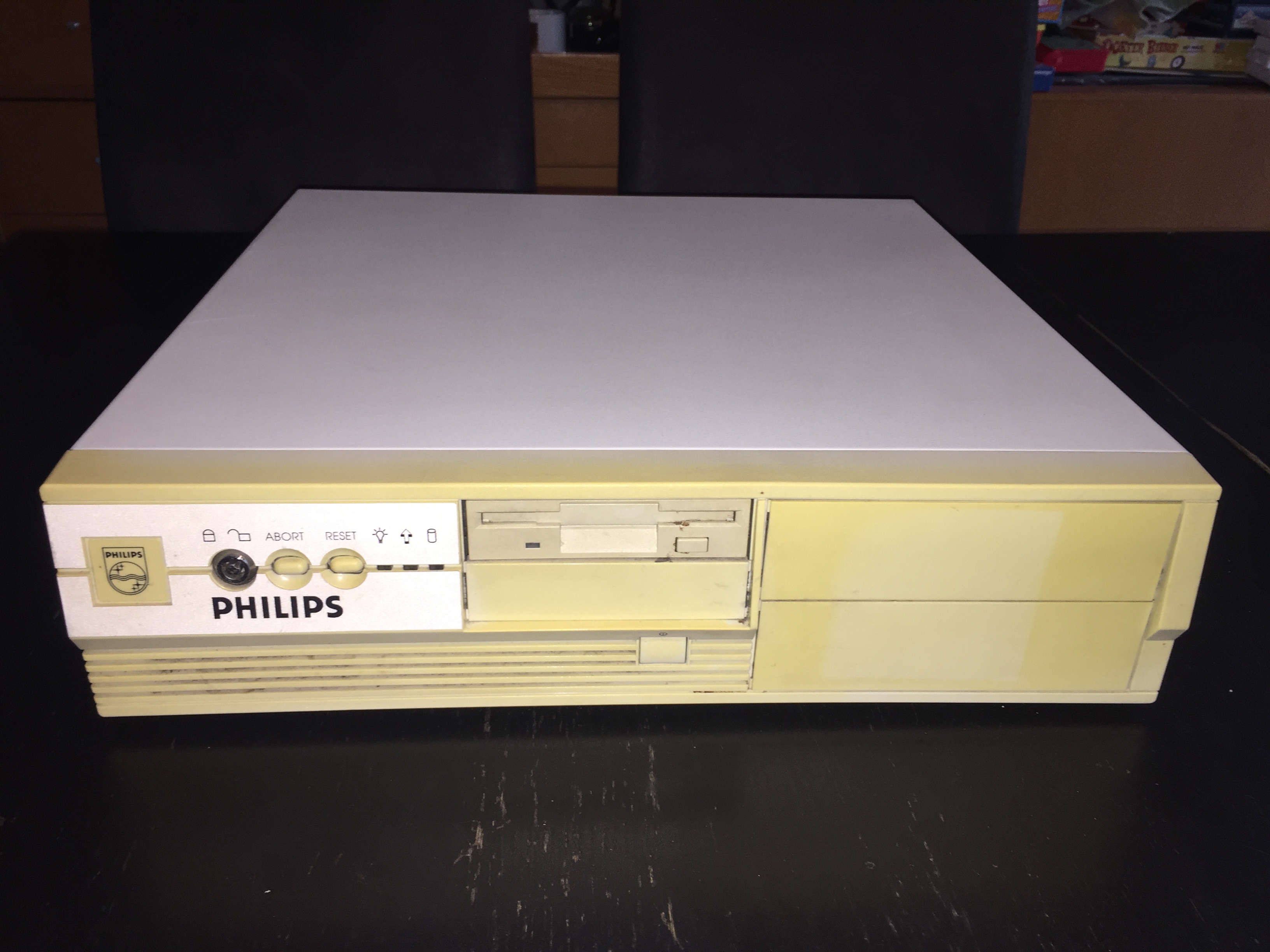

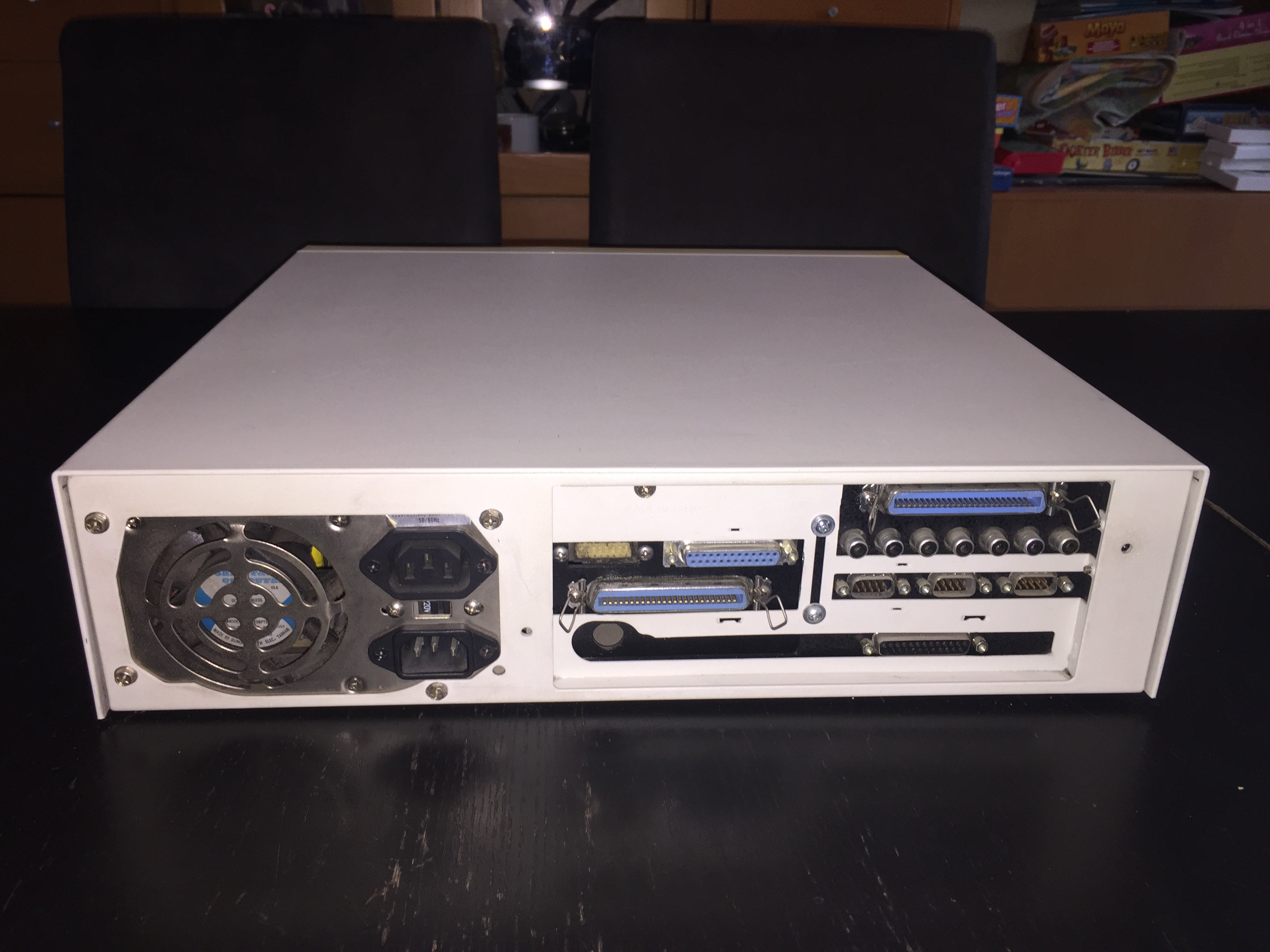

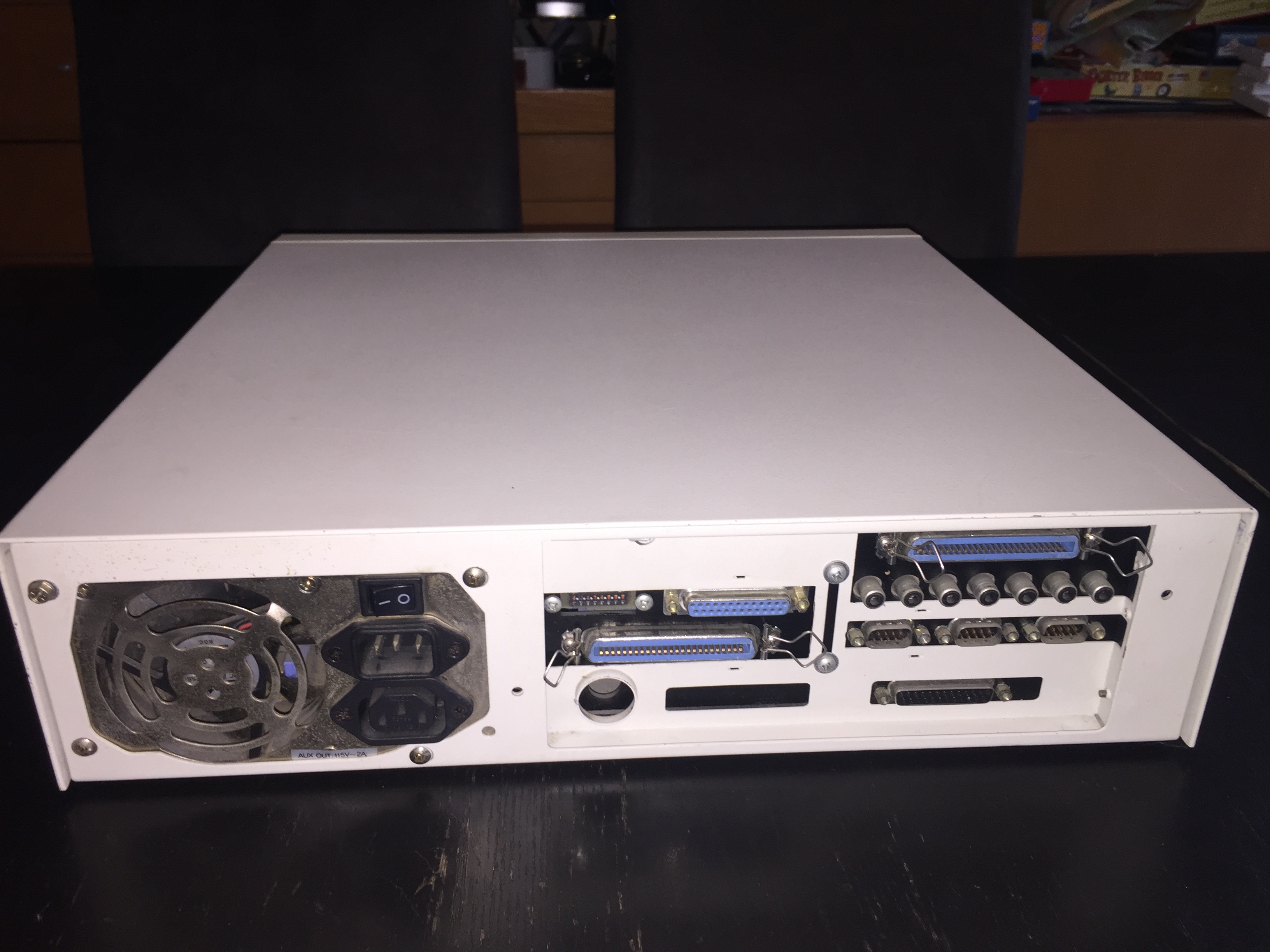

	Type	E1 Emulator
	Model	E1
	12NC	not listed
	Serial	unknown
	Notes	With ST41650N HD (1415MB)

	Type	E1 Emulator
	Model	E1
	12NC	not listed
	Serial	unknown
	Notes	With ST41200N HD (1050MB)

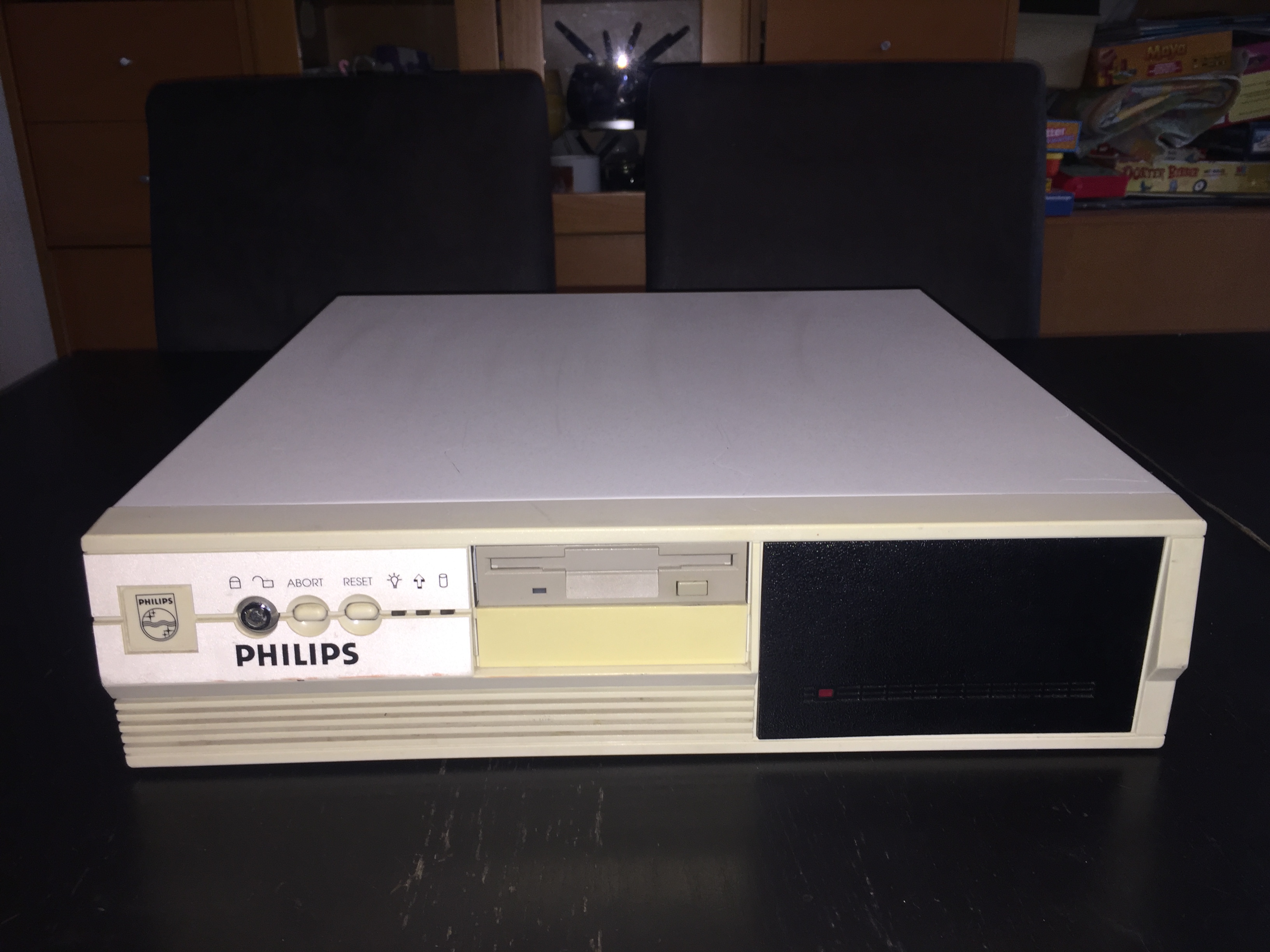

	Type	E2 Emulator
	Model	E2
	12NC	not listed
	Serial	00183
	Notes	No HD, CD Recorder interface

	Type	E2 Emulator
	Model	E2
	12NC	not listed
	Serial	00185
	Notes	No HD
